17. POWER / PROTECT LED
1. When illuminated Green, indicates normal operation. Amplifier is powered on with no
faults detected.
2. When illuminated Red, indicates the amplifier is in protection mode / fault state.
See troubleshooting section on page 10.
CUSTOM INSERT
Supplied with your Performance series
amplifier is a custom insert panel created
from polycarbonate plastic. If replacing
your insert with a customised design, en-
sure you replace with a similar material.
Dimensions: Each insert is 1mm
(0-116”) thick and 62mm (2-7/16”)
wide. Insert lenths are shown below:
PF-1802 = 183mm (7-3/16”),
PF-4001D = 173mm (6-13/16”), PF-4004 = 323mm (12-11/16”),
PF-8001D & PF-8003D = 243mm (9-9/16”).

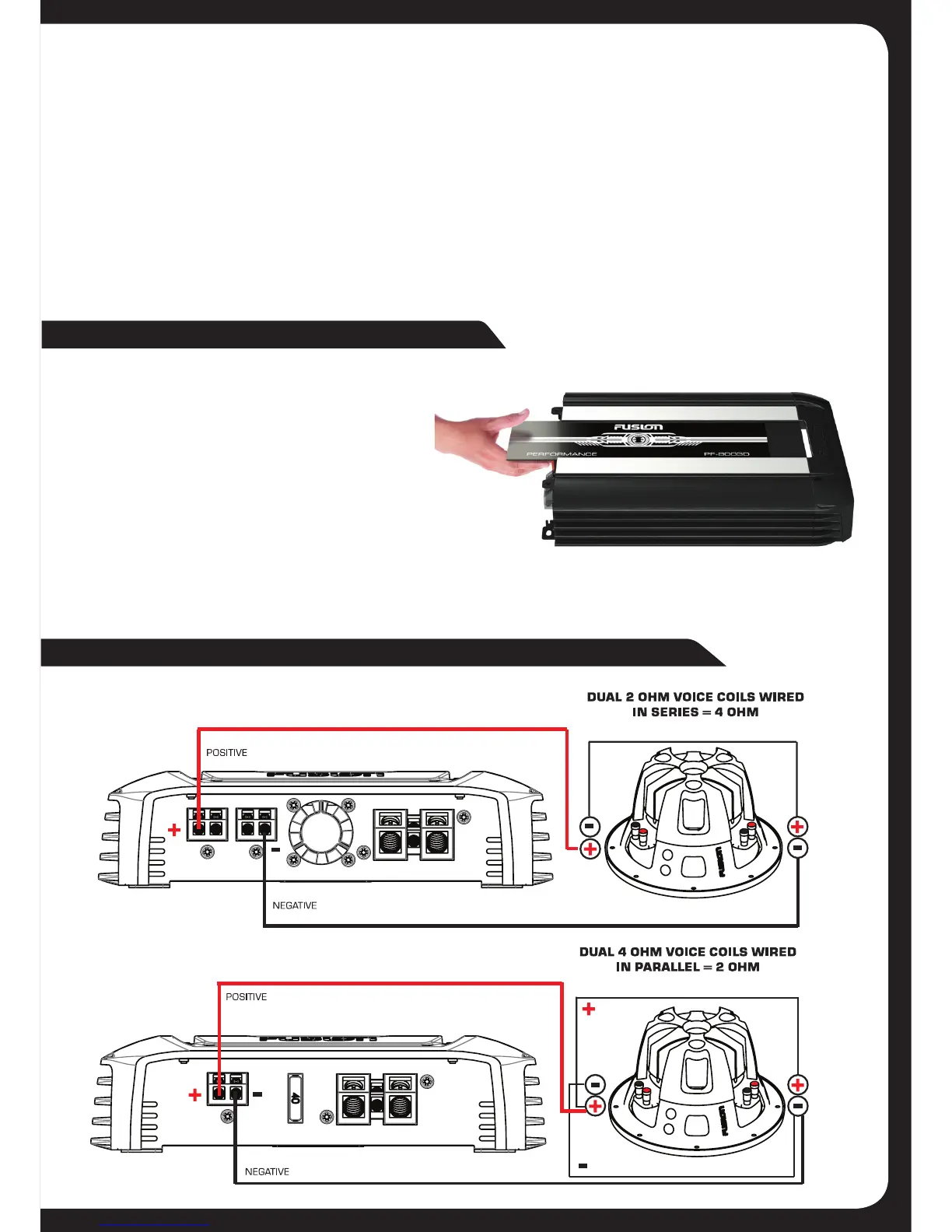

SUBWOOFER CONNECTION DIAGRAMS
