Fusion PF-4004 User Manual

1010
PUBLISHED BY FUSION ELECTRONICS LIMITED: © Copyright 2013 by FUSION Electronics Limited.
All rights reserved. Specifications and design are subject to change without notice.
YOU CAN HELP PROTECT THE ENVIRONMENT! Please remember to respect the local
regulations: Hand in the non-working electrical equipment to an appropriate waste disposal
center.

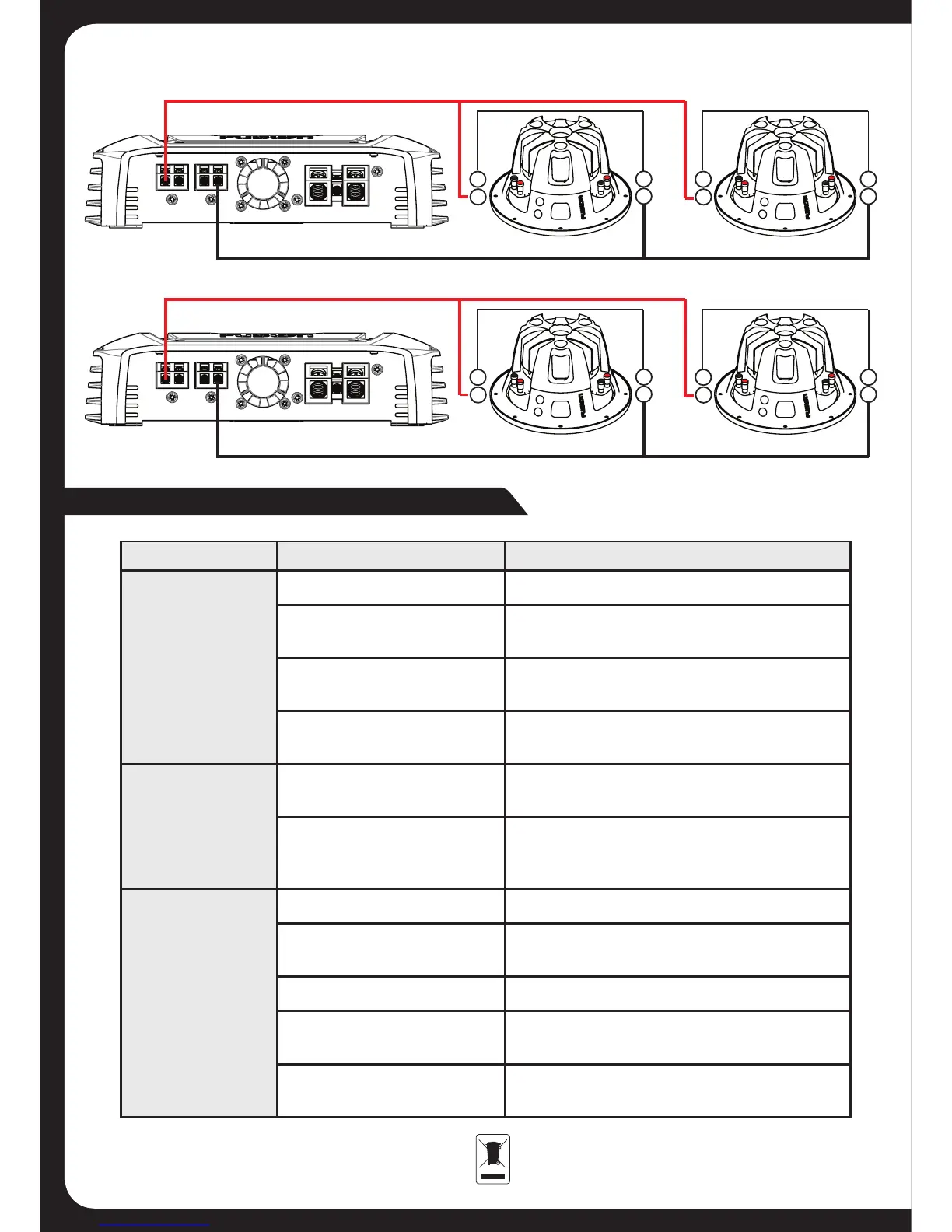

TROUBLESHOOTING
PROBLEM POSSIBLE REASON SOLUTION
Amplifier not
switching on. LED
= OFF
(not ‘Red or
Green’)
• No +12V to power wire • Check fuses and connections to battery
• No power to remote wire • Check Remote Turn ON connection(s) to
head unit
• Fuse broken • Replace fuse with correct type and
amperage
• No Ground connection • Check ground cable is correctly connected
to the amplifier and vehicle / body chassis
Amplifier not
working, status
LED = Red
• Amplifier too hot • Move amplifier to vented area
• Turn head unit down
• Speaker wires shorted • Check that there are no speaker wires
shorted to another wire or to the vehicle
chassis
No sound
LED = Green
• RCA Signal • Check RCA connection to head unit
• Gain control not set up • Ensure you have set up the amplifier gain
level control
• Head Unit • Check head unit volume level
• Amplifier • Check all power, remote on and ground
connections
• Speakers • Check speakers are correctly connected.
• Check speakers for wire shorts
+
-
+
-
DUAL 4 OHM
POSITIVE
NEGATIVE
+
-
+
-
NEGATIVE
POSITIVE
+
-
DUAL 2 OHM VOICE COILS WIRED
IN SERIES = 4 OHM
+
-
+
-
DUAL 2 OHM VOICE COILS WIRED
IN SERIES = 4 OHM
2 X 4 OHM CONFIGURATION
WOOFERS IN PARALLEL = 2 OHM
+
-
+
-
+
-
+
-
POSITIVE
NEGATIVE
+
-
DUAL 4 OHM VOICE COILS WIRED
IN SERIES = 8 OHM
+
-
+
-
DUAL 4 OHM VOICE COILS WIRED
IN SERIES = 8 OHM
2 X 8 OHM CONFIGURATION
WOOFERS IN PARALLEL = 4 OHM
+
-
