Press
Press
Press
Press
Select
"
SW/DIAL"
(HOME screen)
(MENU 1 screen)
(SW/DIAL screen)
(MENU 2 screen)
65
Function
Function Select Trim Dial “TRIM DIAL”
*Function selection
*Step amount setting
*Direction of operation setting

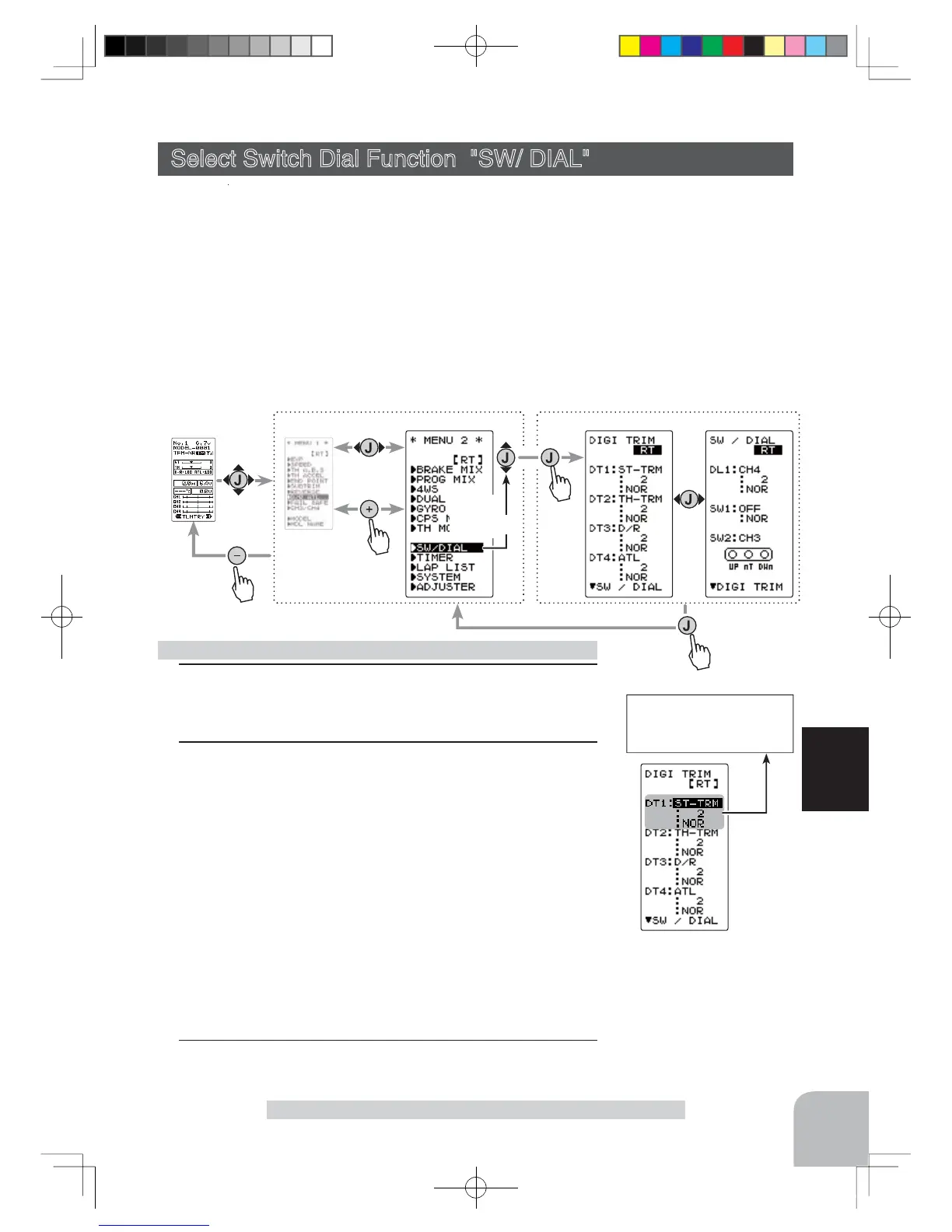

Select Switch Dial Function "SW/ DIAL"
Selection of the function to be performed by digital trim (DT1, DT2, DT3, DT4) di-
al (DL1) and switch (SW1, SW2).
-
The functions that can be assigned to dial, digital trim and switch are listed on the next page.
- The
dial and digital trim are
step amount can be adjusted. (The relationship between set
value and step amount is shown in the table on the next page.)
- The direction of operation of the servos can be reversed. (NOR/REV)
- SW1 alternate operation (operation which switches between ON and OFF each time the
switch is pressed) is possible.
NOR (Normal) -ON only while pressed, OFF when released.
ALT (Alternate) -Switched between ON and OFF each time pressed.
Display "SW/DIAL" screen by the following method:
1
(Setting dial/trim selection)
Select the dial or trim you want to set by the (JOG) button up
or down operation.
2
(Function setting)
Select the function with the (+) or (-) button.
- Refer to the list on the next page for the abbreviations of the functions.
(Step amount setting)
Select the step amount you want to set by the (JOG) button
up or down operation. Use the (+) or (-) button to set the step
amount.
- Refer to the next page for the relationship between set value and step amount.
(Changing the direction of operation)
Select the Direction of operation you want to set by the (JOG)
button up or down operation. Use the (+) or (-) button to trim/
dial the direction.
3
When ending, return to the MENU1 screen by pressing the
(JOG) button.
Function select dial/trim setting
Adjust button
Adjust with the (+) and (-)
buttons.
- Return to the initial value "2"
by pressing the (+) and (-)
buttons simultaneously for
about 1 second.
4PLS-Eng-08-2-Function-P65-83.indd 65 2013/04/07 12:48:09
