Setup item
<CH3>
MODE : Brake function ON/OFF
RATE : Brake rate
DELY : Delay amount
ABS : ABS. function ON/OFF
<CH4>
MODE : Brake function ON/OFF
RATE : Brake rate
DELY : Delay amount
ABS : ABS. function ON/OFF
<CH2>
DELY : Delay amount
68
Function

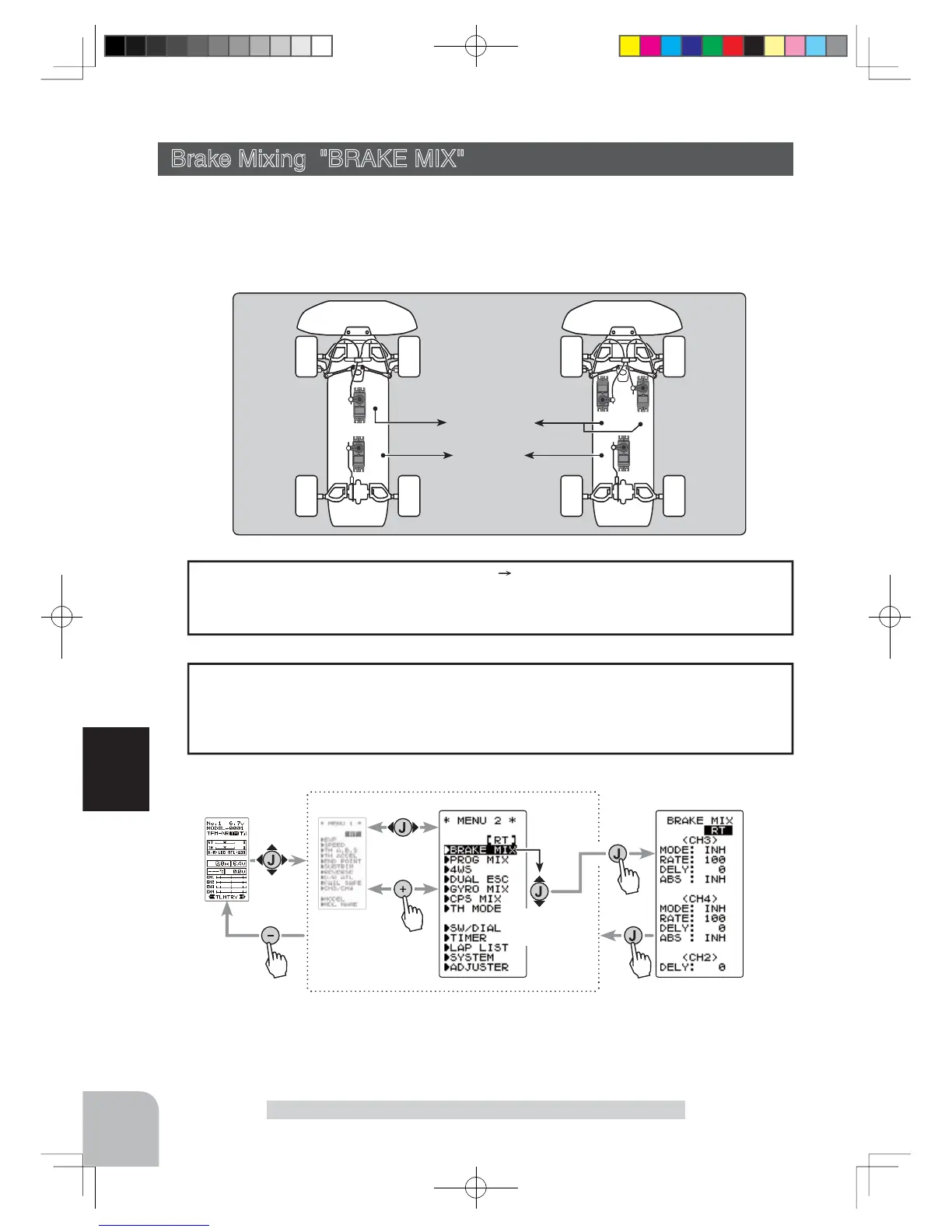

Brake Mixing "BRAKE MIX"
(Throttle, 3rd /4th channel system)
This function is used when the front and rear brakes must be adjusted independently
such as a 1/5 scale GP car. This mixing uses the 2nd CH for the rear brakes and the 3rd
or 4th CH for the front brakes, or controls the front brakes with the 3rd CH and 4th CH
servos, or controls the 2nd CH by independent throttle and controls the rear and front
brakes with the 3rd CH and 4th CH.
-When braking, mixing is applied to 2nd CH
3rd CH, 4th CH.
-3rd CH and 4th CH brake amount, 2nd CH, 3rd CH, and 4th CH brake delay, and 3rd
CH and 4th CH brake ABS can be set.
Operation
The ABS function can be used independently at the CH3 and CH4 sides even when
the CH2 side ABS function is OFF. The amount of pumping speed (CYCL), operation
point (TG.P), and duty ratio (DUTY) can be set in common with the CH2 side ABS
IXQFWLRQ&+DQG&+EUDNHUHWXUQ$%3LV¿[HGDW
CH3/4 brake ABS function
3CH
3CH 4CH
2CH
2CH
or
4CH
Front Brake
Rear Brake
Brake Mixing "BRAKE"
Display "SW/DIAL" screen by the following method:
