R314SB-E Specifications:
(
T-FHSS
system,
S.BUS2
, 4-channel receiver)
• Receiving on 2.4GHz band
• System:
T-FHSS
system
At Normal/High speed mode (auto detection)
•

Receiving Range : 70m (230ft.)(at the best conditions)
•
Power requirement Rated voltage: 4.8V-7.4V / Operating voltage: 4.0-8.4V
• F/S and Battery F/S function:It is set according to the transmitter used.
• Battery F/S voltage: Set it with the transmitter arbitrarily.
• Size: 1.38x0.91x0.49” (35.1x23.2x12.5mm)
• Weight: 0.25oz. (7.0g)
2
5HFHLYHU
+8%
7HPSHUDWXUH
VHQVRU
530VHQVRU
9ROWDJHVHQVRU
7HOHPHWU\VHQVRUV
2SWLRQ
6WHHULQJVHUYR
&+
Collectmanytelemetry
sensorsbyHUBandconnect
themtoS.BUS2port.
6%86
(6&ق0RWRUFRQWUROOHU
&+

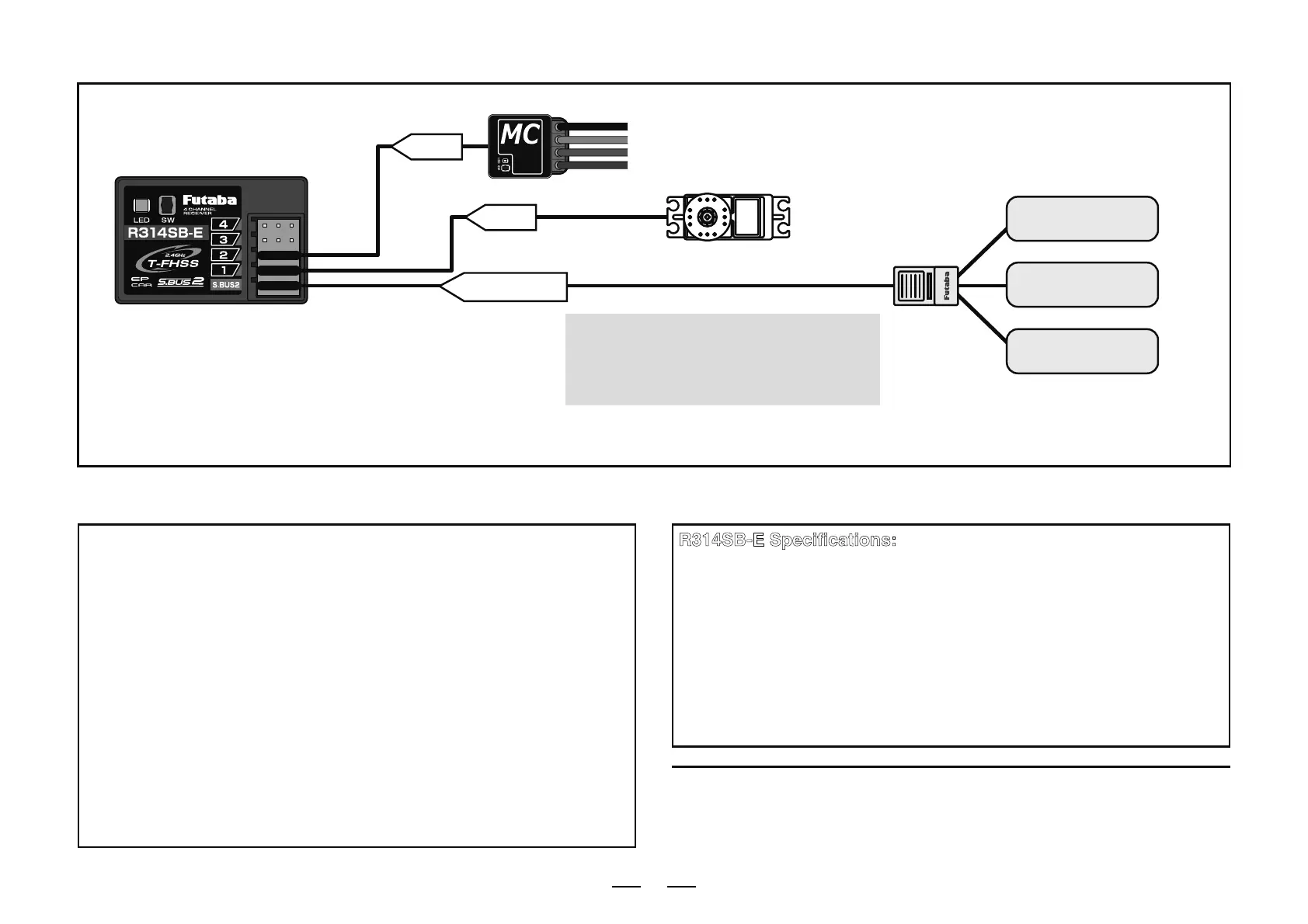

The Example of Connection
ComplianceInformationStatement(forU.S.A.)
This device, trade name Futaba Corporation, model number R314SB-E, complies with part15
of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
CAUTION:
To assure continued FCC compliance:
$Q\ FKDQJHVRU PRGL¿FDWLRQV QRWH[SUHVVO\ DSSURYHG E\WKH JUDQWHH RIWKLV GHYLFH FRXOG
void the user's authority to operate the equipment.
2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
The responsible party of this device compliance is:
Futaba Service Center
3002 N Apollo Drive Suite 1, Champaign, IL 61822 U.S.A.
TEL (217)398-8970 or E-mail: support@futaba-rc.com (Support)
