FUTABA R6208SB User Manual

S.BUS Ser vo Ch ann el Se t t ing M et hod
S.BUS
servo channel setting can be performed at the
R6208SB
receiver.
1

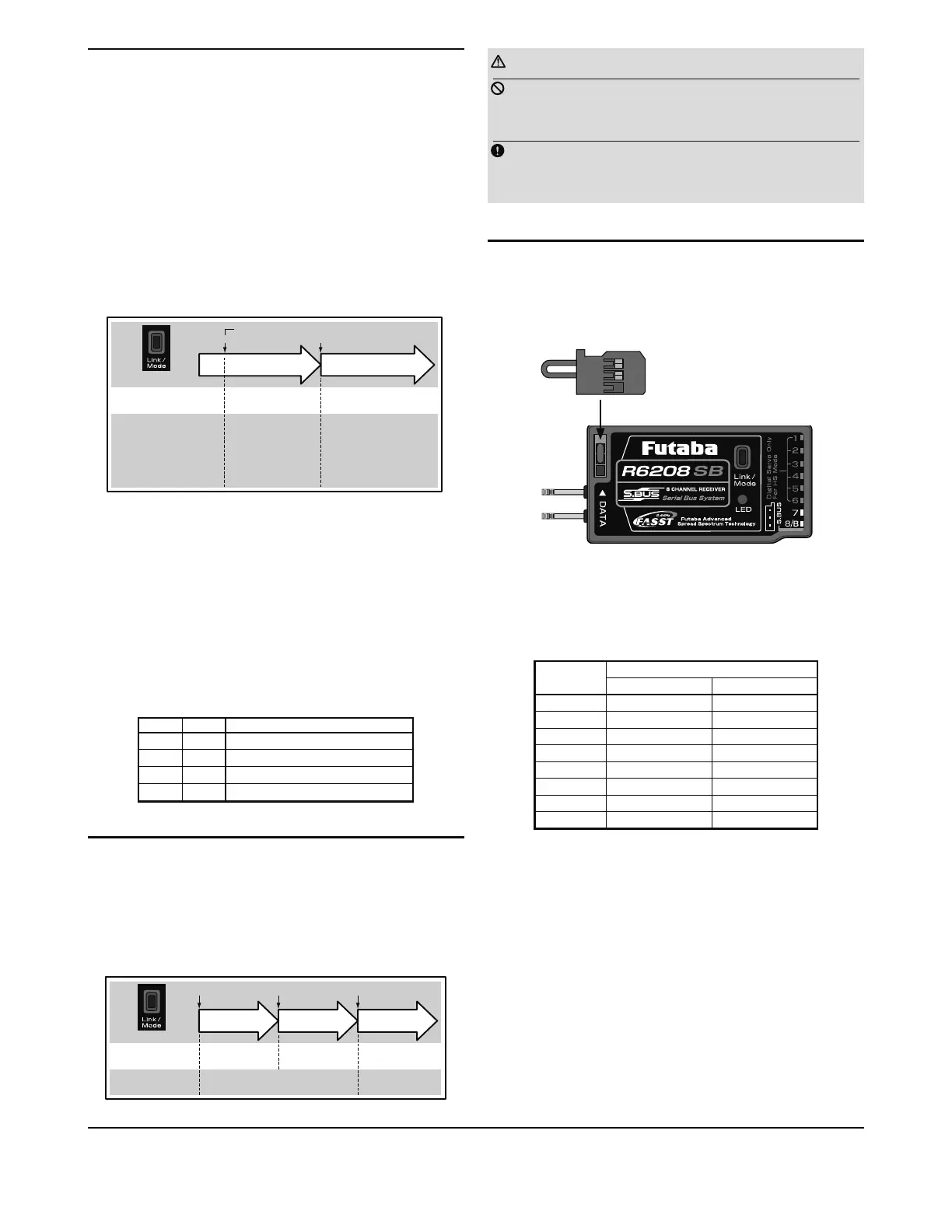

Connect the accessory short-plug to the
DATA
port of
the receiver.
Short-plug
(accessory)
* Connect the short-plug to the DATA port only when an S.BUS servo
channel is set. Normally do not connect the plug.
2
Connect an
S.BUS
servo to the conventional system
output connector(
1
to
8
) corresponding to the channel
you want to set.
Output
connector
Channel setting
Mode A Mode B
1 1 9
2 2 10
3 3 11
4 4 12
5 5 13
6 6 14
7 7 15
8 8 16
* Channel setting mode A (ch1 to 8 setting mode) or channel setting
mode B (ch9 to 16 setting mode) can be set.
3
Turn on the receiver.
* At once when turning on the receiver, the channel setting is com-
pleted in mode A.
(To switch to mode B, press the
Link/Mode
button until
the red and green
LED
starts to blink simultaneously.
The channel setting is completed in mode B.)
* The LED corresponding to the setting mode blinks.
Mode A: Red blinks 3 times
Mode B: Green blinks 3 times
4
Turn off the receiver.
Op er at ion Mod e Se le c t
The operation mode is on "Normal mode" from factory
shipping. When to change the mode, please follow the steps
shown below.
1
Turn off the receiver.
2
Press and hold the
Link/Mode
switch and turn on the
receiver. Keep the switch hold more than one(1)
second. The
LED
starts flashing with the current
status.
3
Release the switch.
4
Turn off the receiver.
By doing this step, the mode can switch over between two(2)
modes.
0 to 1 sec. More than 1 sec.
0 sec. 1 sec.
Press and Hold
Turn on the receiver.
No function
Showing the CURRENT
mode with blink.
Red Blink = Normal
Green/Red Blink =
High Speed
Solid as the mode changed.
Red Solid = Normal
Green/Red Solid = High
Speed
(Become
Red after one (1)
second)
㧔Function㧕
To change the mode between
Normal and High Speed
㧔LED
Status㧕
Please check the operation mode by observing the
LED
when
turning on the receiver. If possible there's no
FASST
transmitter
WXUQHGRQDURXQG\RXLQRUGHUWRPDNH¿UPHUFKHFN
When turn on the receiver, the
LED
will be;
• Red when on "Normal mode"
• Green and Red (makes Orange) when on "High Speed mode".
(After two(2) seconds, change to Red.)
If there are some
FASST
transmitter turned on around the
receiver, the
LED
may show the above status for a brief
moment then changed to the status indication as shown in the
"
LED
indication" table.
LED I n d i c at ion
Green Red Status
Solid Solid Initializing
Off Solid No signal reception
Solid Off Receiving signals
Blink Off Receiving signals but ID is unmatched
Li n k t o t h e t r a ns m it t e r
1
Press and hold the
Link/Mode
switch more than two(2)
seconds.
Re-ad ju st t he F/S p osi t i on (o n l y for T M-8)
1
Press and hold the
Link/Mode
switch between one(1)
and two(2) seconds.
0 to 1 sec. 1 to 2 sec. More than 2 sec.
0 sec. 1 sec. 2 sec.
Press and Hold
No function
With TM-8
(not included in this set)
To set the F/S
position(No re-link)
Re-link(ID set) and to
set the F/S position
No function
Other than TM-8
(not included in this set)
Re-link(ID set)
WARNING
Do not perform the linking procedure with motor's
main wire is connected or the engine is operating as it
may result in serious injury.
While the linking is done, please cycle receiver
power and check if the receiver to be linked is really
under the control by the transmitter to be linked.
FUTABA CORPORATION
oak kandakajicho 8F 3-4 Kandakajicho, Chiyoda-ku, Tokyo 101-0045, Japan TEL: +81-3-4316-4820, FAX: +81-3-4316-4823
©FUTABA CORPORATION 2018, 5 (3)
