FUTABA T26SZ - Page 99

99
ڀ ŪŲŃƗƒŃŷŤťůŨŃŲũŃŦŲűŷŨűŷŶ
ŷƈƏƈƐƈƗƕƜŝŃŹƒƏƗƄƊƈŃžťƄƗƗƈƕƜƀ

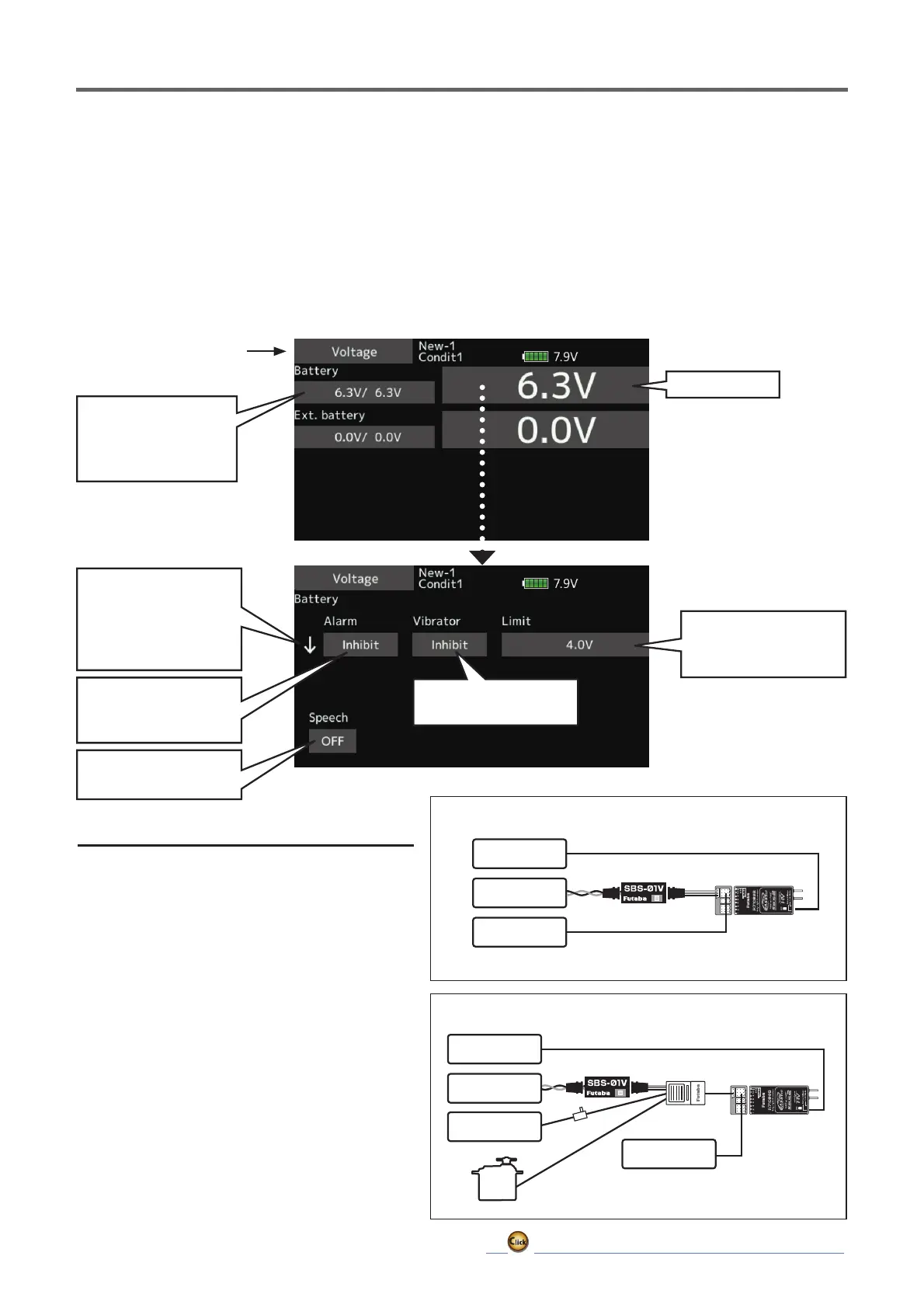

Displaying data from the receiver battery voltage
In this screen, the battery voltage of a receiver is
displayed.
If it becomes higher or lower than the settin, an
alarm and/or vibration will alert you.
Batteryvoltage
Setsthevoltageon
whichthealarm
operates.
↓ The"down"arrowwill
indicatethatanalarm
willsoundwhenthe
voltagedropstobelow
thesetting.
Alarmischosenfrom
Buzzer,Voice,and
Inhibit.
AllowsSpeechtobe
turnedONorOFF.
●
Tap the [Voltage] button in the Telemetry screen to
call the setup screen shown below.
Max.andmin.values
sincethepowerwas
turnedONwilldisplay.
In this screen, the battery voltage is displayed.
In order to use this function, it is necessary to
connect External voltage connector of R7208SB
(R7308SB)
⇔
SBS-01V
⇔
Battery
SBS-01V measures two batteries. The power
battery connected to two lines is displayed on EXT-
VOLT. The battery for receivers connected to 3P
lines is displayed here.
*SBS-01Vmustbeinstalledintheaircraft.
＜
Two examples of wiring are shown
＞
*Refer to the manual of SBS-01V for the details of
wiring.
WR6%86
SRUW
WR6%86
SRUW
56%
56%
Drivebattery1
（EXTBattery)
Receiverbattery
Receiverbattery
Drivebattery2
（EXTBattery)
Drivebattery1
（EXTBattery)
Drivebattery2
（EXTBattery)
6ZLWFK
Powersupplies
forservos
$QRWKHUSRZHU
VXSSO\+XE
S.BUS2
servos
Twodrivebatteriesaremeasured(R7108SBuse)
Twodrivebatteriesandpowersuppliesforservosaremeasured(R7108SBuse)
●Batteryvoltagemeasurementforreceivers[R7108SBuse]
●Thedrivebattery1ismeasuredinanEXTport[R7108SBuse]
●Thedrivebattery2ismeasuredinanEXTline[SBS-01Vuse]
●Batteryvoltagemeasurementforreceivers[R7108SBuse]
●Thedrivebattery1ismeasuredinanEXTport[R7108SBuse]
●Thedrivebattery2ismeasuredinanEXTline[SBS-01Vuse]
●Thevoltageforservosismeasuredinapowersupplyline[SBS-01Vuse]
Normal Line
Normal Line
EXT Line
EXT Line
*SBS-01Vmeasurestwovoltage.Onecorrespondstohighvoltages,suchasadrivebattery,
withanEXTline.Anotherisanormallineandismeasurementofthebatteryforreceiversofa
lineconnectedto3Pconnector,orthebatteryforservos.
ŤƏƄƕƐŃƖƈƗŃ
1. Tap Alarm and choose from Buzzer, Voice,
and Inhibit.
2. Choose "Inhibit" for Vibrator if not using the
vibrator alarm. If using vibrator, choose one of
the three types.
3. Tap to the Limit [4.0 V] item.
4. Adjust the rate using the
"▼▼""▼""▲""▲
▲"
buttons.
Initial value: 4.0 V
 $GMXVWPHQWUDQJH9a9
*When the screen is tapped for one second, the rate is
reset to the initial value.
5. To terminate the input and return to the
original state, push the EXIT button.
Vibratorchoicesare
type1-3,andInhibit.
●
