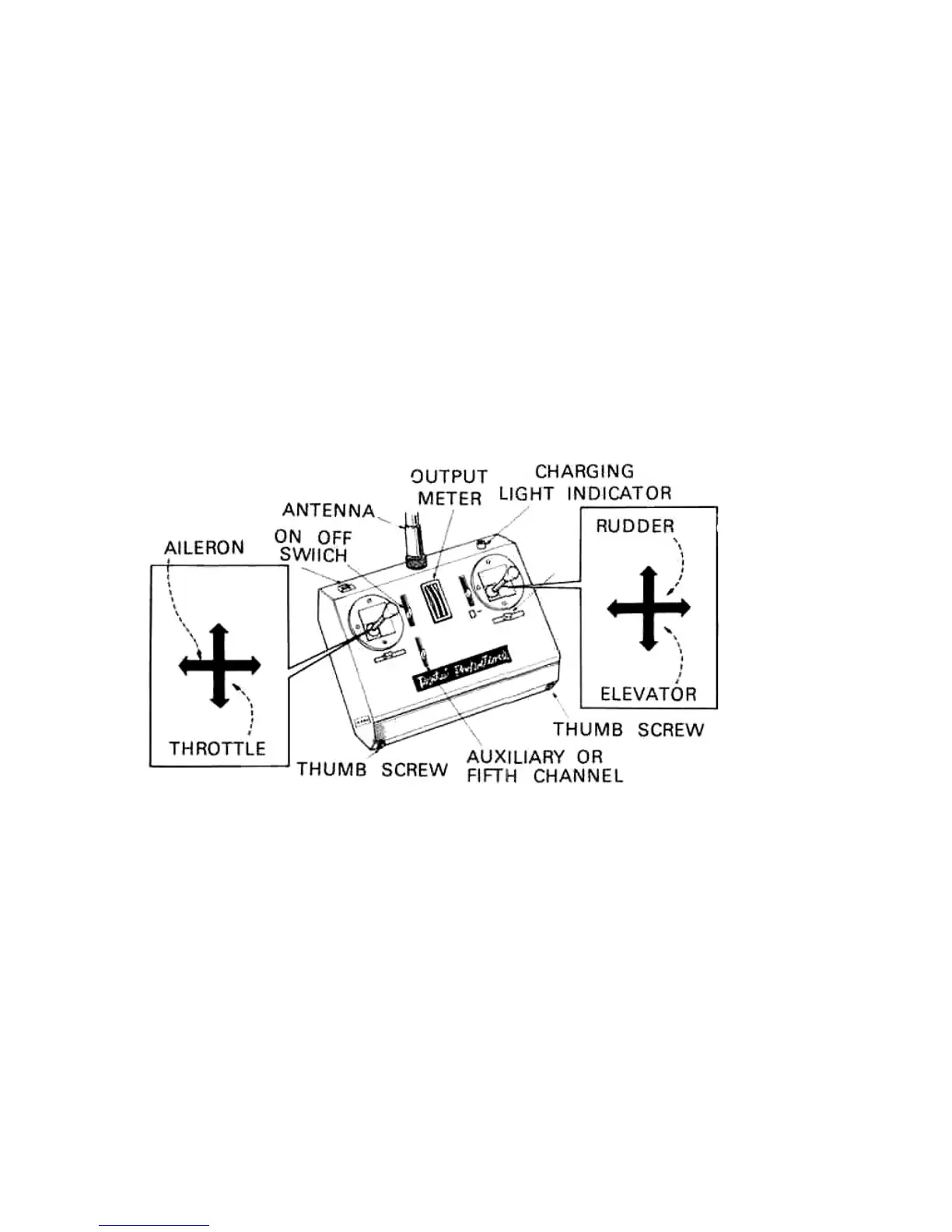

TRANSMITTER:
LOCATED ON FRONT PANEL:
Two control sticks-4 trim levers-one lever for auxiliary (5th) channel
operation-output meter.
TOP PANEL:
On-off switch-Antenna mount-Charging light indicator.
BOTTOM PANEL:
Two thumb screws. Removing these screws allowsacess to battery com-
partment,
SIDE PANNE L:
Left side contains battery charging connectors.
THE CONTROLS PROVIDE THE FOLLOWING FUNCTIONS:
The left hand control stick operate throttle and aileron. To the right
of this stick is a trim lever which controls the idle position of the
throttle servo. Directly below the stick is the trim lever for aileron.
The right hand control stick operates rudder and elevator. The trim
lever located to the left of this stick control the neutral position of
the servo which is activated by moving the stick vertically. The trim
lever located directly below the right control stick is used to control
the neutral position of the servo that is activated by moving the stick
horizontally. The auxiliary or 5th channel is controlled by the lever
located Just below and to the left of the output meter. See diagram a-
bove. Each of the four main controls is trimmable by the four trim le-
