This set uses the S.BUS/S.BUS2 system. The wiring is as simplified and clean mounting as
 
quickly installed to the fuselage without any extraneous wiring by the use of only one simple





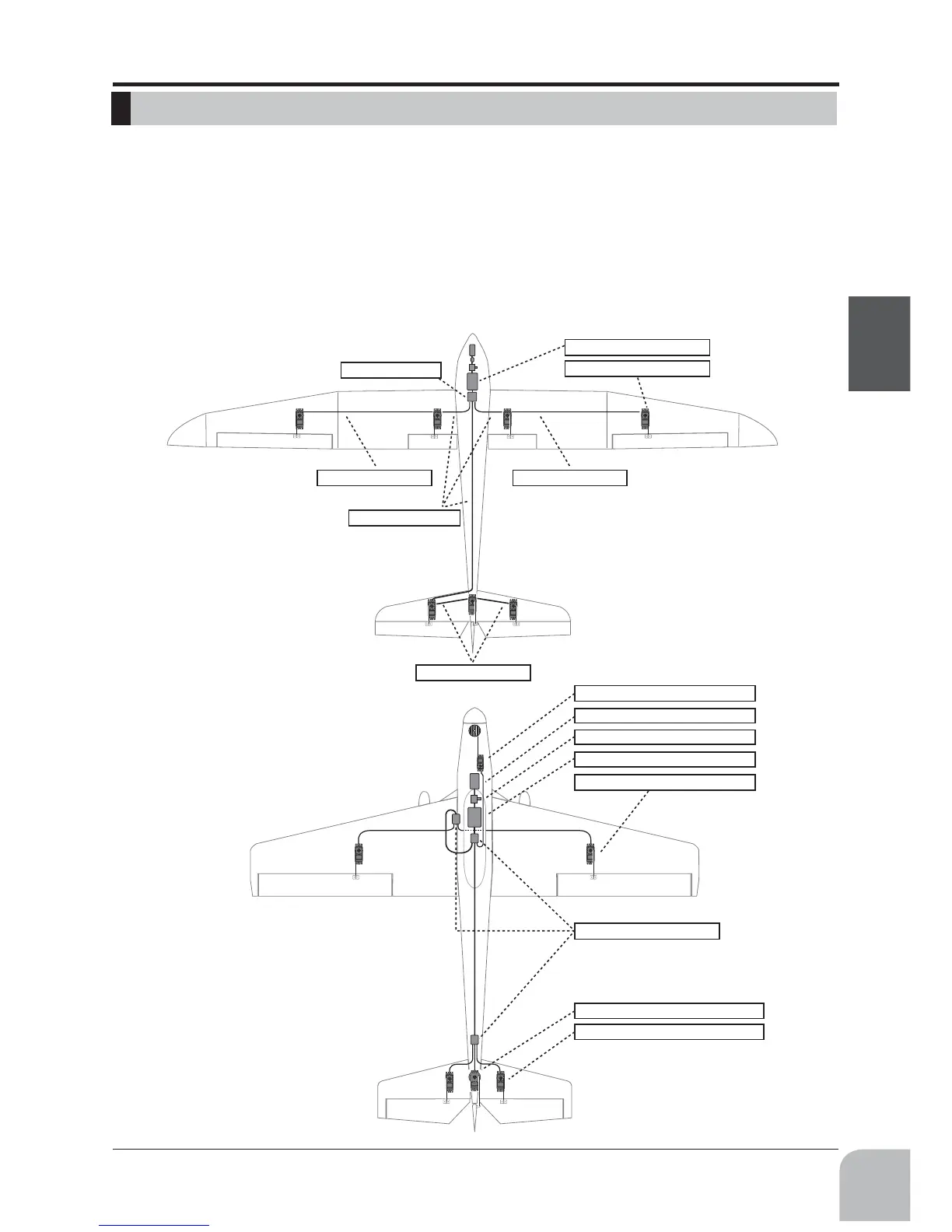

S.BUS Gliderusageexample
S.BUSAerobaticplaneusageexample
Receiver:R3006SB
Battery:FR2F1800(Optional)
Switch:HSW-L
Throttleservo:BLS173SV(Optional)
Aileronservo:BLS174SV×2(Optional)
Elevatorservo:BLS173SVi×2(Optional)
RudderServo:BLS175SV×1(Optional)
HUB×3(Optional)

Receiver:R3006SB
Servo:S3173SVi×7(Optional)
iConnector(Optional)
i-iConnector(Optional) i-iConnector(Optional)
i-iConnector(Optional)
HUB×1(Optional)
*i-iConnectormakesS.BUSconnection
ofSViservotoSViservo.
*iConnectormakesS.BUS
connectionofSViservotoreceiver.
