Future light CF-200 Lighting effect - Overview

51837540X18NXS_V_1_1.DOC
20/54
Overview
Future
light
R
CF-200
8
8
88
UpDown
Mode
Control Board

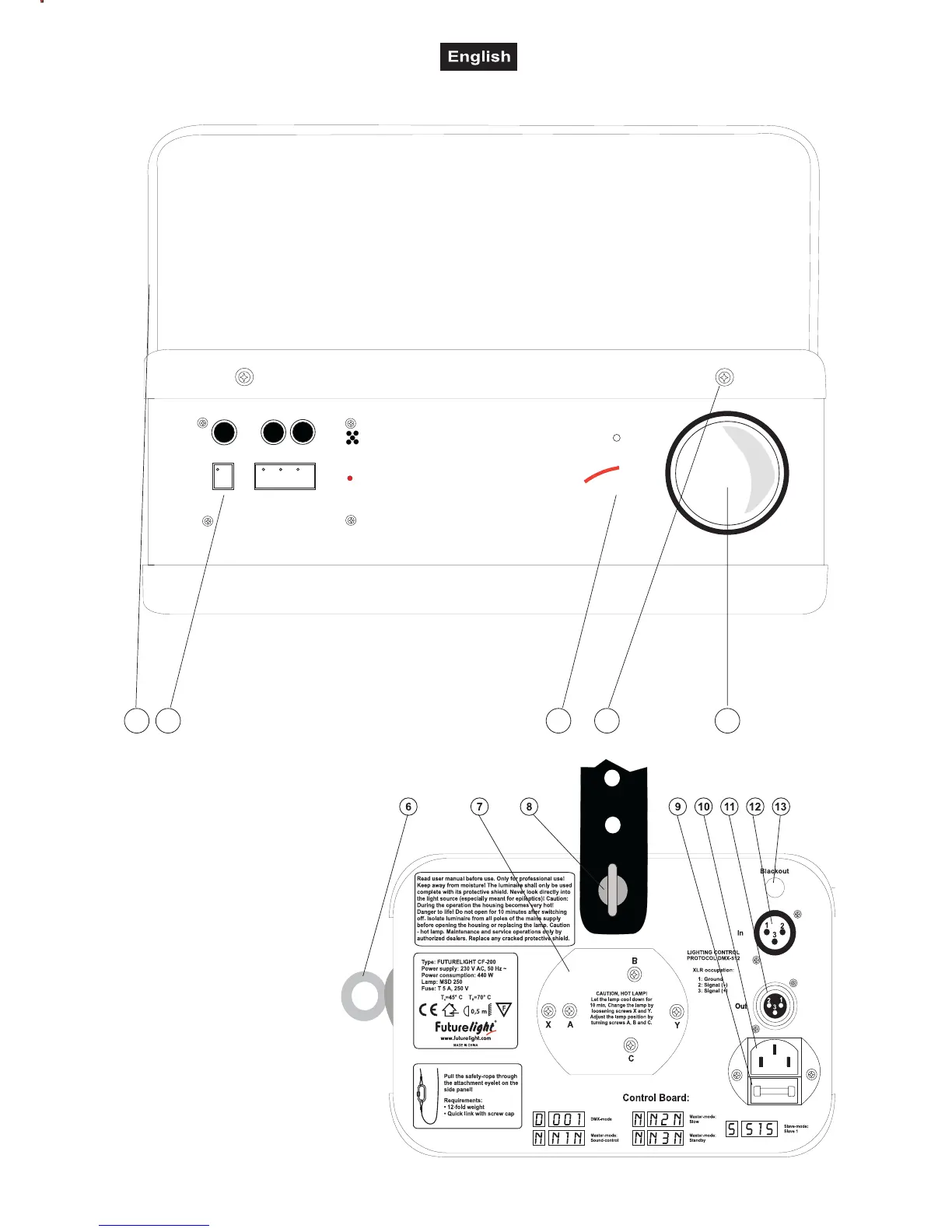

1 2 53 4
(1) Mounting bracket
(2) Control Board
(3) Housing cover
(4) Housing screws
(5) Objective-lens/Focus
(6) Safety eyelet
(7) Lamp system
(8) Fixation screw
(9) Fuseholder
(10) Power supply
(11) DMX-Out socket
(12) DMX-In socket
(13) Blackout-socket
