39
DMX-Protocol
Function of the control channels - 16 bit protocol

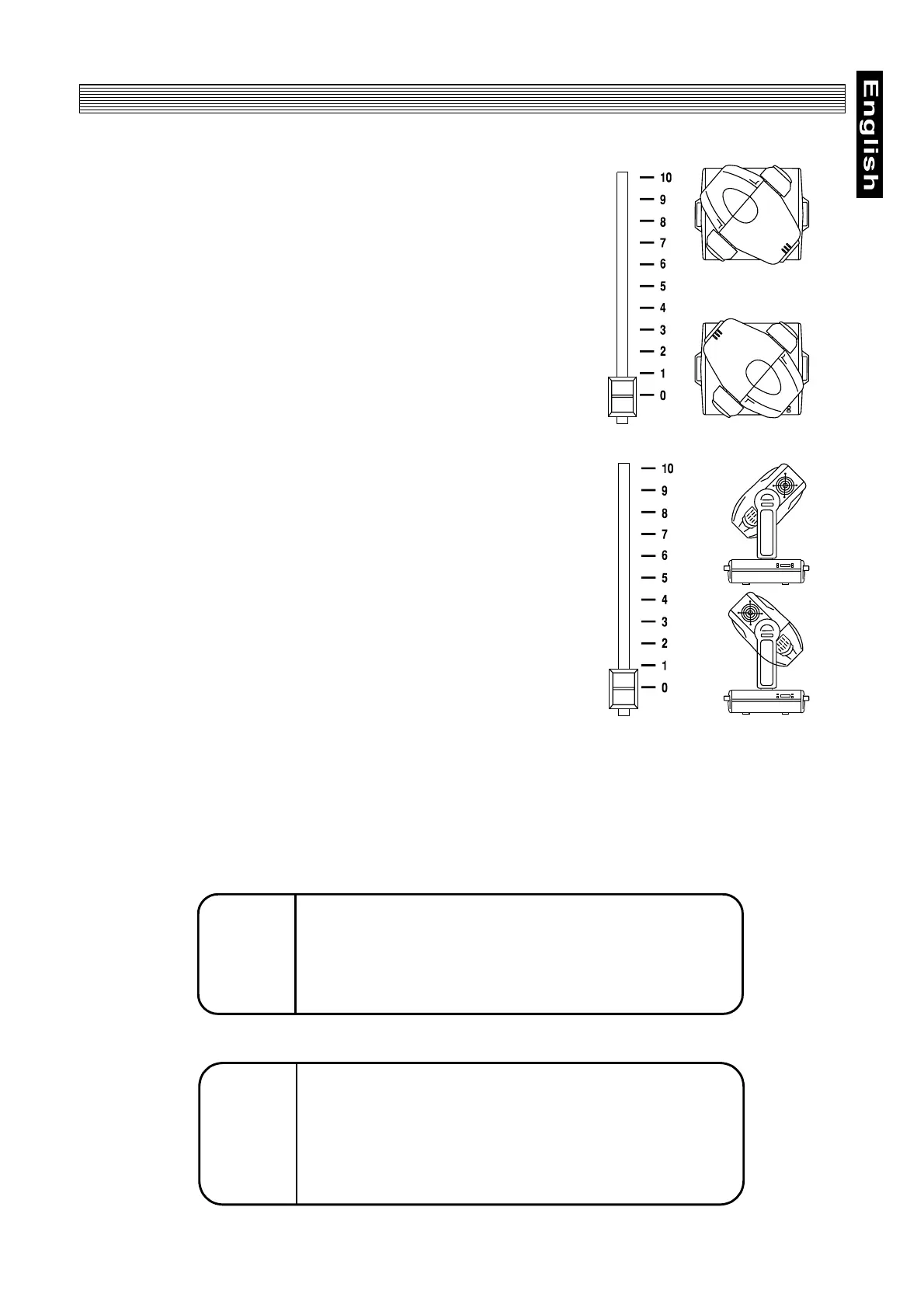

Channel 1 - Horizontal movement (Pan)
Push slider up in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the
other (0-255, 128-center). The head can be turned by 530°
and stopped at any position you wish.
Channel 2 - Vertical movement (Tilt)
Push slider up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the
other (0-255, 128-center). The head can be turned by 280°
and stopped at any position you wish.
Channel 3 - Pan fine 16 bit
Channel 4 - Tilt fine 16 bit
Channel 5 - Speed of PAN / TILT movement
0 Max speed (tracking mode)
1 Max speed (vector mode)
249 Min. speed (vector mode)
250-252 Max. speed (tracking mode), black-out color or gobo changes
253-255 Max. speed (tracking mode), black-out while PAN,
TILT moving or color gobo changes
Channel 6 - Switch on / off the lamp, reset, speed control of cooling fan
0 Open, max. speed of fan
127 Open, min. speed of fan (silent operation) from 0 to 127
- decreasing speed of fan
128 - 139 Switch on the lamp, reset, open position
140 - 239 No function
230 - 239 Switch off the lamp after 3 seconds
240 - 255 No function
