35

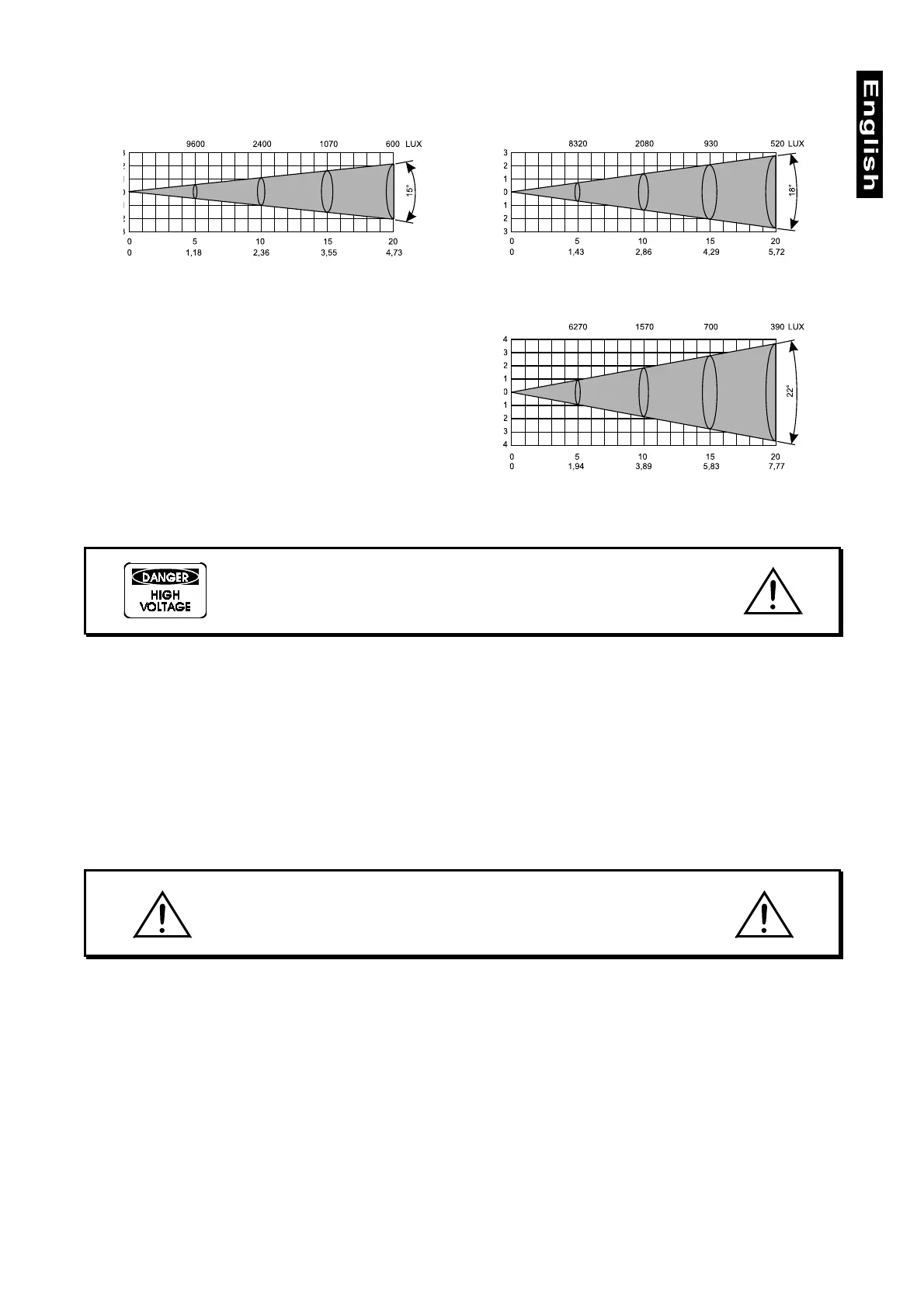

Beampath
Inserting/Exchanging gobos
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before!
To insert the gobos open the top cover of the head by loosening the 4 Phillips screws on the front and rear
sides of the top cover.
If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged, please
follow the instructions below:
Static gobo-wheel:
Carefully press the gobo out of the fixation. Make sure that you do not damage the clamps.
Rotating gobo-wheel:
CAUTION!
Never unscrew the screws of the rotating gobo
as the ball bearing will otherwise be opened!
Remove the fixation-ring with an appropriate tool. Remove the gobo and insert the new gobo. Press the
fixation-ring together and insert it in front of the gobo.
15° radiation an
