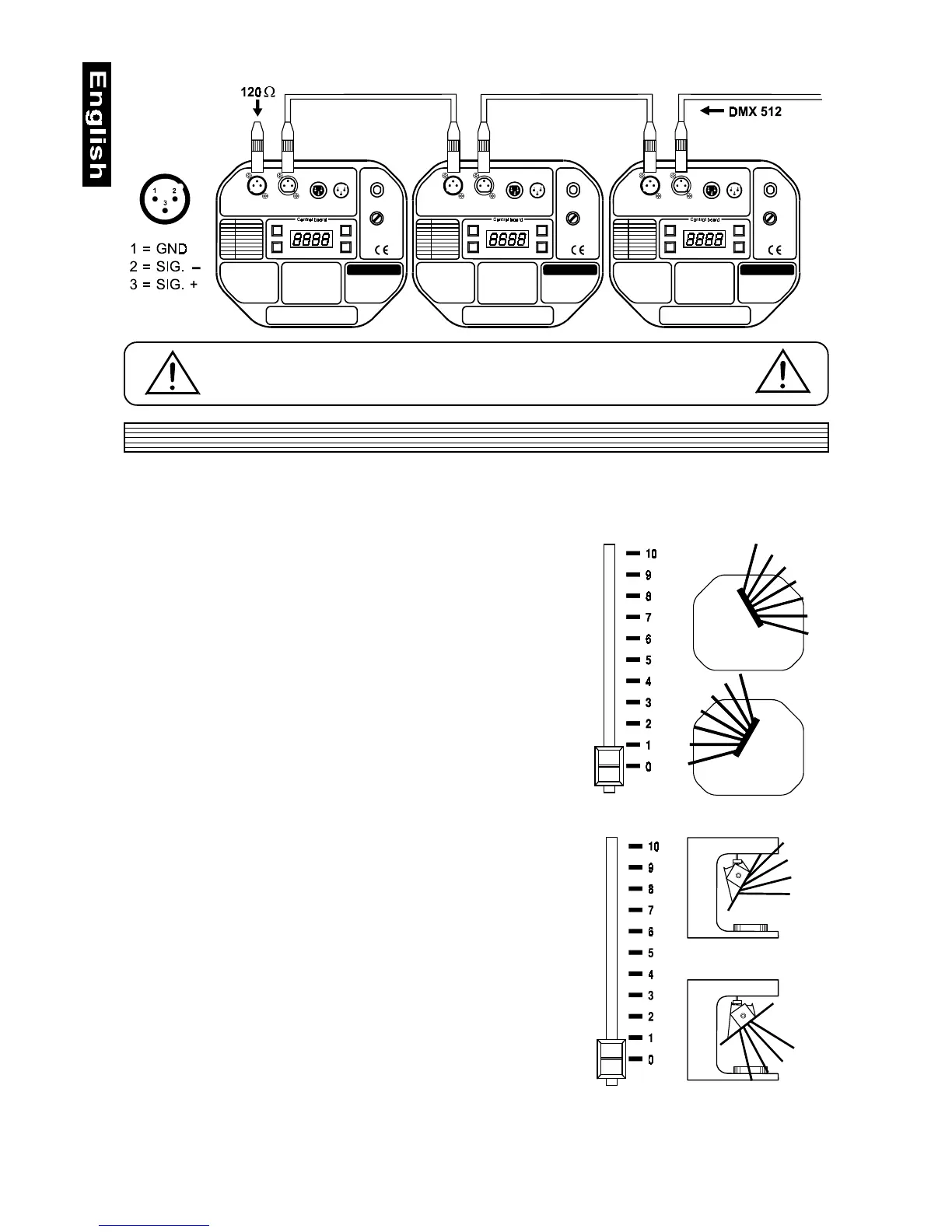

The wires must not come into contact with each other, otherwise
the projectors will not work at all, or will not work properly.
4. Setup
4.1 Function of the control channels - 16 bit protocol
4.1.1 Channel 1 - Pan
Push slider up in order to move mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other
(0-255, 128-center). The mirror can be stopped at any position
you wish.
4.1.2 Channel 2 - Tilt
Push slider up in order to move mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other
(0-255, 128-center). The mirror can be stopped at any position
you wish.
4.1.3 Channel 3 - Pan fine 16bit
4.1.4 Channel 4 - Tilt fine 16bit
