30
DMX Calibration protocol:
After having calibrated required functions press [Enter] to confirm (or [Mode] to cancel and return to the menu
without reset by the "ArES" function) and use the "ArES" function in order to write the calibration values to the
memory (EEPROM) and to make a reset in order to check the new adjusted positions of the colour, gobo,
effect and rot. gobo wheels and gobo indexing.

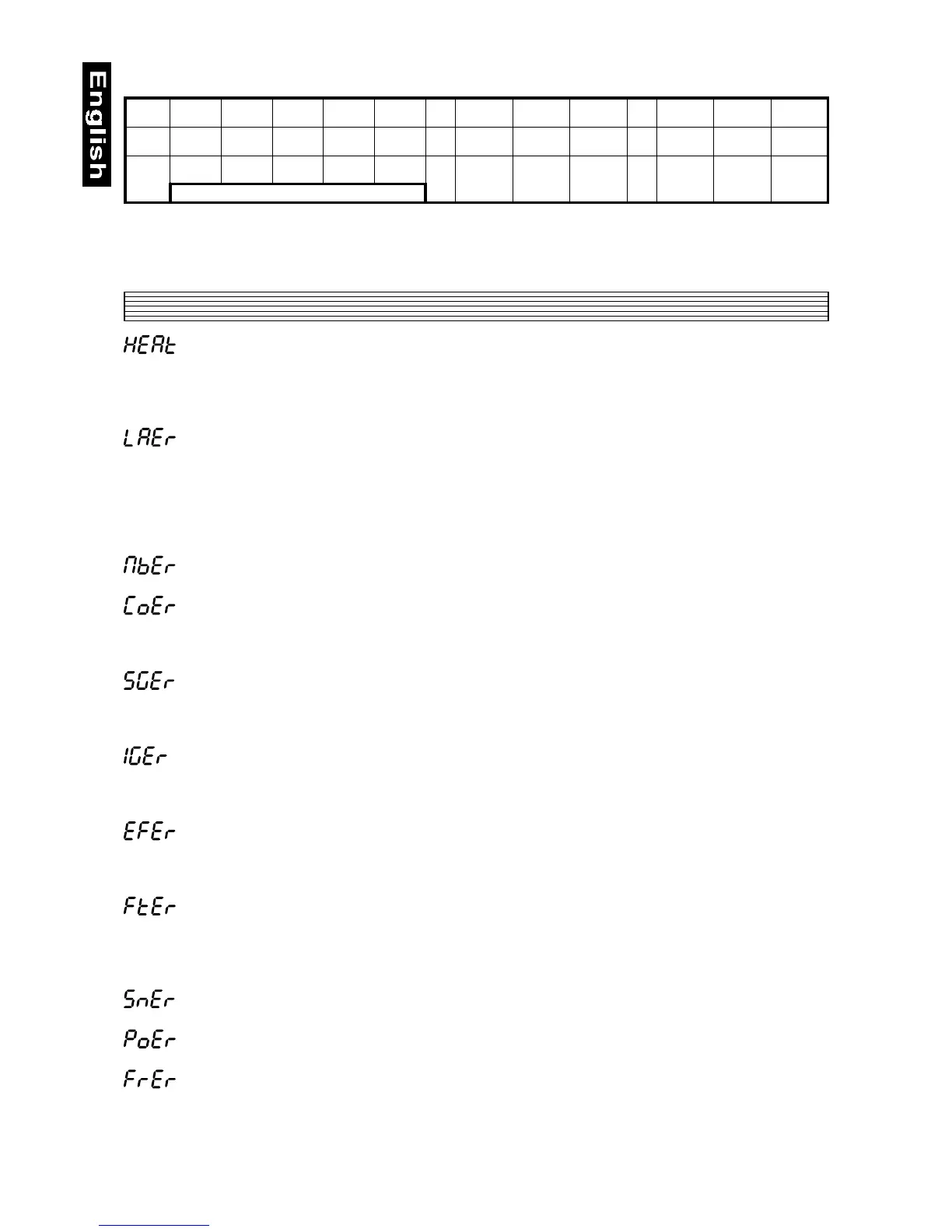

8. Error and Information messages
This message appears if you try to switch On the lamp within 5 minutes after having switched it Off (the
lamp is too hot). The message will come at the display if the lamp doesn´t ignite within 20 seconds. The SC-740
will store this information and automatically ignite the lamp when the 5 minutes period has expired.
The ignition of the lamp is seven times unsuccessful (six times were appeared HEAt (message before), on the
display will appear "LAEr", meaning that the lamp could be damaged or even missed, the fixture is overheating
(can be occured if the ambient temperature is 55°C or more) or there could be a failure on the ignitor or ballast.
Please place or replace the lamp, check the ambient temperature or if the situation was not caused by the lamp
please, contact your dealer.
This messsage inform you that the main PCB does not communicate correctly with the control board.
(color wheel error) This messsage will appear after the reset of the fixture if the magnetic-indexing circuit
malfunctions (sensor failed or magnet missing) or the stepper motor is failed (or its driver circuit on the main
PCB). The color wheel is not after the reset in the default position.
(static gobo wheel error) This messsage will appear after the reset of the fixture if the magnetic-indexing circuit
malfunctions (sensor failed or magnet missing) or the stepper motor is failed (or its driver circuit on the main
PCB). The static gobo wheel is not after the reset in the default position.
(rotating gobo indexing error) This messsage will appear after the reset of the fixture if the magnetic-indexing
circuit malfunctions (sensor failed or magnet missing) or the stepper motor is failed (or its driver circuit on the
main PCB). The rotating gobo is not after the reset in the default position.
(effect wheel error) This messsage will appear after the reset of the fixture if the magnetic-indexing circuit
malfunctions (sensor failed or magnet missing) or the stepper motor is failed (or its driver circuit on the main
PCB). The effect wheel is not after the reset in the default position.
This error message inform you that the fixture was overheating (occured if the ambient temperature is 55°C or
more) and that the relay switched Off the lamp. This message will shine on the display until the temperature will
be on the suitable level, then on the display will appear the HEAt message meaning the lamp is too hot.
(explanation see above).
This message appears if the lamp lighting sensor is failed. Please, contact your dealer.
This message will appear if the fixture was shortly disconnect from the main.
It will appear if the frequency of the main is not standard 50 or 60Hz.
DMX
Channel
1 2 3 4 5 6 7 8 9 10 11 12 13
Function
COL. SGOB. EFEC. RGOB ROTG - COLOURS
GOBOS
STROBO
EFFECT -
ROTATING
GOBOS
GOBO
ROTATION
IRIS
CALIBRAT.
0 - 255
CALIBRAT.
0 - 255
CALIBRAT.
0 - 255
CALIBRAT.
0 - 255
CALIBRAT.
0 - 255
-
STANDARD
PROTOCOL
STANDARD
PROTOCOL
STANDARD
PROTOCOL
-
STANDARD
PROTOCOL
STANDARD
PROTOCOL
STANDARD
PROTOCOL
SMOOTH MICROSTEP MOVEMENT
