Settings of boiler temperature are made individually in dependence of heating space, where
it’s used and user demand of warmth as well .
Automatics is the integral part of Heating Boiler FUWI on Pellets, before starting device,
service instruction of Controller of Boiler Work "Control M RS 420 ” has to be learned
carefully.

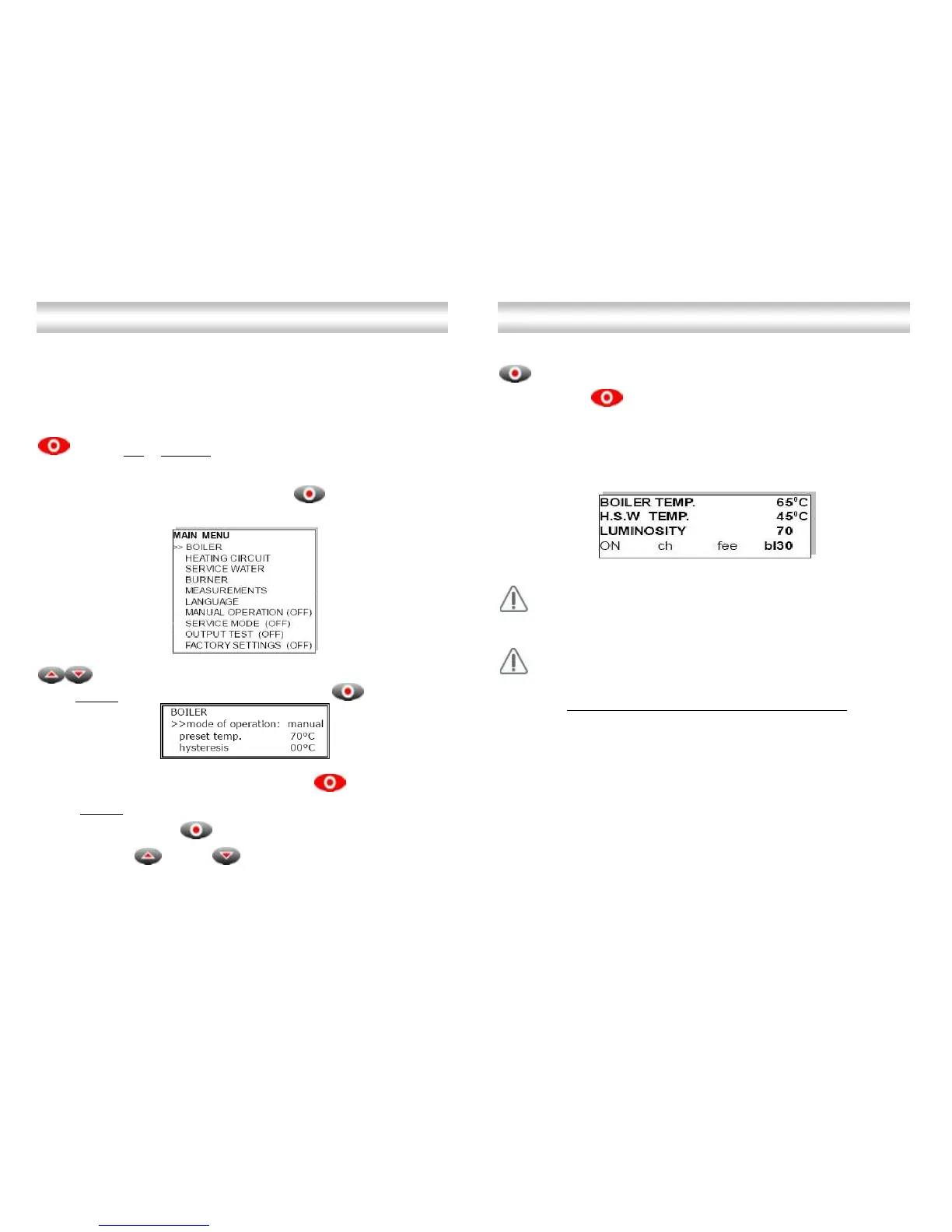

In order to start or switch off automatics of Boiler (Operator Panel), you should press
present button for 3 seconds (HE / OFF / ESC):
To enter the main menu you should press button ENTER:
Main menu is displayed on screen of Operator Panel.
Main menu is described with large letters where you can move up or down with following buttons:
To enter Submenu from main menu you should press button ENTER::
In order to come back to higher level you should press button ESC
Individual Submenu serves to adjust current parameter (value) to change value of given parameter
you should press button ENTER:
then buttons: increase or decrease value of parameter.
page 14
Button of change acceptance of value or status of given parameter is made with the help of ENTER:
Pressing button ESC: escape cancels changes of value or status of given parameter.
Drawing of full accessible Menu on Operator Panel is shown on page 13
On main screen of Operator Panel in period in the circuit exploitation of Heating Boiler the FUWI on
Pellets, displayed it is:
Current state of procedures
"OFF ” - switched off (active service of alarm states as well as manual work of
blower and feeder),
OFF – Boiler is in vigil state and is under voltage, in case of alarm state appear all
suitable preventive processes still will be undertaken.
„
” – switched on (active service of all procedures and modules of automatics)
ON – if controller is not be used for long period of time or in case of carrying out any
service activities on controller, the device should be indispensably switched off by
plugging it out from electricity.
Operator panel displays on Main Screen the following symbols:
chp - work of central heating pump;
fee - work of fuel feeder – Pellets;
fn30 - work of blower, current power;
wwp - work of warm usable water pump;
zap - work of electric lighter;
