Introducing on the market mentioned heating device called Heating Boiler FUWI on Pellets, we
offer you the newest technology with feeding of solid fuel, burning it and exchanges warmth between
exhaust gas and water in boiler. Applied in this device burner and technical solution is subject to the
patent protection of RP of No. P375326.
Qualified staff should install present device, accordingly to technical standards as
well as valid state and local standards. Moreover it should be done according to the
present instructions for safety use, installation and storage.
The Heating Boiler FUWI on Pellets is a device in shape of a steel cube, equipped with burner,
tank with solid fuel of the type – Pellets, that automatically come from feeder to the burner in
such quantity of solid fuel (pellets) that is necessary to obtain the temperature programmed
by user on temperature control panel. The controller based on microprocessor made by the
Polish manufacturer's, gives possibility of full automatic steering option of boiler.
The control unit of boiler with instruction is the integral part of boiler that you
should learn.
Water block is made of steel sheet (with thickness about 4mm and 6mm) as well as seamless
pipes. Isolation of boiler is made of mineral wool, from outside it is covered with metal sheet. The
smoke pipes in upper unit of water block are the exchangers of warmth, and the chamber in bottom

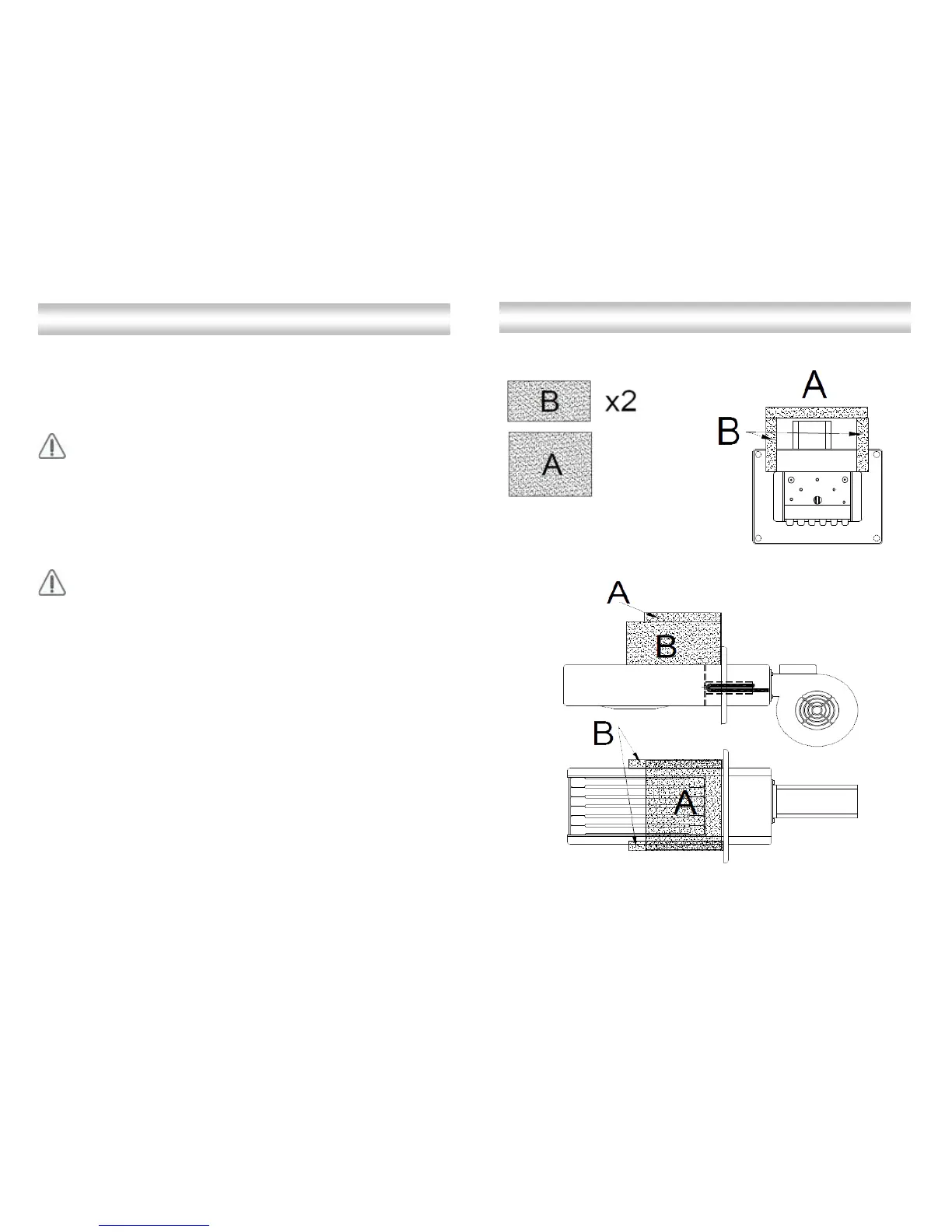

unit of water block in which burner is burning is made of heat-proof steel and of nickel chrome where
there are openings to air. The cast-iron fire grate on bottom of burner is placed according to
efficient and effective ash cleaning of chamber. The process of burning of pellets as well as state of
hearth is controlled by photodiode (probe of clearness). Airing as well as exploder of the burner are
equipped with regulated electric blower and automatic lighting of the pellets that operate
simultaneously. Below burning chamber there is chamber of ash-pan to which pellets go after
burning as ash.
Safety of exploitation of Boiler FU-WI on Pellets is assured by multi-stage protection system, based
on protection of flame withdrawal to fuel container (temperature sensor of feeder), protection before
overheating of boiler (thermal switch), regulator of temperature of boiler (the sensor of temperature),
regulator of temperature of usable water (sensor of temperature), external regulator of temperature
of boiler (weather sensor), regulator of temperature in rooms (optional).
page 4
Top view – boiler room: values given in millimeter
Front and side view – boiler room:
