Original User Manual FUXTEC chainsaw FX-KS142_KS146_rev08
29

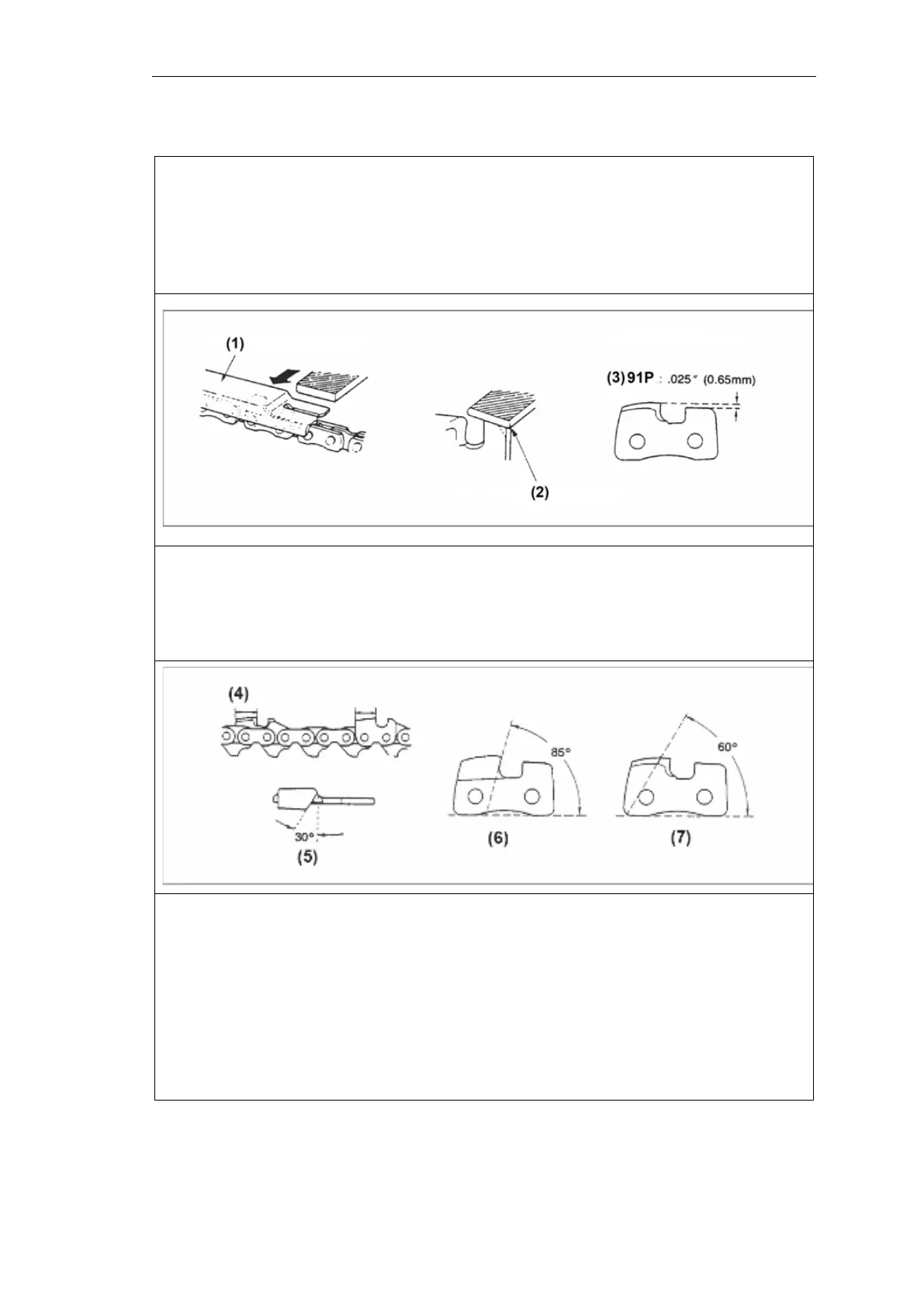

After each saw tooth has been refiled, place a depth gauge on top and
refile the saw teeth to the correct size.
Make sure that the front edges are rounded to reduce the risk of kickback
or tearing of the retaining straps.
(1) Appropriate depth gauge
(2) Depth gauge standard dimension
(3) Rounding off the dental shoulder
Make sure that each of the saw teeth has the same length and depth
angle as shown in the figure.
(4) Length of the sawtooth
(5) Filing angle
(6) Side plate angle
(7) Cutting angle of the upper plate
