FUXTEC FX-MT152 User Manual

Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
20
2
4
3
2
4
3
Installation of the protective shield
Install the protective shield on the driveshaft tube
against the gearbox housing. Tighten the holder of
the guard so that the blade guard does not move or
slide down during operation.

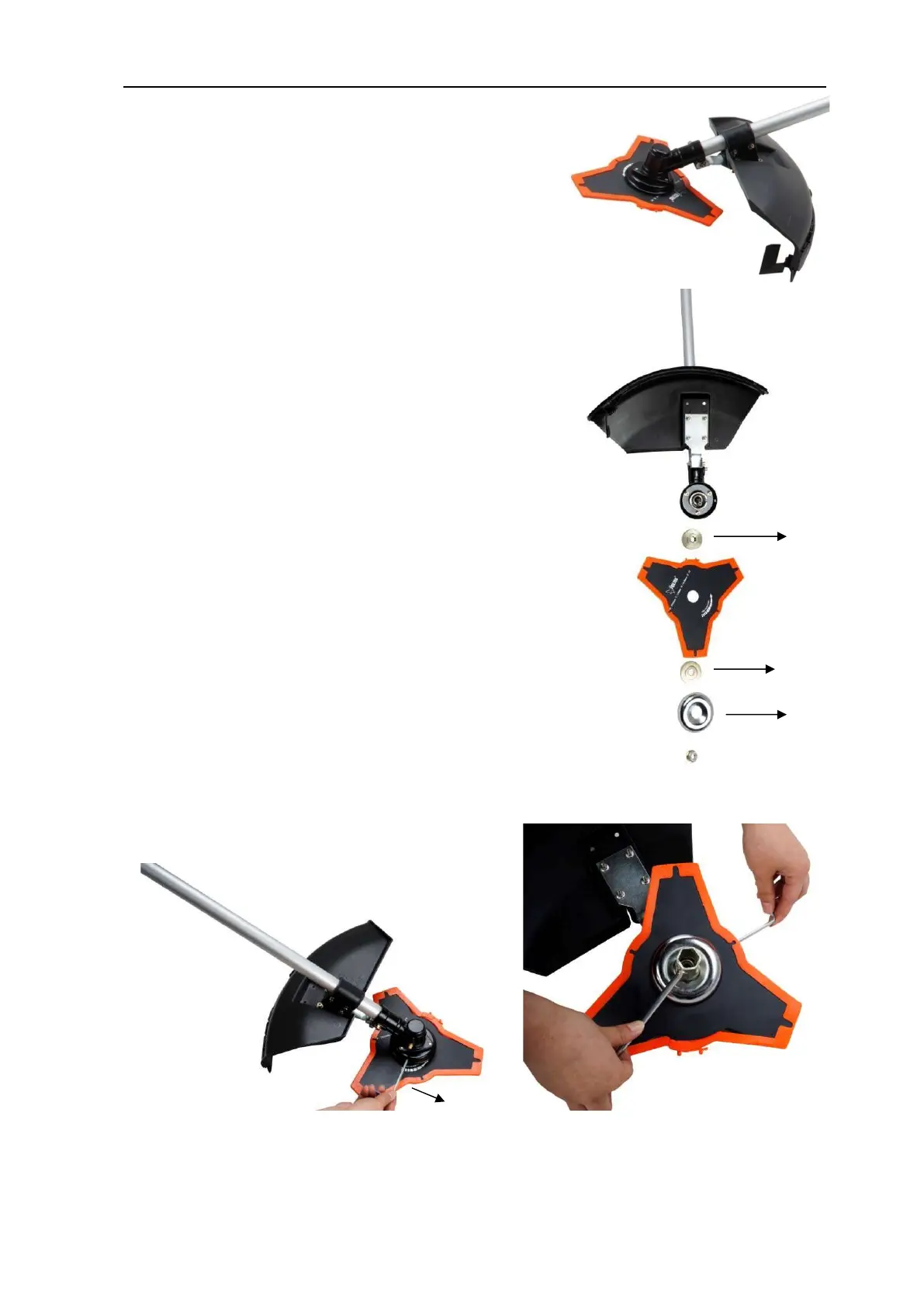

Mounting the metal blade (motor scythe)
Steps:
1. Place the key (1) in the hole on the gearhead.
2. Remove the nut, the cover (4) and the
upper spacer disc (3) from the gear shaft
3. Place the metal sheet on the lower
Distance washer (2). Make sure that the marked
side of the cutting blade is in contact with the disc (2).
4. Slide the upper spacer disc (3) over the
Gear shaft onto the metal sheet. Pay attention to this,
the upper side of the cutting blade makes contact with the
spacer disc (3).
5. Place the cover (4) in place and screw the
Union nut tight with locked gear head
(see point 1)
1

FUXTEC FX-MT152 Specifications

General

Brand	FUXTEC
Model	FX-MT152
Category	Cutter
Language	English
