Original User Manual FUXTEC FX-MT152/-MT152E/-MT252_rev16
25
Using the branch saw attachment
Transport of the tool
Warning!
Always carry it in a horizontal position only. Grip the bar
so that the device is horizontally balanced. Keep the hot
muffler away from your body and the cutting
attachment behind you. Unintentional acceleration of
the engine can cause the saw-chain to rotate and cause
serious injury.
Always switch off the engine and slide the rail guard over the cutting attachment before
transporting the tool over long distances. When transporting the tool in a vehicle, secure
it appropriately to prevent it from tipping over, leaking fuel, and damaging the device.

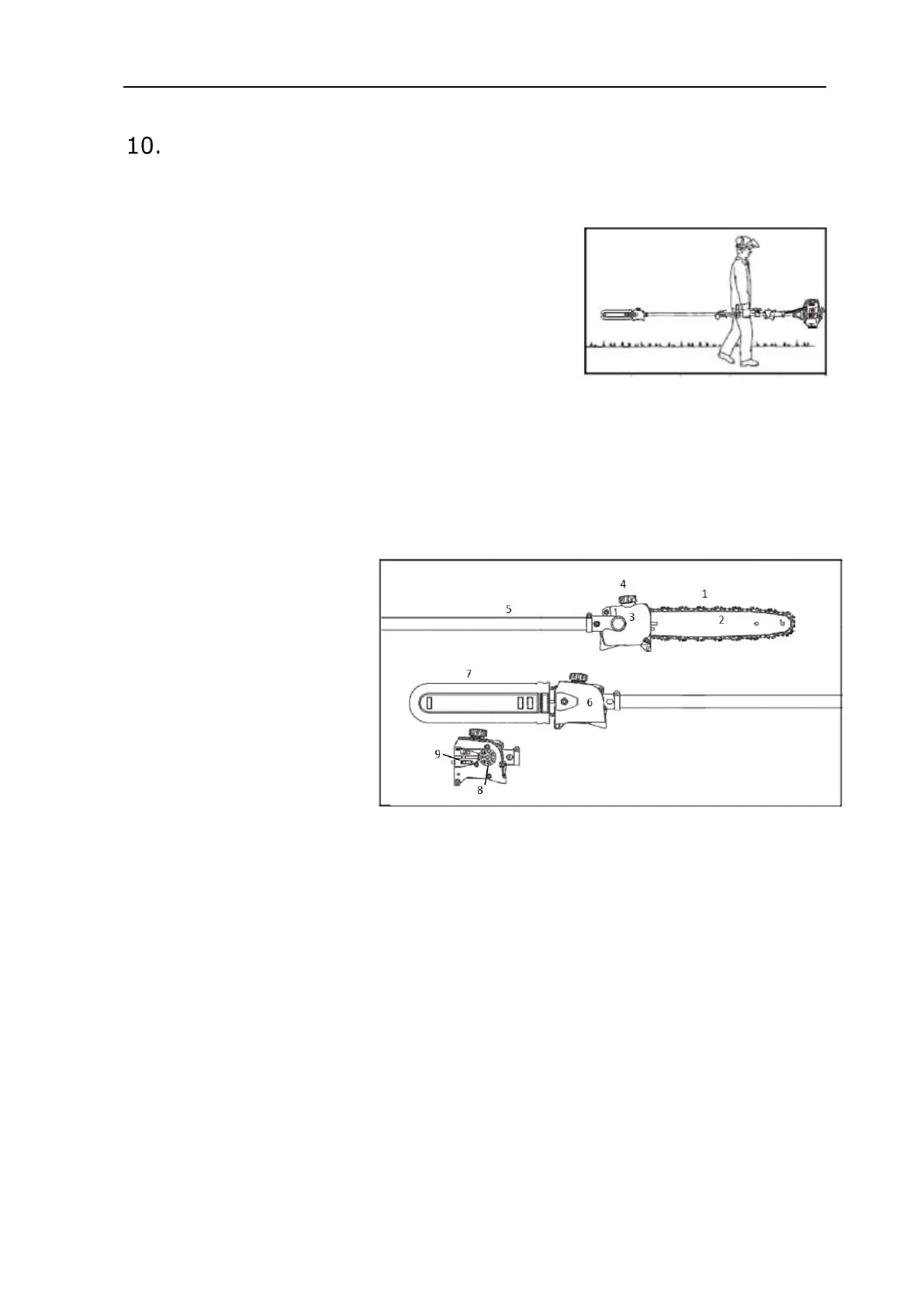

Main components and control elements
1 = Saw chain
2 = Guide rail
3 = Oil tank
4 = Oil tank cover
5 = Drive axle
6 = Sprocket cover
7 = Chain guard
8 = Sprocket wheel
9 = Chain tensioner
Explanation
1. Saw chain: A chain of knives, straps and dynamic links
2. Guide rail: Holds and guides the saw chain
3. Oil tank: Oil tank to lubricate the chain
4. Oil tank cap: Seals the oil tank
5. Drive axle: Connecting element between the engine and gearbox
6. Sprocket cover: Covers the sprocket
7. Chainguard (protective cover): Protects the chain while the device is out of service
and during transport and storage.
8. Sprocket: Gearwheel that moves the saw-chain
9. Chain tensioner: Ensures the chain tension is precisely adjustable
