8、Changing Drive Roll
1
2
3
4

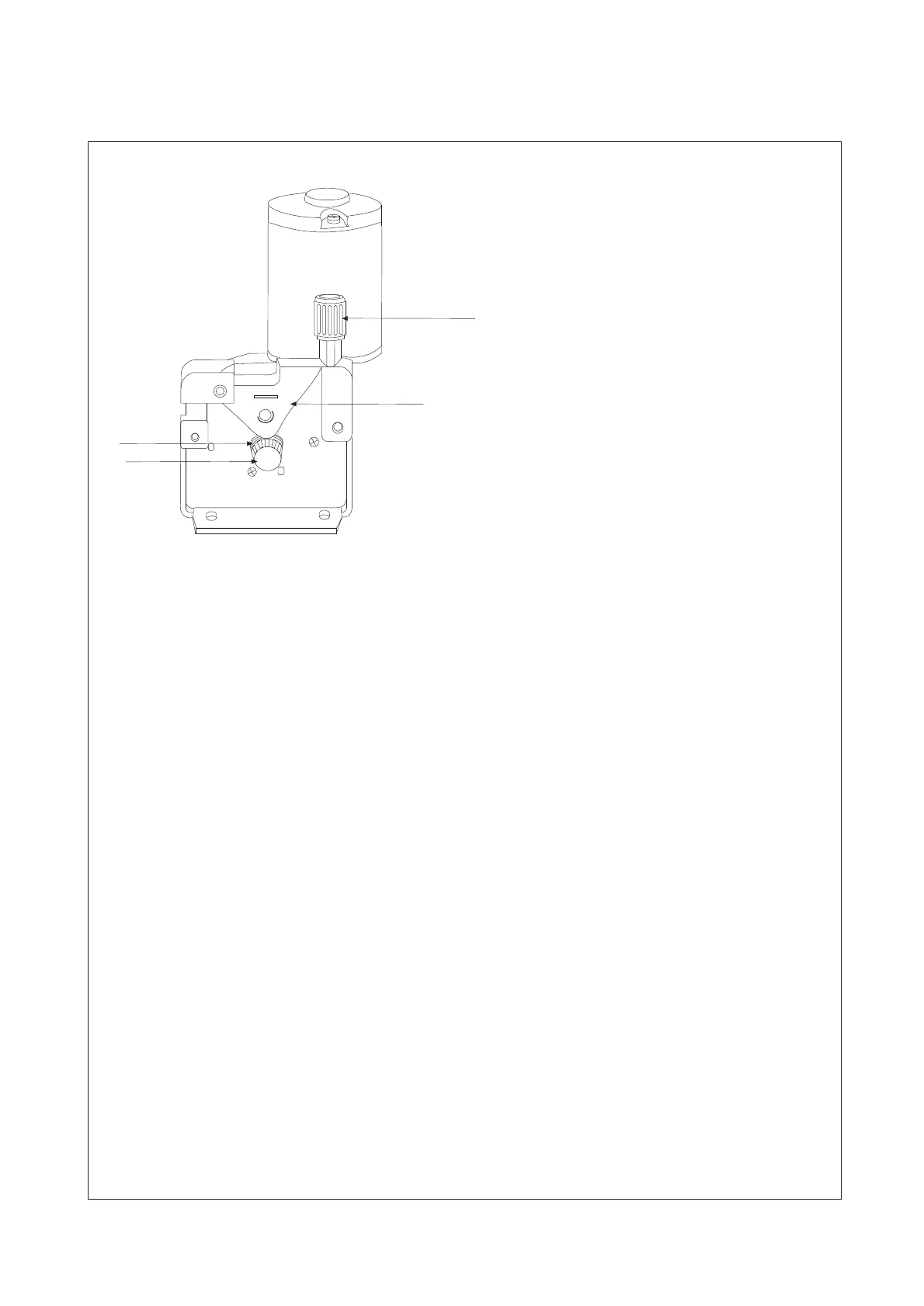

1、Drive roll securing nut
2、Drive roll
3、Pressure adjustment knob
4、Press device
Changing Drive roll:
1、Release pressure adjustment knob .Press wire device springs open.
2、Loosen securing nut ,Remove drive roll.
3、The drive roll consists of two different sized grooves.Reinstall the desired wire sized groove
close to the motor shaft.
4、Tighten securing nut.
5、Replace press wire device,and set a desired pressure.
6、Make sure drive roll groove lines up with wire guide.
