FY-TECH FY-4200/2E - Holding and Positioning Welding Gun; Welding Gun Handling Techniques

0°-15°
0°-15°
45°
45°
90°
90°

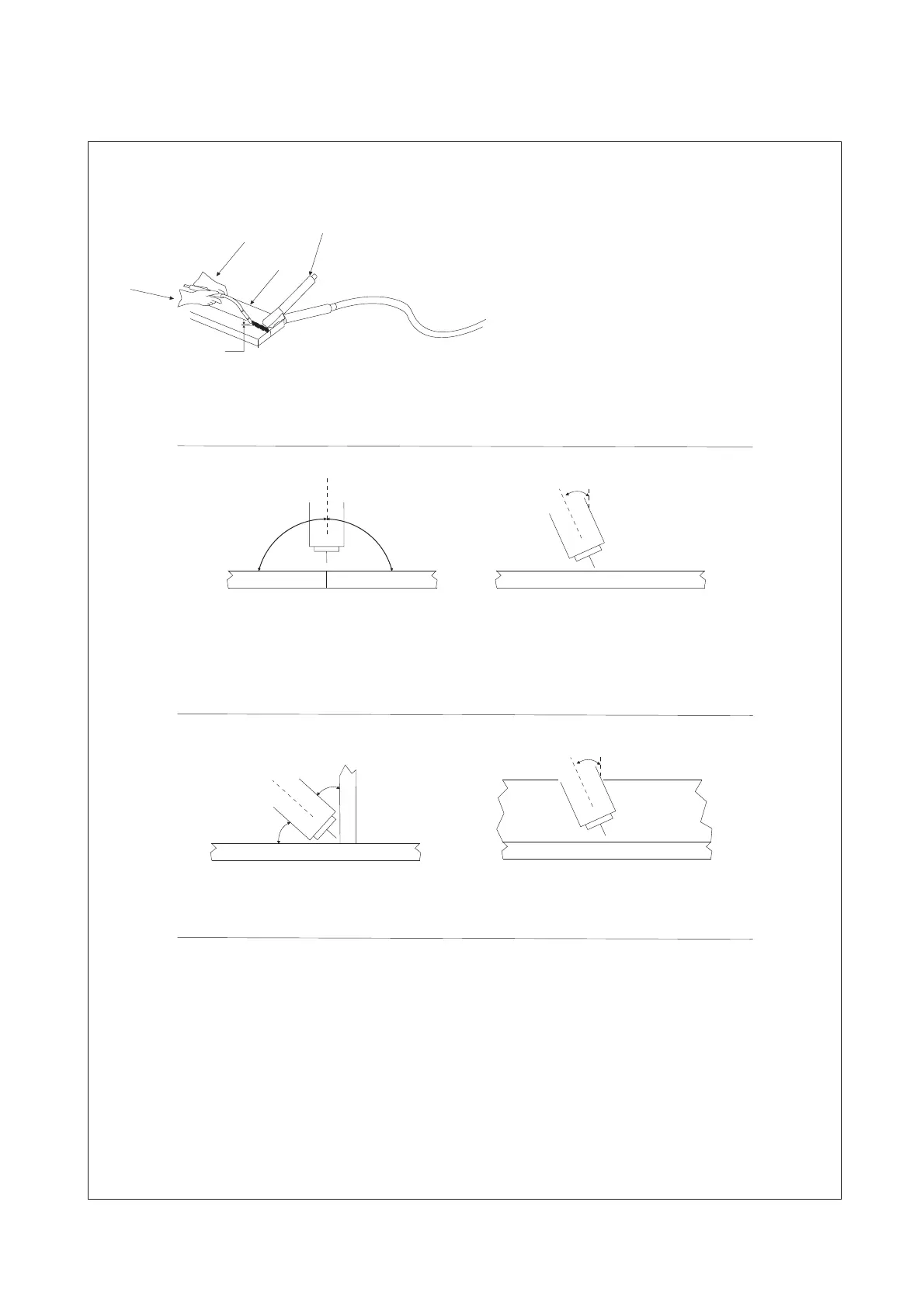

2、Holding And Positioning Welding Gun
5
1
2
3
4
1、Hold Gun and Control Gun Trigger
2、Workpiece
3、Work Clamp
4、Electrode Extension (Stickout)
5、Cradle Gun and R est Hand on Workpiece
End View Of Work Angle
Side View Of Gun Angle
GROOVE WELDS
End View Of Work Angle
Side View Of Gun Angle
FILLET WELDS
Welding wire is energized when gun trigger is pressed.Before lowering helmet and pressing trigger,be
sure wire size is correct to past end of contact tip, and tip of wire is positioned correctly on seam.
Page.16
