G-Lab LINE MIDI SWITCHER - Page 6

4

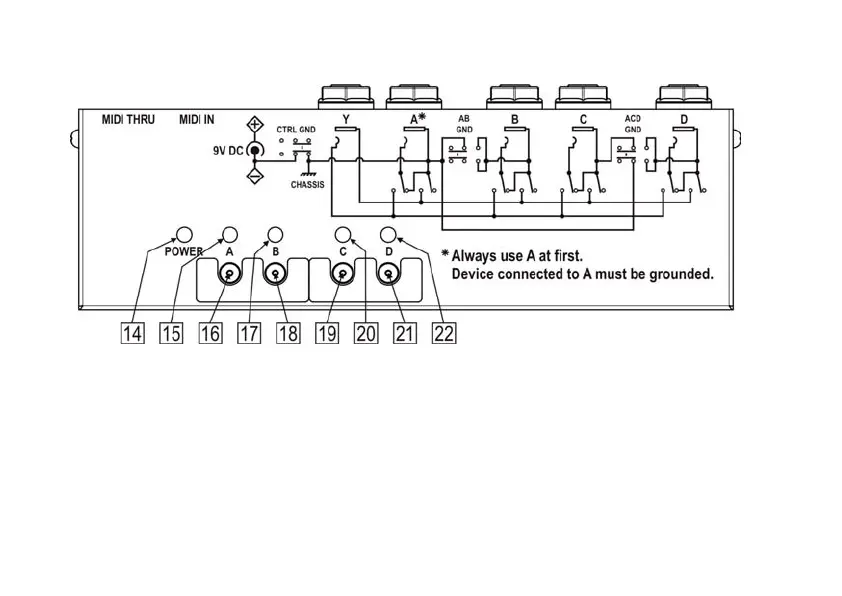

14 - power supply indicator 19 - C output/input „ON” switch
15 - A output/input activity indicator 20 - C output/input activity indicator
16 - A output/input „ON” switch 21 - D output/input „ON” switch
17 - B output/input activity indicator 22 - D output/input activity indicator
18 - B output/input „ON” switch
