G-Lab LINE MIDI SWITCHER

To Next Page

To Previous Page

Structure

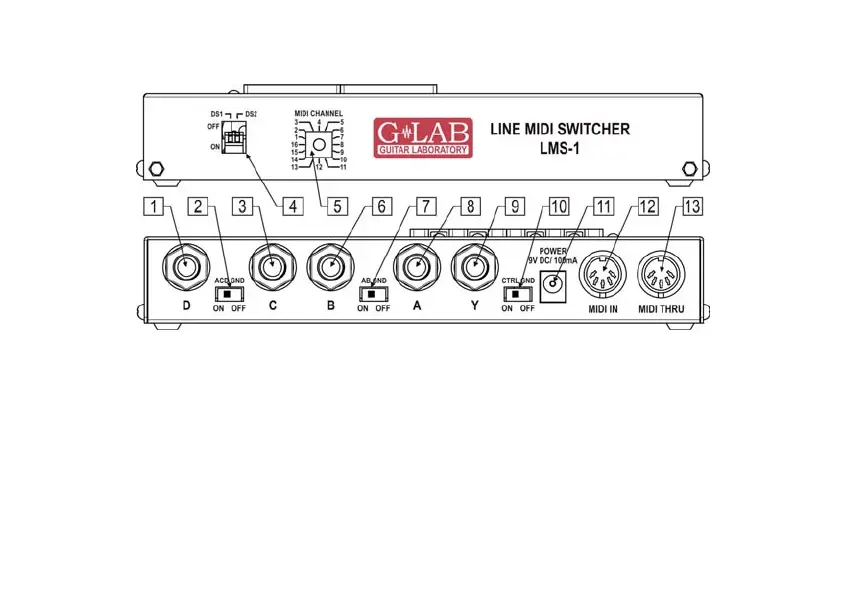

1 - output/input D 8 - output/input A

2 - ACD GND grounds switch 9 - input/output Y

3 - output/input C 10 - CTRL GND ground switch

4 - DS1 and DS2 – working mode switches 11 - 9V power supply connector

5 - MIDI channel settings switch 12 - MIDI IN input

6 - output/input B 13 - MIDI THRU output

7 - AB GND grounds’ switch

G-Lab LINE MIDI SWITCHER - Structure
