Sockets, connectors and switch on the rear side

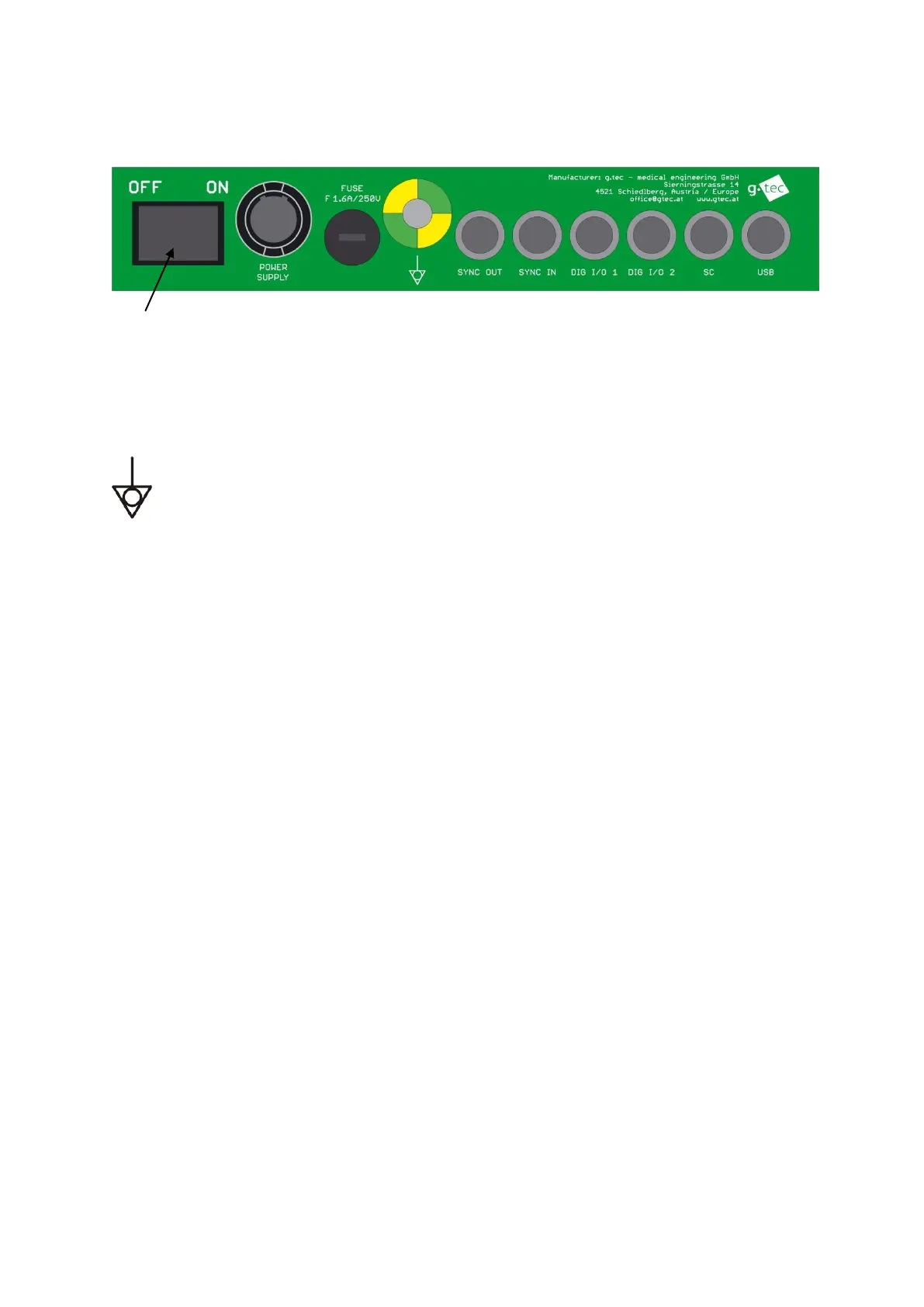

g.USBamp rear view
POWER
POWER switch for switching ON/OFF the device
POWER SUPPLY socket for the connection of the external power supply unit
FUSE 1.6A / 250V fuse, type 20 mm, quick-acting
potential equalization conductor
SYNC OUT socket for the synchronization with another g.USBamp
SYNC IN socket for the synchronization with another g.USBamp
DIG I/O 1 socket for digital inputs and outputs
DIG I/O 2 socket for digital inputs and outputs
SC socket to disconnect the input electrodes from the amplification units. The
amplifier unit inputs are connected to ground potential.
USB USB socket for the connection with the PC or notebook
