G-Tek GT-U1M - Convert 3 Phase to 1 Phase Connection; In main power supply

Global-Tek (Singapore) Pte Ltd
Page
5

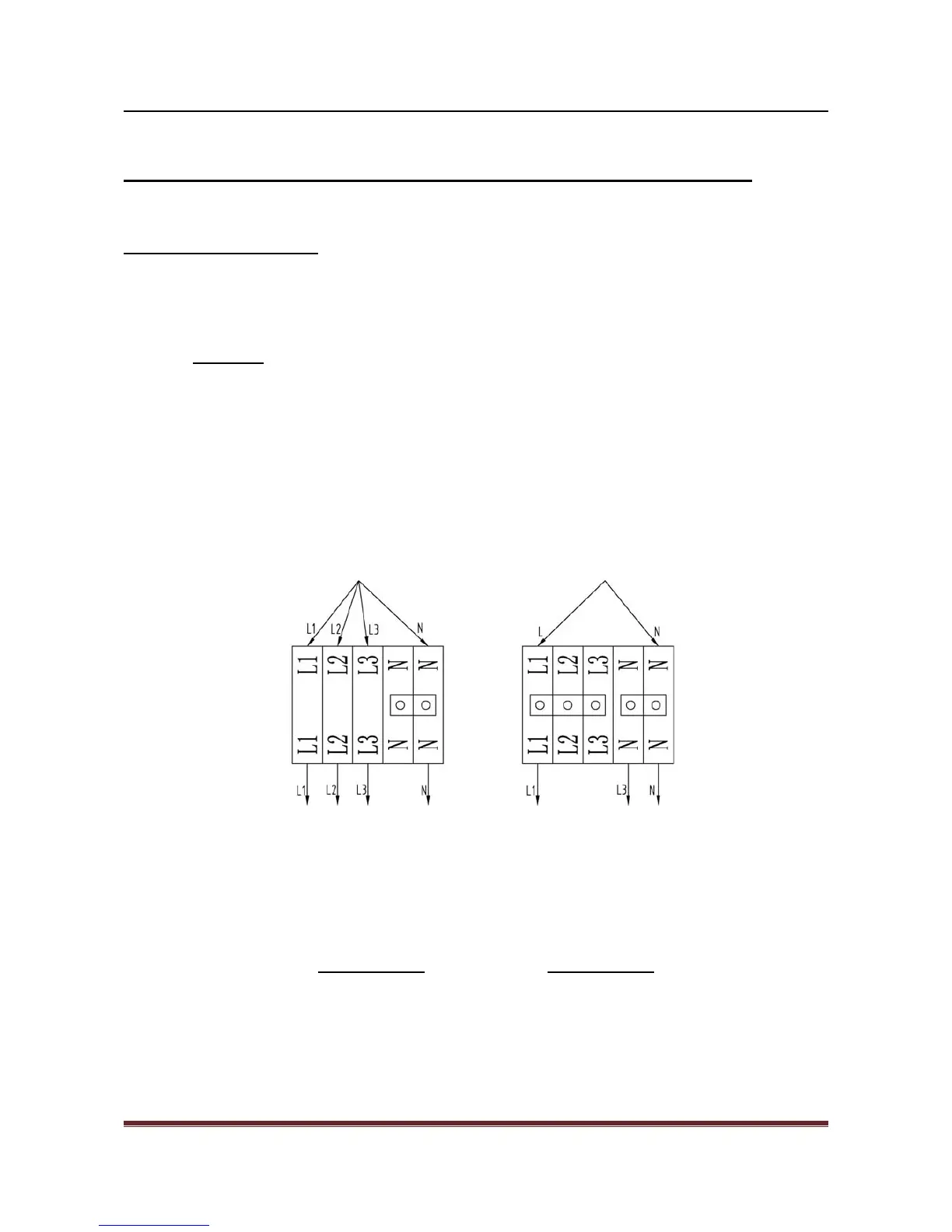

Converting from 3 phase 380V ( 15 Amp) to Single phase 220V (25Amp)
A/ In main power supply
1/ Remove wires L2 & L3 from in-coming power cable side,
2/ Joint terminals L1, L2 & L3 together,
3/ Remove L2 from outgoing wires side, isolated it with a wire cap (not provide).
4/ Remove L3 from outgoing wires side then connect it to the e mpty N terminal provided.
5/ Becomes Diaphragm 2B
In-coming power cable In-coming power cable
Out-going wires Out-going wires
3Ph 380V 1Ph 220V
Diagram 2A Diagram 2B
