G-U ELTRAL KS 30/40 Remote User Manual

15
1.13 Anschlussplan
Anschluss für KS30/40 Remote
Der Kettenantrieb ELTRAL KS 30/40 - Remote besitzt ein ca. 2m langes zweiadriges Anschlusskabel.
Es muss an eine Netzspannung von 110V oder 230V~ 50Hz angeschlossen werden.
Die Steuerbefehle Öffnen und Schließen werden mit dem Funkhandsender KS 30/40 (Bestell-Nr. K-
17439-00-0-0) erteilt. Die Steuerung über einen fest verdrahteten Schalter oder Taster ist nicht mög-
lich.

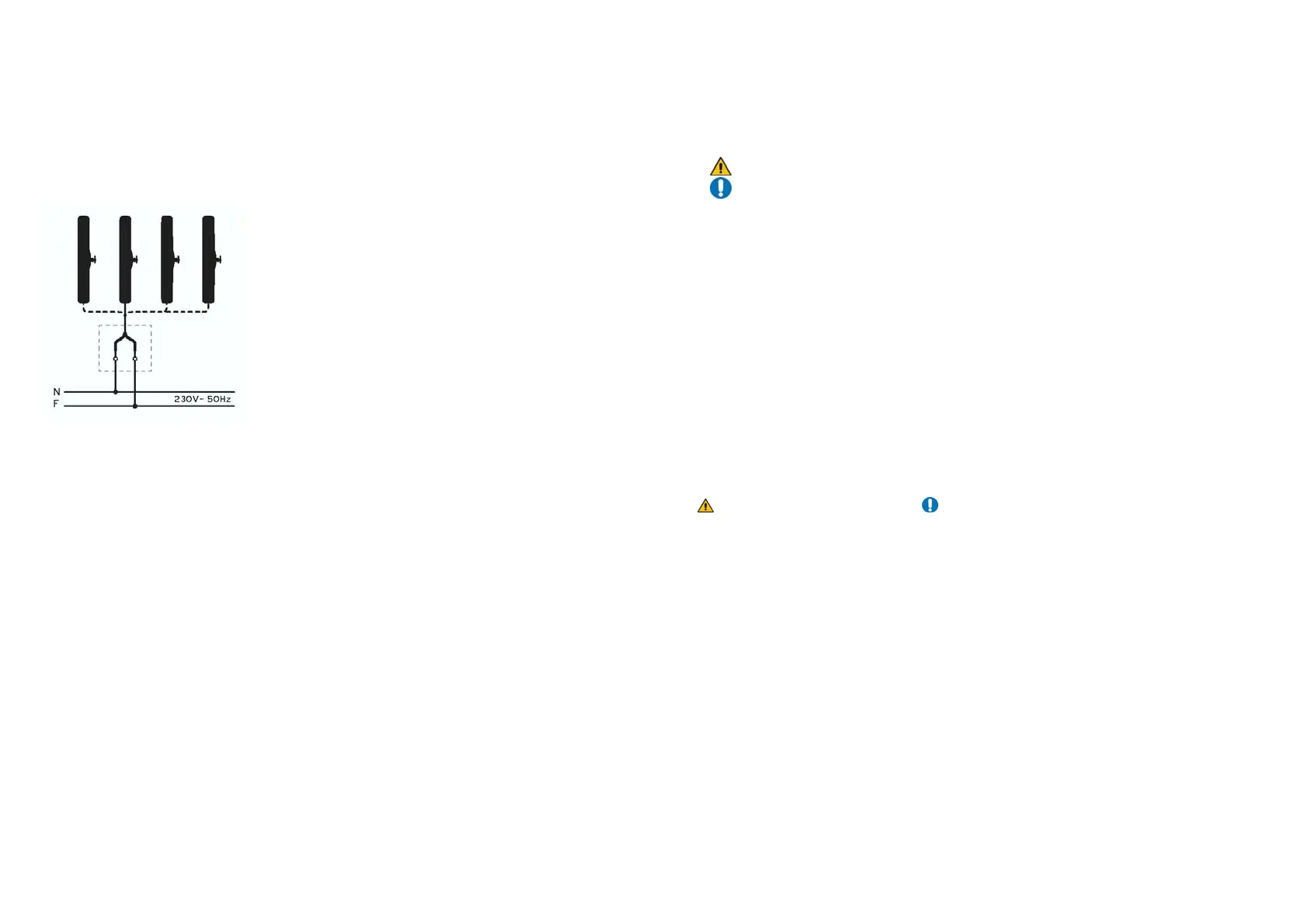

Der Anschluss des Antriebes ist nach dem folgenden Schaltbild vorzunehmen.
16
2 English
2.1 General information
Symbols used
Symbol Signal word meaning
Danger ! Warning of personal injury
Caution ! Warning of damage to property
⇐
Note ! Special functions or user tips
9
Instruction to do something
Basic advice
The Installation and Operating Guide is an important part of the supplied equipment, and is addressed
to the people who will install, operate or maintain the motor. The Guide tells you what you need to
know about the product and how to use it safely.
9 Please read the Guide carefully and pay particular attention to instructions concerning safety
9 Keep the Guide in a safe place.
9 Reliable functioning and prevention of risk and damage are only achieved with accurate assem-
bly and setting according to the instructions.
9 In the event of incorrect mounting and installation, Gretsch-Unitas GmbH Baubeschläge accepts
no liability.
9 After removing all packaging, please verify that all parts of the appliance are present and intact.
Plastic bags and small parts such as clips etc. must be kept out of the reach of children as they
are potential sources of danger.
General safety instructions
9 It is absolutely essential to observe the following safety instructions.
9 Additional instructions in the further sections of the Guide are clearly identified by the symbols
referred to above.
9 Ensure that the mounting, installation and initial commissioning of the equipment is carried out by
trained and qualified persons only.
9 Observe all rules and regulations applicable at the place of installation, such as:
- Health and safety regulations
- Accident prevention regulations
- VDE (German Electrical Engineers Association) regulations and DIN standards
- The "Guidelines for Power-Operated Windows, Doors and Gates", BGR 232 of the Trade
Association (ask Gretsch-Unitas GmbH Baubeschläge for a copy if necessary)
- "Leaflet KB.01: Power-Operated Windows" of the German Association of Window and Cur-
tain Wall Manufacturers (VFF) (ask Gretsch-Unitas GmbH Baubeschläge for a copy
if necessary)
9 Use the motor only if it is in full technical working order, for the purpose for which it is designed,
in a safety-conscious way and with due regard to the dangers, and in accordance with the Instal-
lation and Operating Guide.
