G-U RZ 25 User Manual

11

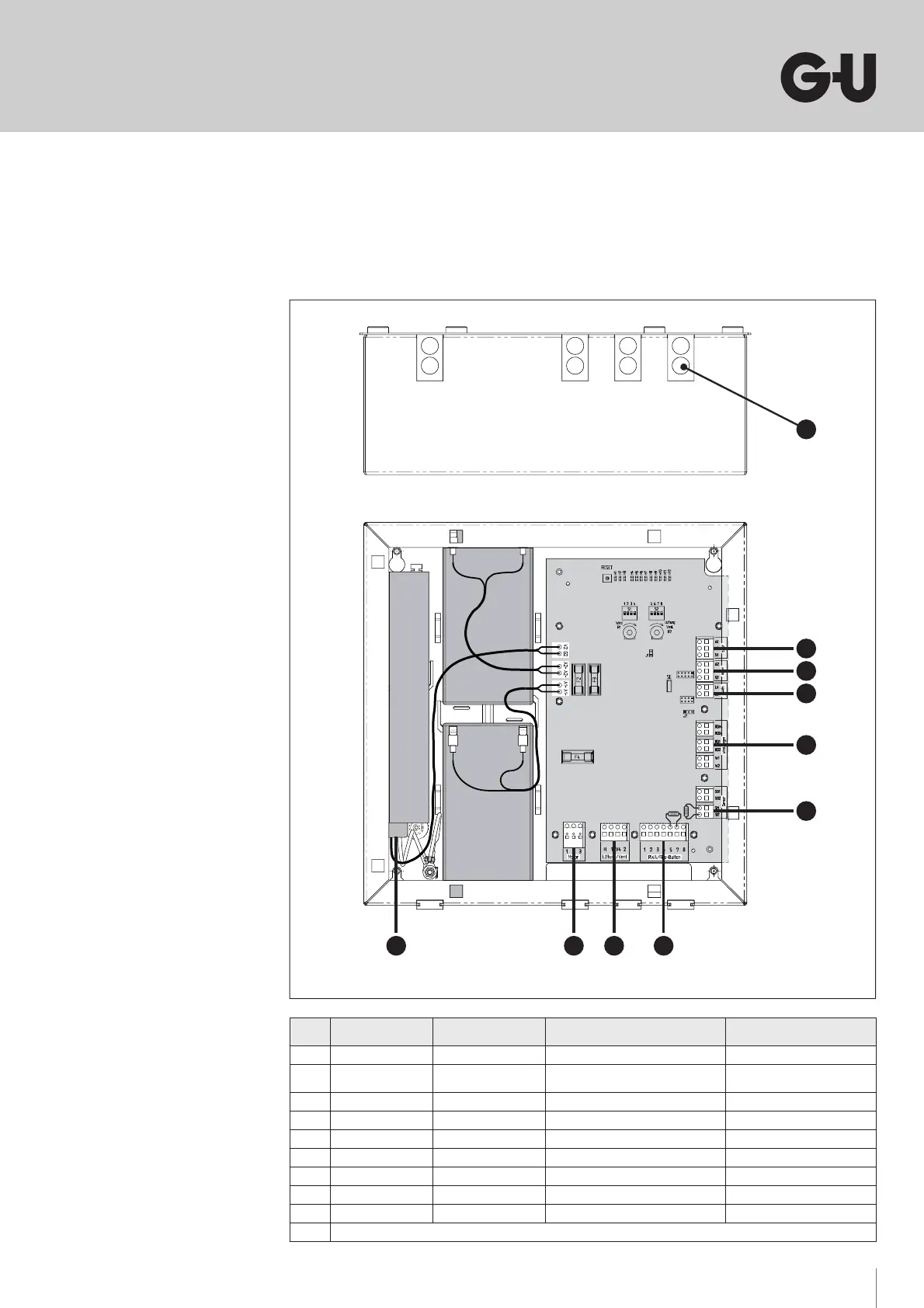

3.4 Wiring diagram
Item
Connecting
terminal
Maximum
cable cross-section
Recommended
cable type
Maximum
cable length
1 Feeder 2.5 mm² NYM-J 3x1.5 mm² --
2 Drive (motor) 4 mm² NHXH-FE 180/E30 min. 3x1.5 mm² Depends on current
consumption of motor
3 Ventilation 1.5 mm² J-Y(ST)Y 4x2x0.8 400 m
4 RWA / Fire-Button 1.5 mm² JE-H(St)H FE 180/E30 4x2x0.8 400 m
5 Sensor in 1.5 mm² JE-H(St)H FE 180/E30 2x2x0.8 400 m
6 Wind / Rain 1.5 mm² NYM-O 5 (7) x1.5 mm² 200 m
7 RS-485 1.5 mm² J-Y(ST)Y 2x2x0.8 200 m
8 Alarm 1.5 mm² J-Y(ST)Y 2x2x0.8 200 m
9 Error 1.5 mm² J-Y(ST)Y 2x2x0.8 200 m
a Cable bushings in the housing
a
Wiring diagram using RZ 50 / RZ 75 as example
1
2
3
4
5
6
7
8
9
