Gabarron ECOSSH158 - Cleaning Maintenance Instructions; Main Components List; Connection Diagrams

16
6.- CLEANING MAINTENANCE INSTRUCTIONS
Before cleaning, make sure the power has been turned off at the circuit breaker panel and that the heating element of the heater
is cool.
Occasionally, clean dust with a dry, soft cloth. Do not use any solvent or abrasive product for cleaning.
When the Heating season is finished, please disconnect the device by turning off the power switch located at the right back of
the unit or at the circuit breaker.
Any other servicing should be performed by an authorized technician.
ECOMBI SSH has been manufactured under a fully assured quality system and using environmentally friendly processes.
Once its useful life is finished please take the device to a recycling depot so that its components can be recycled in an
appropriate way.
7.- MAIN COMPONENTS LIST
Storage Heating Element (All except ECOSSH158)
Ref. 15190091
Switch
Ref. 46100530
Storage Heating Element (ECOSSHI58)
Ref. 15190875
PCB
Ref. 15191870
450W Emitter (ECOSSHI58)
Ref. 15190105
Core Sensor
Ref. 15192140
600W Emitter (ECOSSH208)
Ref. 15190110
Room Sensor
Ref. 46102195
900W Emitter (ECOSSH308)
Ref. 15190120
110ºC Emitter Limiter
Ref. 15190725
1200W Emitter (ECOSSH408)
Ref. 15190130
135ºC Cut Out Manually Limiter
Ref. 10190460

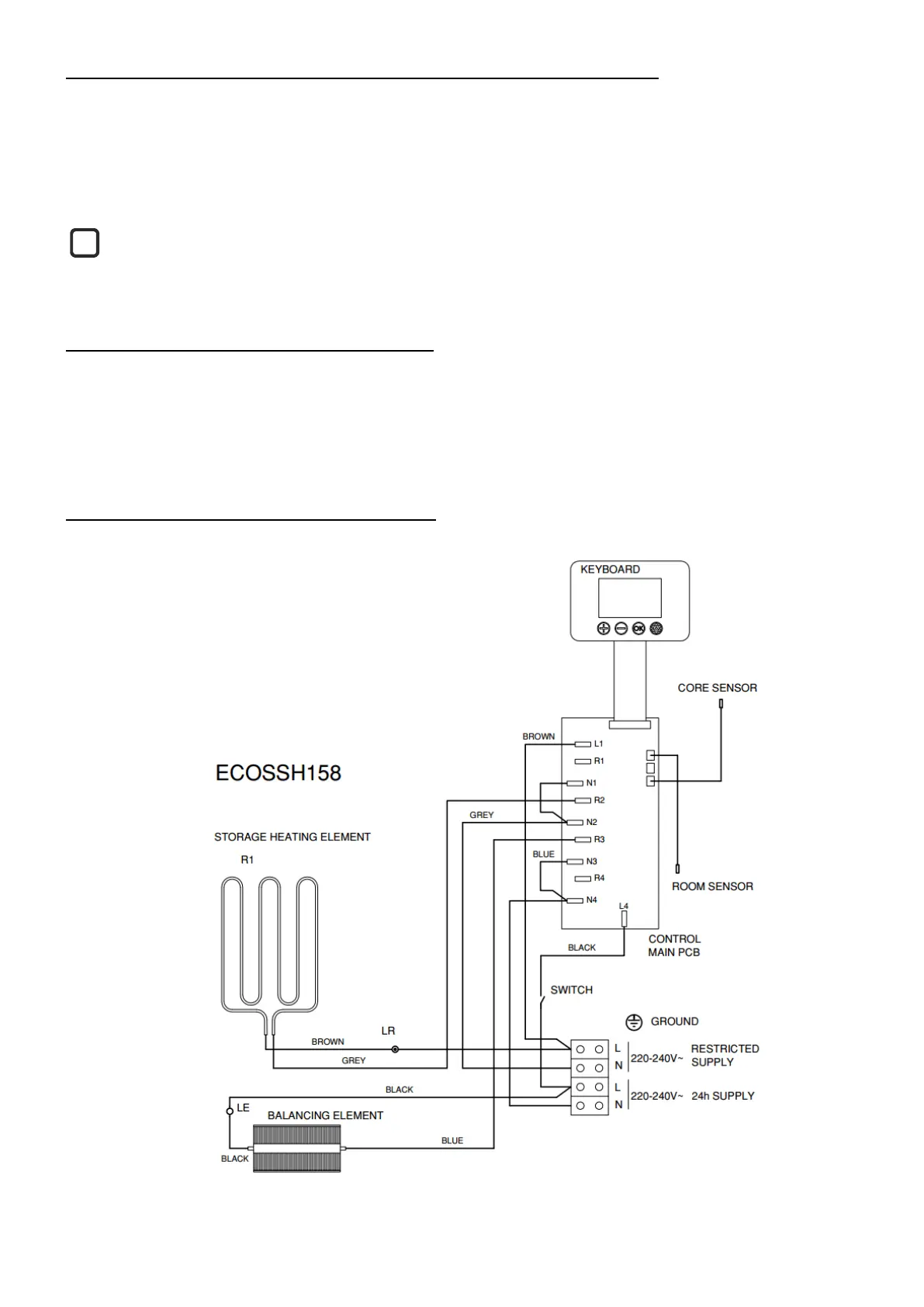

8.- CONNECTION DIAGRAMS
i
LE EMITTER LIMITER
LR CUT OUT MANUALLY LIMITER
