13
Setting Up the BX-1000 Gage (continued)
12. Replace the locking knob in the lower block.

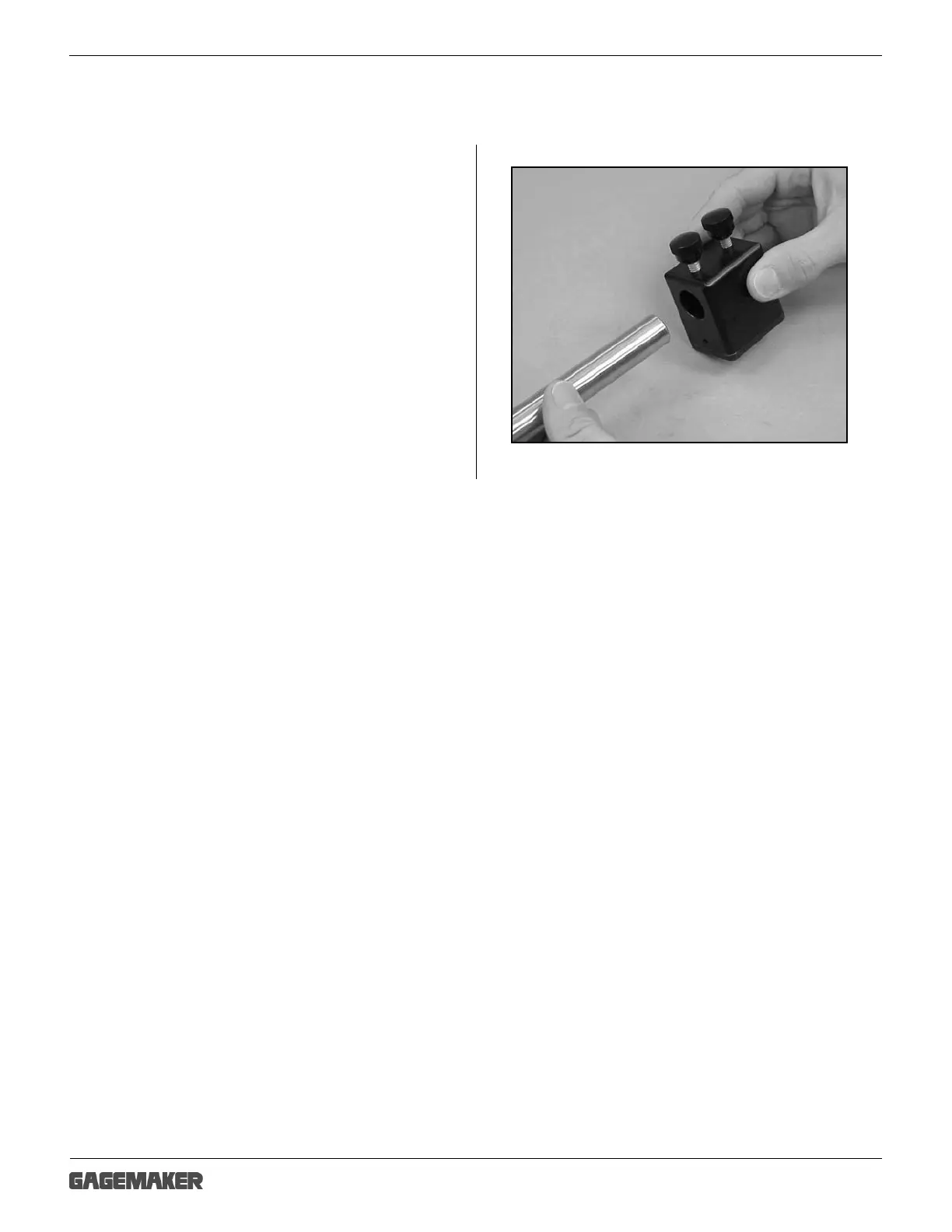

13. Place the lower block on the extension rod and
tighten the locking knob to secure.
