Changing from Internal to External Measurement Direction

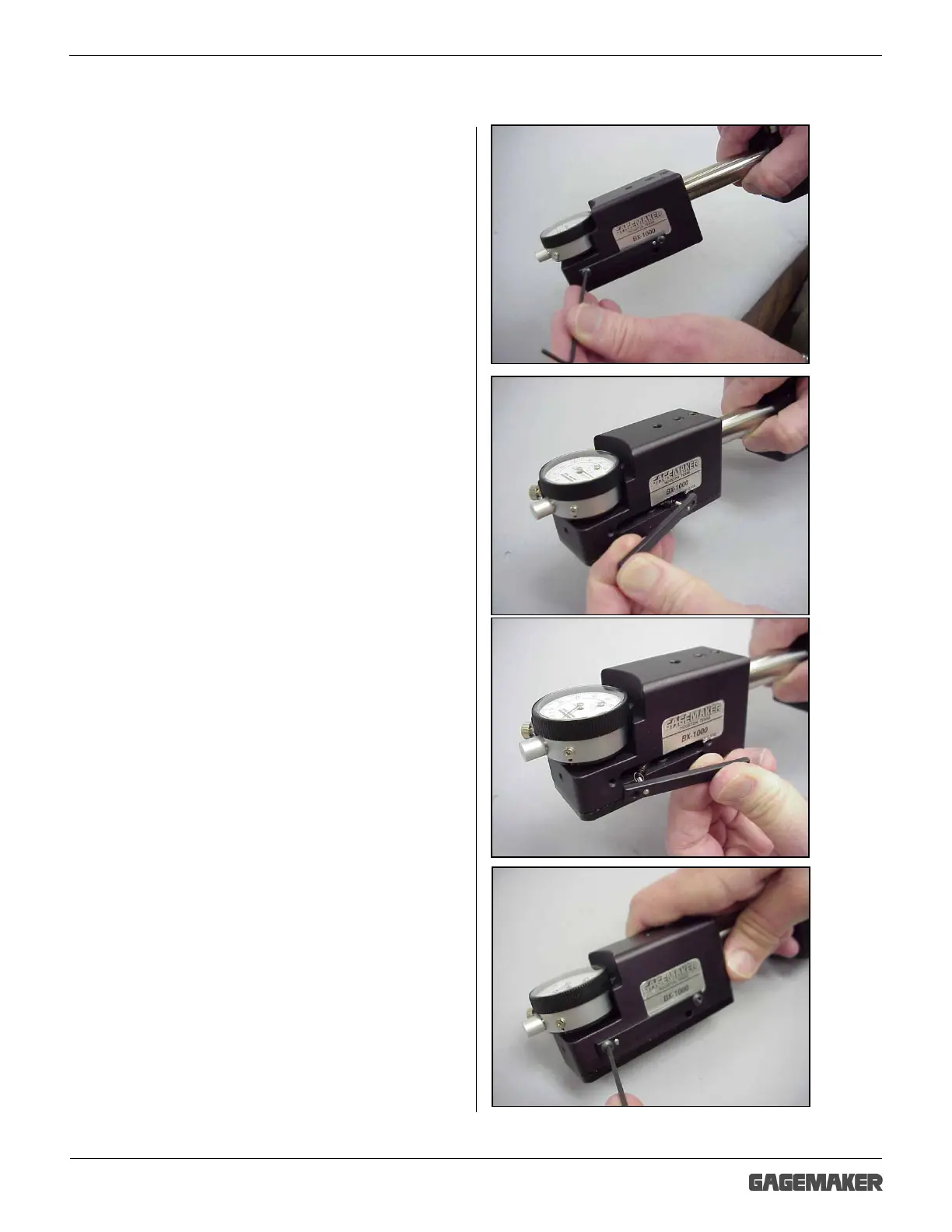

1. Remove the two screws holding the spring-pin
cover plate.
2. Turn the cover plate around 180 degrees.
3. Replace the two cover plate hold down screws.
