REVERSE AND INSTALL THE DOORS
REVERSE AND INSTALL THE DOORS
8
and keep for future reference. For service, support and warranty irmation, call 800-562-0738.
?2019 Galanz Americas Limited C
pany

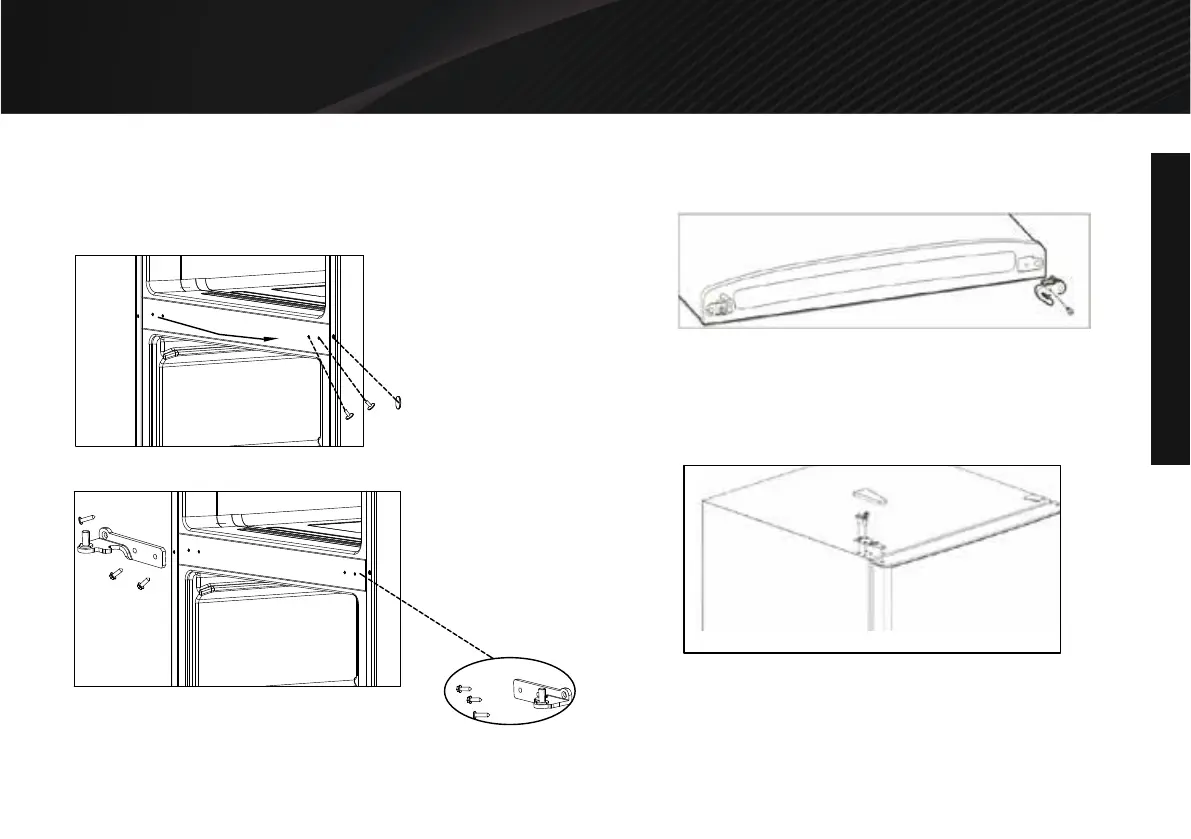

9. Remove the right middle hinge (storage), the left screw hole plug,
the left screw hole plug and put them into the right side. Install the left
middle hinge at the left screw hole. (The left middle hinge is packed in
the box with the accessories).
10. Take off the right door closer and fix the left closer
in the other side of the upper door.
11. Place the top hige on top of the cooler door and line
up the top hinge with holes on top of the refrigerator.Use
three screws to replace the hinge.Then tighten the
screws.Force-fit protective covers over top hinge.
To Next Page
