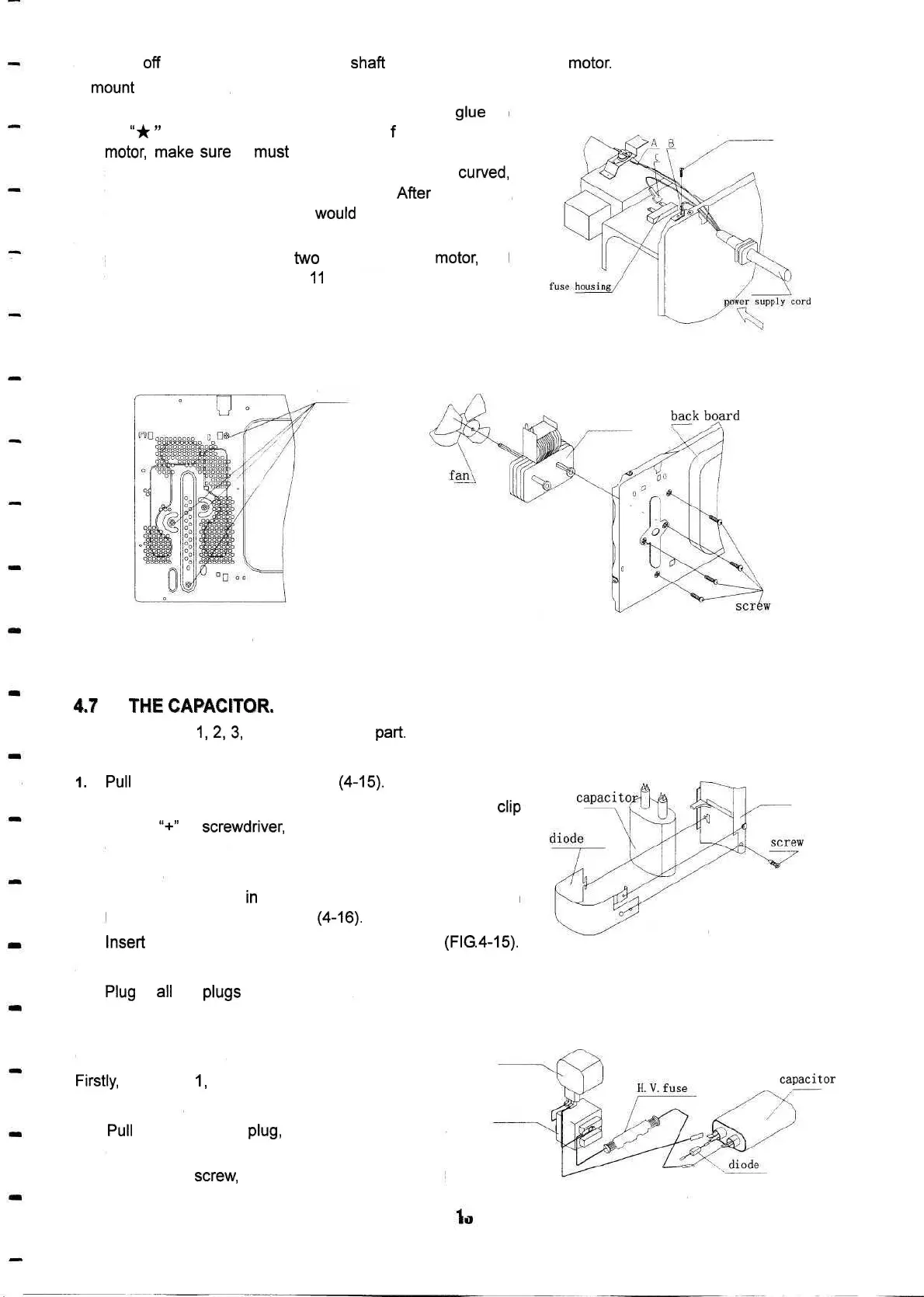

Galanz WP700AP20 - Thecapacitor; The Diodę

5. Take off the fan from the fan motor shaft as FIG.4 -14, then the fan motor,
to mount the fan motor,
1. Assemble the fan motor as FIG.4 - 14. Drip the glue on
the "* " place of the fan motor shaft, and f ix the fan on the
motor, mąkę surę it must be fixed to the bottom of the
shaft. Attention: The fan motor shaft should not be curved,
the fan should have no abnormal stick up. After assembled,
check whether the running fan would knock the fan holder.
2. Assemble the fan holder as FIG.4 - 13, Then connect the
power supply cord with the two wires of the fan motor, and
tighten the screws as FIG.4 - 11 and FIG.4 - 12.
screw
earthing screw
Fig. 4-12
fan motor ^ac
k b
^
ard
Fig. 4-14
Fig. 4-13
4.7 THE CAPACITOR.
Firstly, do as the 1,2,3, steps of III of this part.
To disassemble,
1. Puli the wires of the capacitor out (4-15).
2. Loosen and take out the screw which fix the capacitor clip
with a "+" - screwdriver, and take out the clip and the
capacitor. (4-15).
To assemble,
1. Place the capacitor in the capacitor clip with the end which
have three foot near the diodę (4-16).
2. Insert one end of the clip in the fan holder trough (FIG.4-15).
3. Tighten the screw, which fix the capacitor clip.
4. Pług in all the plugs of the capacitor.
capacito
x
fan holder
Fig. 4-15
4.8 THE DIODĘ.
Firstly, do as the 1, 2, 3, steps of III of this part.
To disassemble,
1. Puli out the diodę pług, which plugged in the
capacitor.
2. Loosen the screw, which fixed the diodę, and
magnetron
capacitor
transformer
Fig. 4-16
