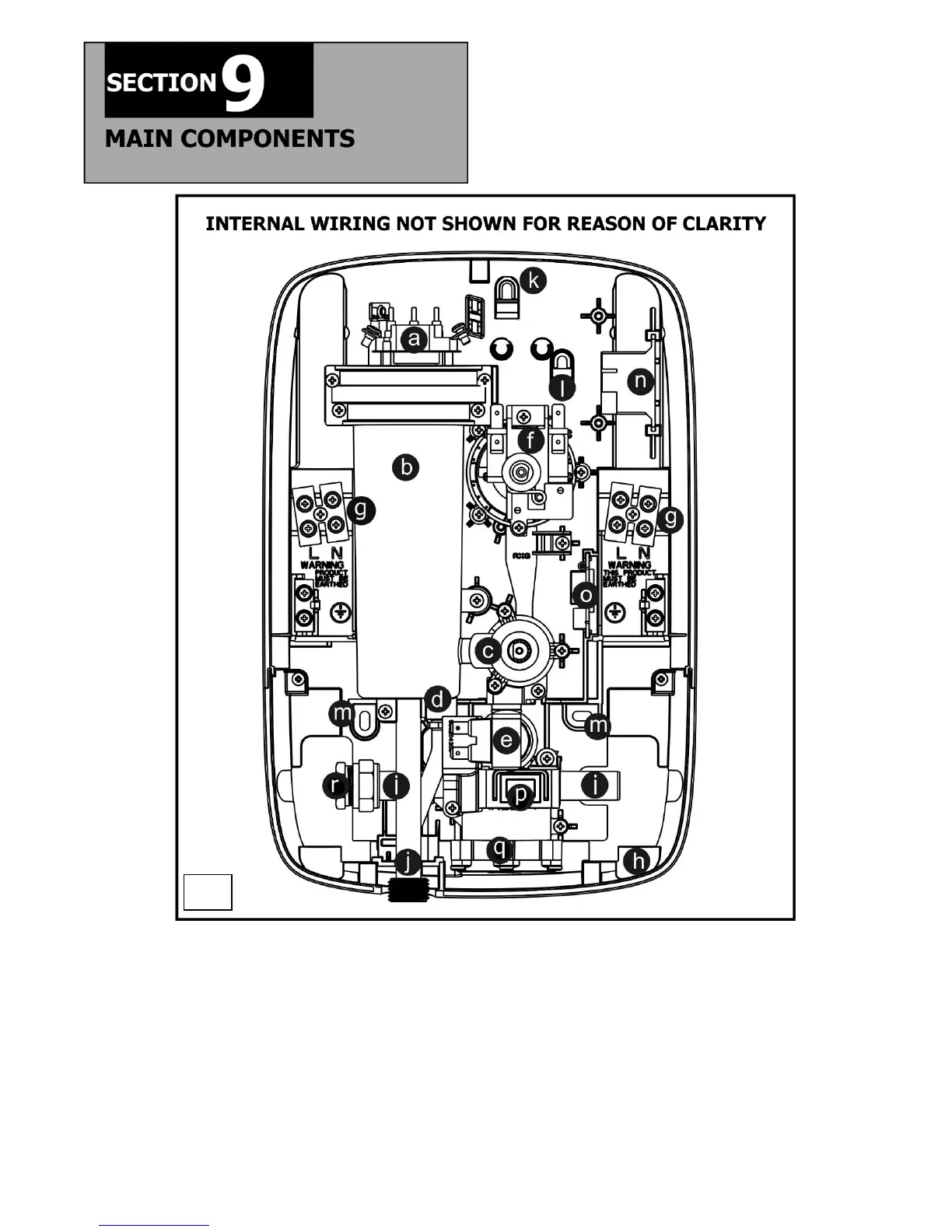

Galaxy 3000M - SECTION 9 MAIN COMPONENTS

13
a) Thermal Cut-Out
b) Heat Exchanger
c) Flow Valve
d) Pressure Relief Device
e) On/Off Solenoid Valve
f) Pressure Switch
g) Terminal Block x 2
h) Detachable Backplate Section
i) Water Inlet
j) Water Outlet
k) Wall Fixing Key-Hole Slot
l) Alternative key-Hole slot
m) Wall Fixing Slot
n) Relay (3500M only)
o) Timer PCB (3500M only)
p) Start / Stop switch
q) Inlet filter
r) Brass end stop
