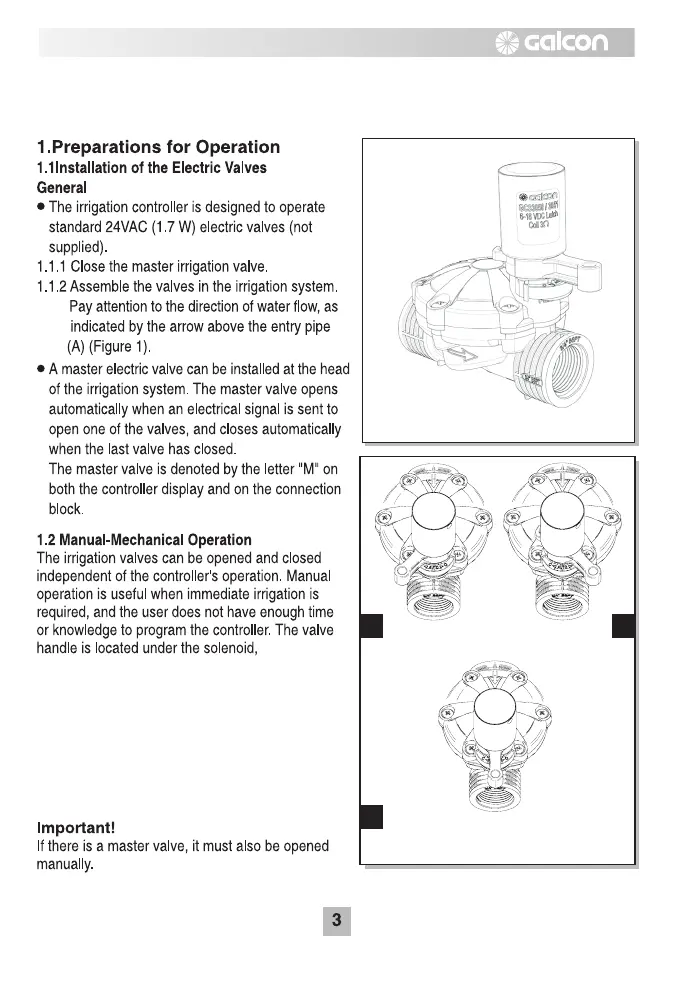

Galcon AC 6S - Preparations for Operation; Installation of Electric Valves

1
1.To close the valve, turn the valve handle to the
left to “C” mode (2) (Figure 1).
2.To open the valve, turn the valve handle to the
right to “O” mode (1) (Figure 2)
3.To operate the valve via the controller, turn the
valve handle middle position to “AUTO” mode
(Figure 3).
CLOSE
OPEN
AUTO
1 2
3
