Galil Motion Control DMC-4040 User Manual

Power Connections

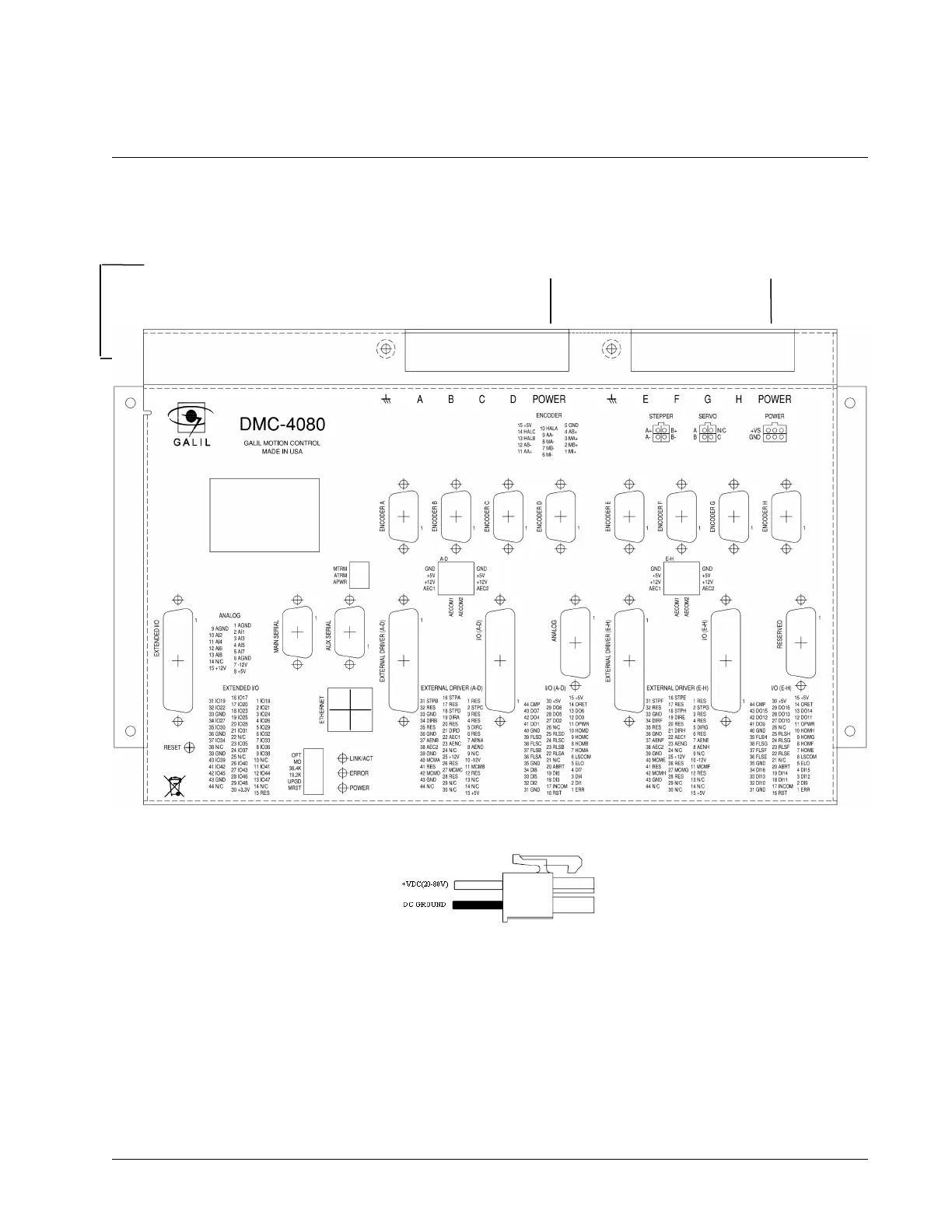

Figure 2.3: Power Connector locations for the DMC-40x0
Figure 2.4: Power Connector used when controller is ordered without Galil Amplifiers
For more information on powering your controller see Step 4. Power the Controller, pg 17. For more information
regarding connector type and part numbers see Power Connector Part Numbers, pg 192. The power specifications
for the controller are provided in Power Requirements, pg 183. and the power specifications for each amplifier are
found under their specific section in the appendix, see Integrated Components, pg 211.
Chapter 2 Getting Started ▫ 12 DMC-40x0 User Manual
SDM/AMP Power
Axis E-H
SDM/AMP Power
Axis A-D
2-pin Molex controller power connector.
