Galil Motion Control DMC-4040 - +5 V Low Amp Enable Sinking Configuration; High Amp Enable Sinking Configuration (Default)

 Isolated Power High Amp Enable Sourcing Configuration pg 203
 Isolated Power Low Amp Enable Sourcing Configuration pg 203

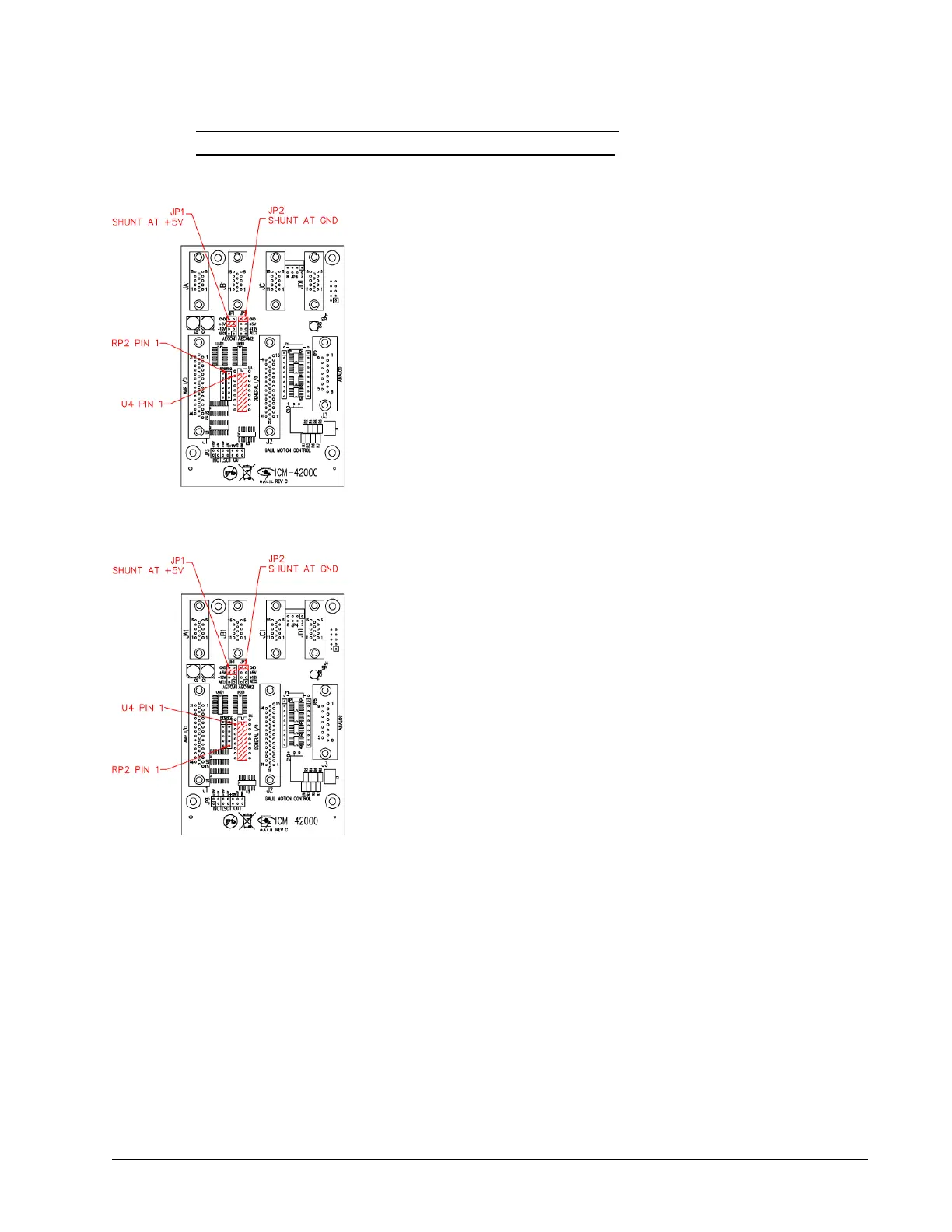

+5V High Amp Enable Sinking Configuration (Default)
+5V Low Amp Enable Sinking Configuration
Appendices ▫ 198 DMC-40x0 User Manual
Default Configuration Shipped with controller when no specific
setup is ordered.
From Default Configuration:
1. Reverse RP2
