3E2374 Sheep Auto Drafter User Manual
Page 16
Method
1. The sorting unit will be assembled upside down, so place the roof upside
down on the ground.
2. Attach the two tie bars to the rear of the roof and screw them on with two

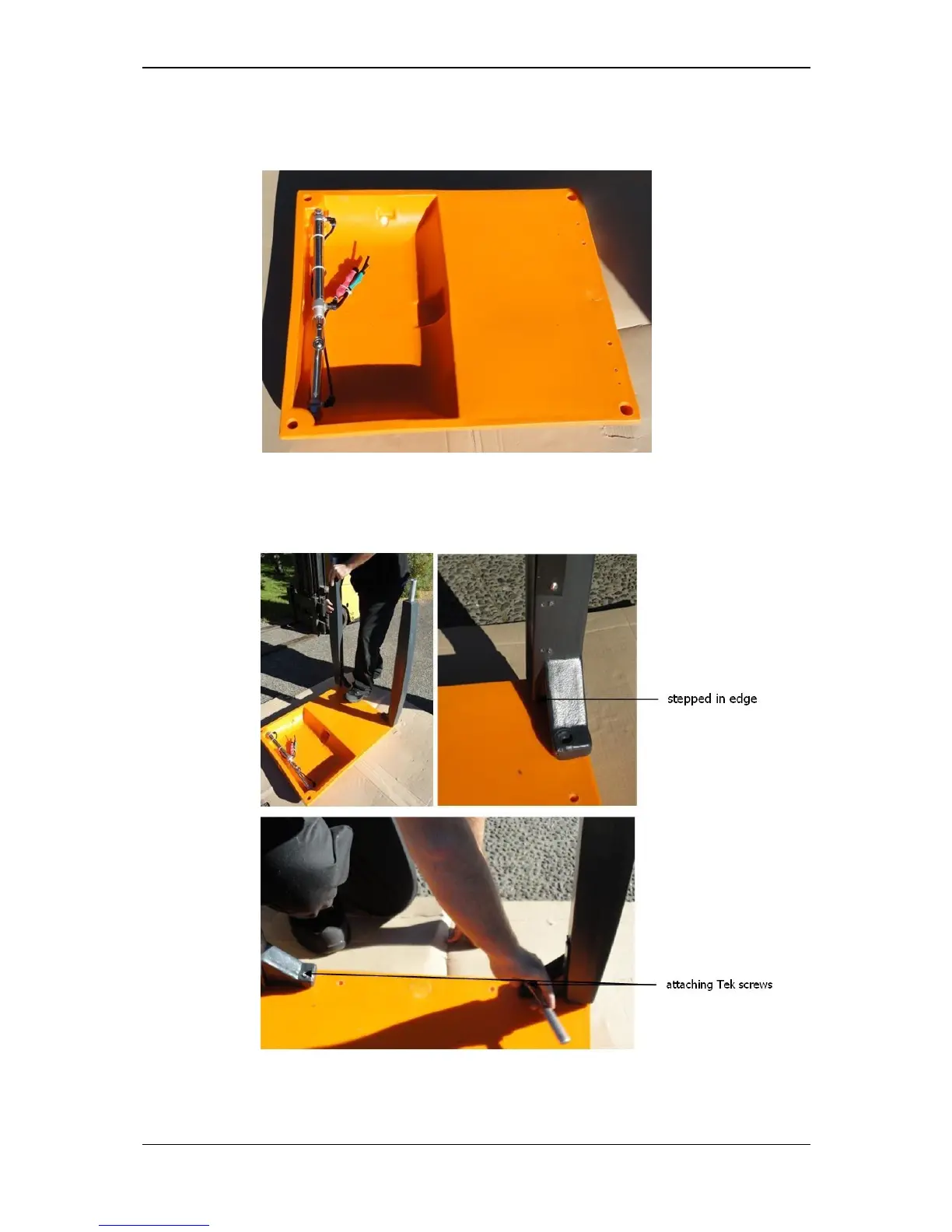

Tek screws (14 gauge x 50mm). There is a left and right hand side, the inside
edge will be stepped in (see photo below).
Tool required: 3/8in socket.
3. Attach doors by inserting shafts in holes in the roof. The left and right doors
are different so make sure the bolt to attach the air cylinders is on the
