PURPOSE AND FUNCTION OF CONTROL
BRIDGE LAMPS (LEDS) AND BUTTONS
Lamps
The Control Bridge houses a number of different lamps, both on top and around
the front (above the entry gate) (see Figure 14). These are intended to give you
an indication of the Sheep Auto Drafter's operational status, (i.e. if it is ready to
operate, operating normally or has a fault).

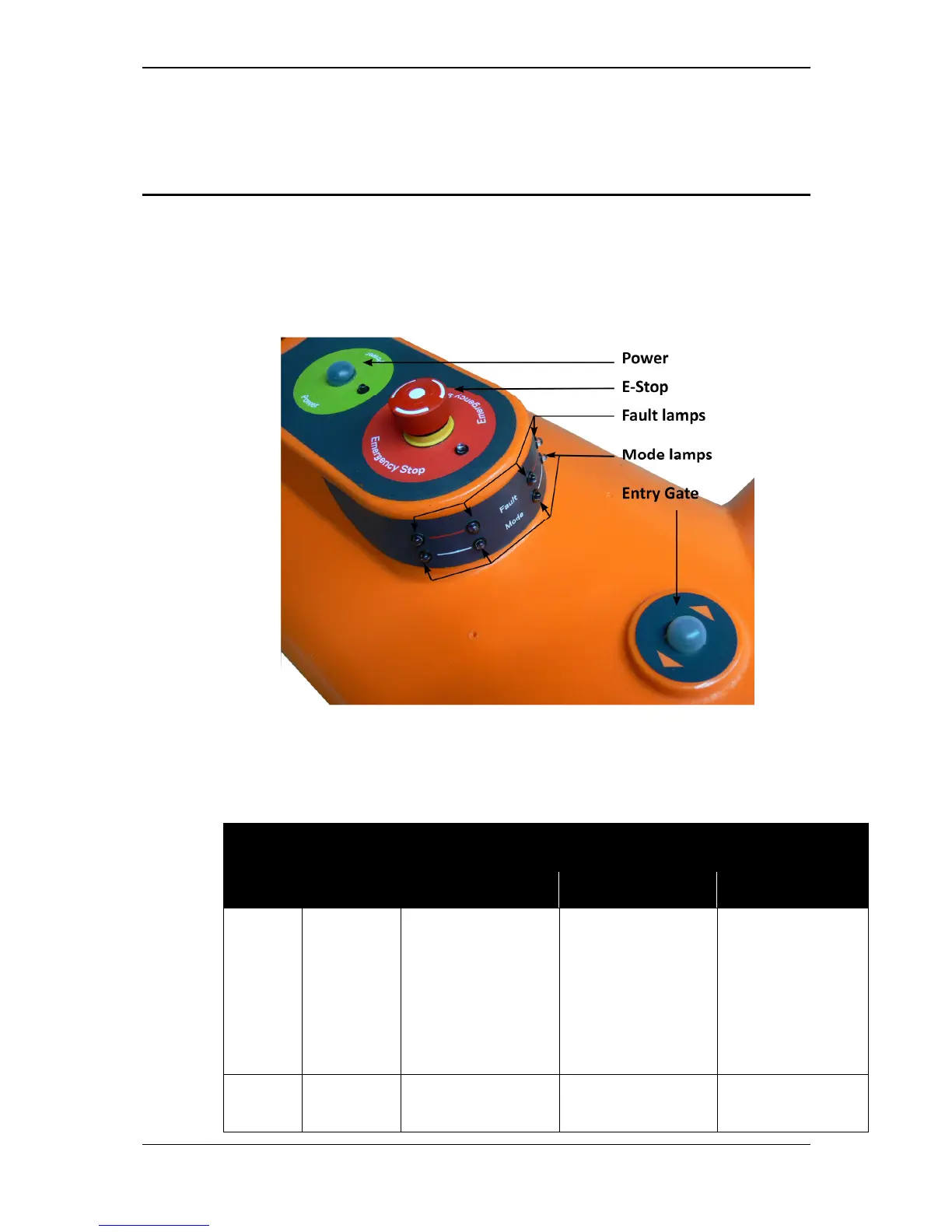

Figure 14. Position of Sheep Auto Drafter Control Bridge lamps and buttons
Table 2 describes the purpose of each lamp. Refer to the Troubleshooting (p 42)
section for the specifics of how LEDs indicate particular problems.
LED
colour
LED
position
LED state
Off Flashing On
Green
(power)
Beside
power
button on
Control
Bridge
• Sheep Auto
Drafter
switched off
• No power
supply
• Too much
power
Power supply low Sheep Auto Drafter
switched on
White
(mode)
Wrapped
around
• Sheep Auto
Drafter
Single flash
• Sheep Auto
Sheep Auto Drafter
is in Automatic
