3E2374 Sheep Auto Drafter User Manual
Page 6

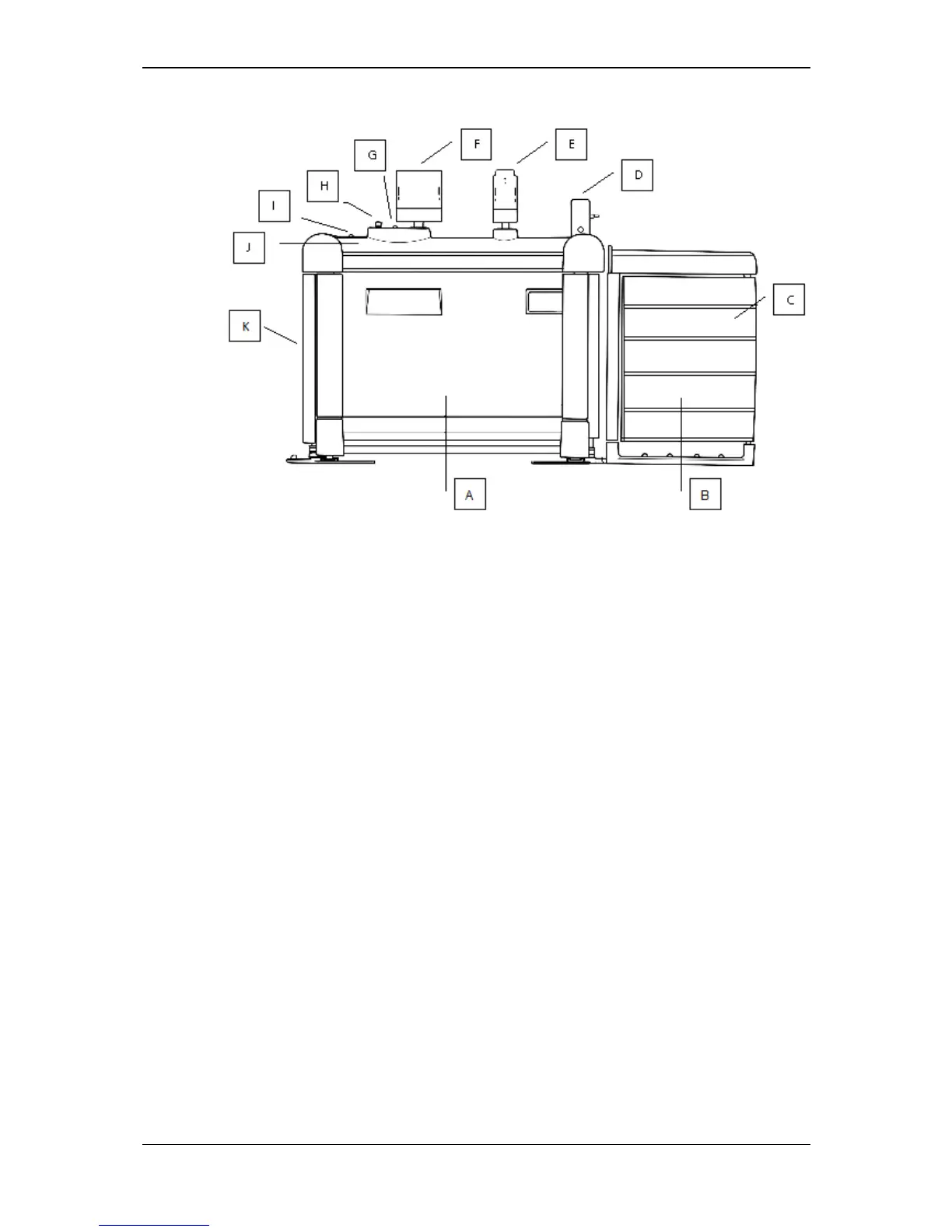

The different parts of the Sheep Auto Drafter are shown in the diagram below:
A. Sheep Auto Drafter G. power button
B. sorting unit
H. E-stop button
C. drafting gate
I. Entry Gate button
D. pressure gauge J. Control Bridge
E. RFID reader K. entry gate
F. scale indicator
Figure 1. The different components of the Sheep Auto Drafter.
