3Ennnn Gallagher T30 Reader Installation Note| DRAFT2 | July 2020
Copyright © Gallagher Group Limited Page 6
Cable distance
Cable type
Cable format*
Single terminal
connected using
HBUS data only
in a single cable
Single terminal
connected using
power and data
in a single
cable****
CAT 5e or
better**
4 twisted pair each 2 x
0.2 mm
2
(24 AWG)
500 m (1640 ft)
50 m (165 ft)
BELDEN 9842**
(shielded)
2 twisted pair each 2 x
0.2 mm
2
(24 AWG)
500 m (1640 ft)
50 m (165 ft)
SEC472
4 x 0.2 mm
2
Not
twisted pairs (24
AWG)
400 m (1310 ft)
50 m (165 ft)
SEC4142
4 x 0.4 mm
2
Not
twisted pairs (21
AWG)
400 m (1310 ft)
100 m (330 ft)
C303900/
C303901
Gallagher HBUS
Cable
2 Twisted pair each 2
x 0.4 mm
2
(21 AWG,
Data) and 2 x 0.75
mm
2
Not Twisted Pair
(~18 AWG, Power)
500 m (1640 ft)
200 m (650 ft)
* The matching of wire sizes to equivalent wire gauges are only approximate.
** Recommended cable types for optimal HBUS RS485 performance.
*** Not applicable for PIV or Bluetooth® enabled reader installations.
**** Tested with 13.6V at start of cable.
Notes:
• Shielded cable may reduce the obtainable cable length. Shielded cable should be grounded
at the Controller end only.
• If other cable types are used, operating distances and performance may be reduced
depending on the cable quality.
• The recommendation for optimal performance is up to 20 T30 Keypad Readers can be
connected to one Controller 6000. Of these 20 terminals, up to 4 could be configured for
alarm zone (or fence controller) management.
A terminal is configured for alarm zone management when it has either Alarm Zones
configured on the Alarm Zones properties page or items configured upon its mimic panel.

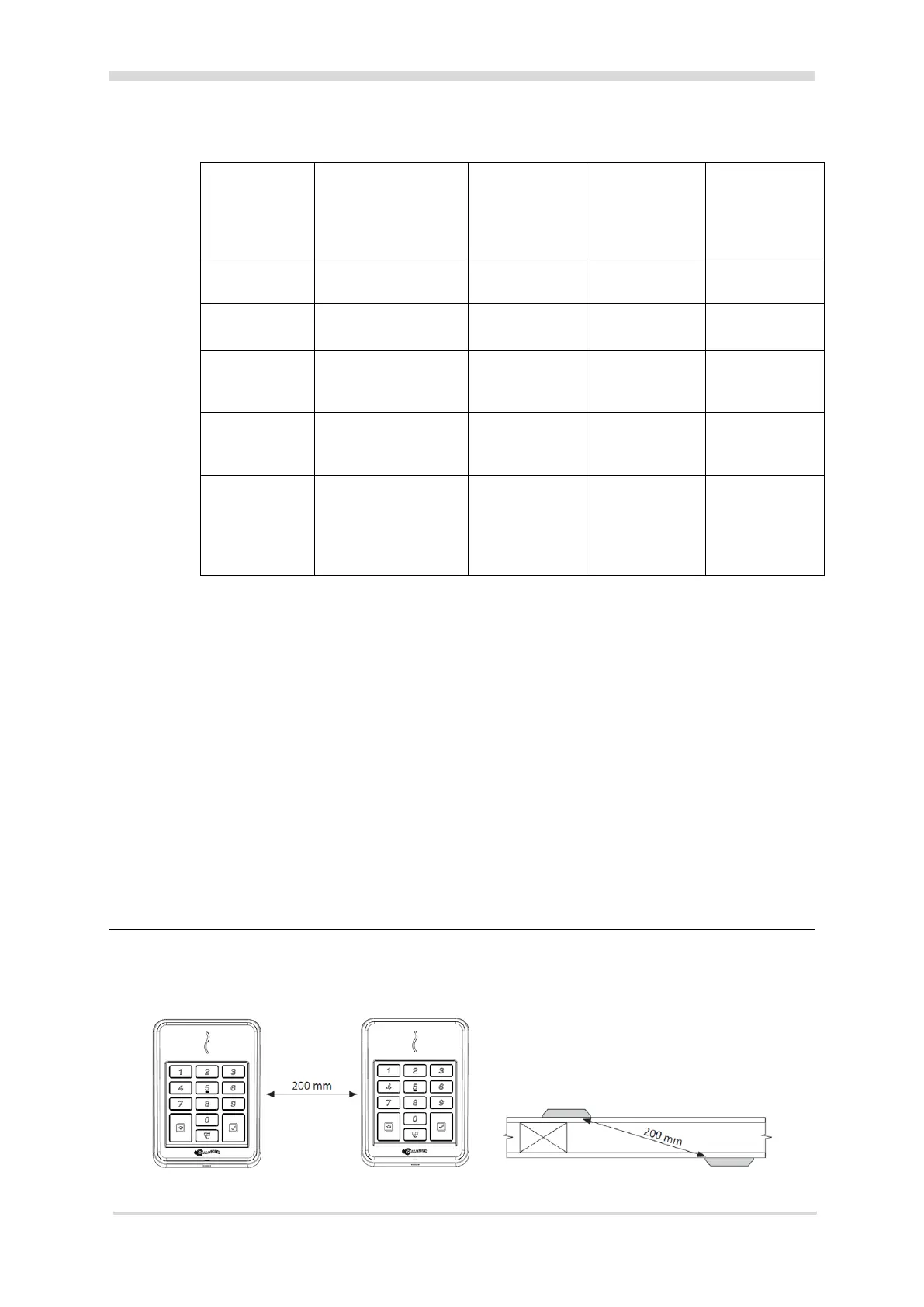

3 Distance between readers
The distance separating any two proximity readers must not be less than 200 mm (8 in) in all directions.
When mounting a proximity reader on an internal wall, check that any reader fixed to the other side of
the wall is not less than 200 mm (8 in) away.
