FC66002179 – Rev.00
30

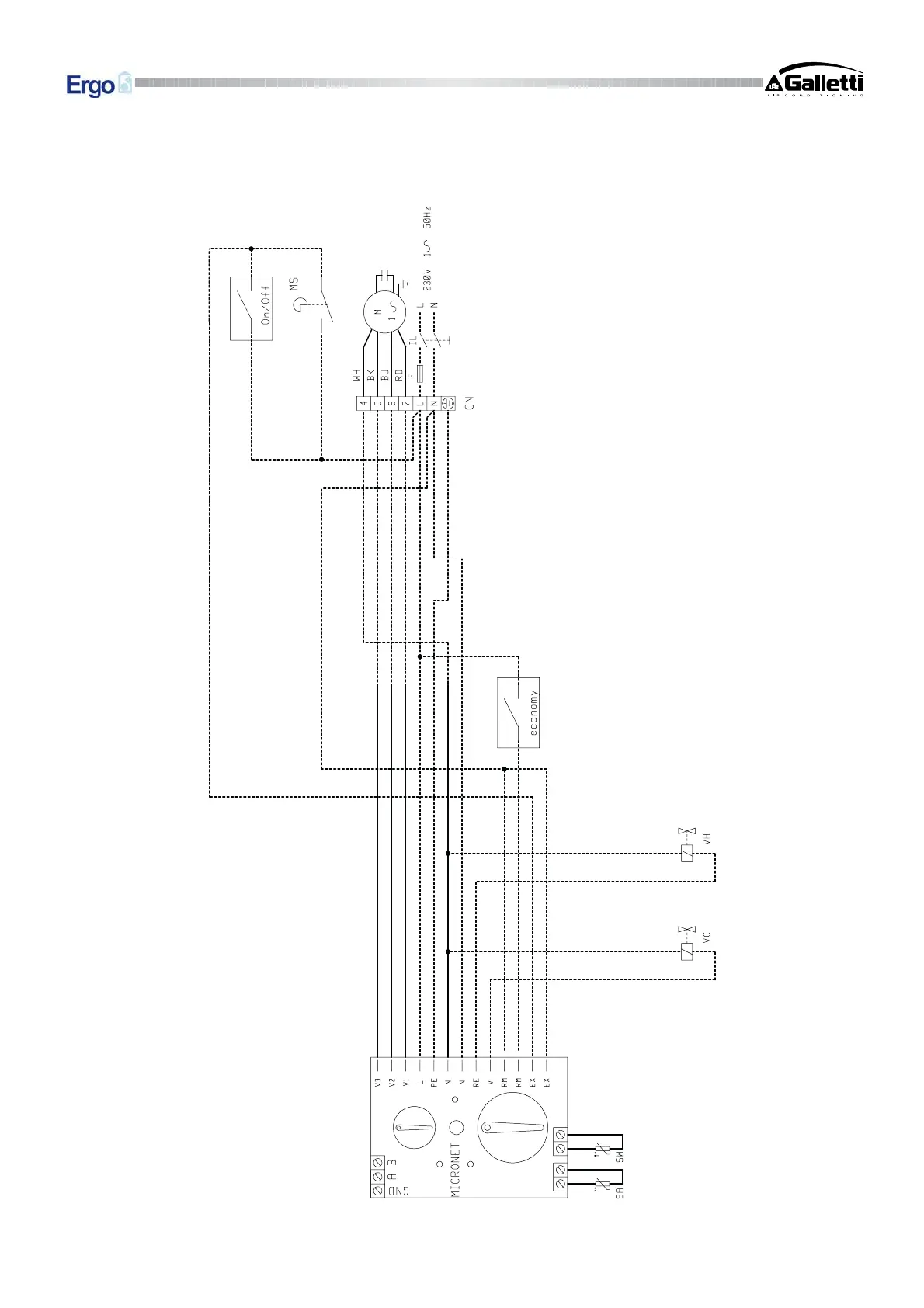

Wiring diagram for Micronet
For every fan coil unit you must provide a switch (IL) with opening contacts with a distance of at least 3mm
and a suitable fuse (F).
