E3/VS line

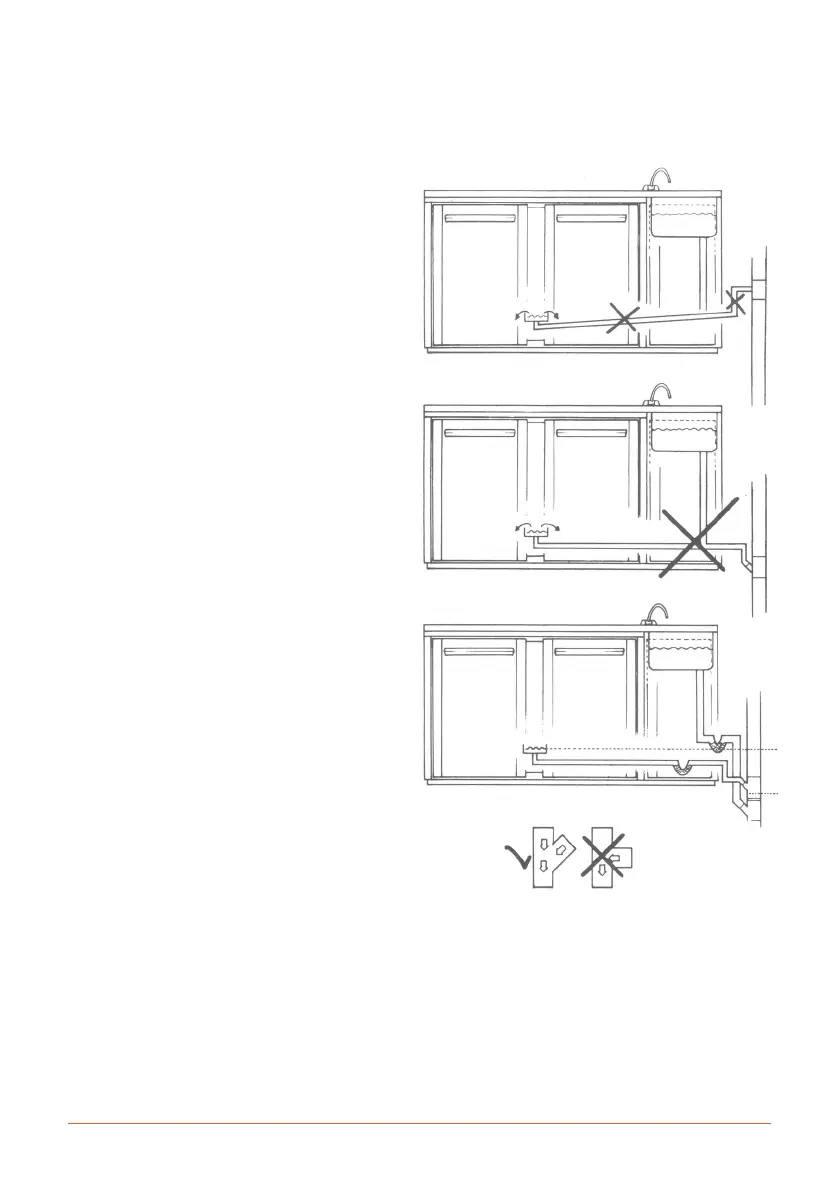

Fitting the waste pipe
• Install the cabinet following the instructions.
• Connect the waste pipe to the drains.
• Ensure that the drain pipe slopes down and
is tted lower than the evaporator drip tray in
the cabinet.
• Fit a siphon to prevent bad odours coming
into the cabinet.
• Pay attention that the siphon does not
obstruct the ow too much.
• Fit separate waste pipes for drip tray and
rinsing bowl if necessary.
• Always use T-connectors 45º.
• Always connect the overow to the drains
(in extreme circumstances it may be possible
that the evaporation capacity is not sucient).
