GARANT KOMPAKT - Fitting the Drawer Unit Shell to the Worktop; Completing the Assembly; Fitting the Accessories; Fitting the Rear Panel

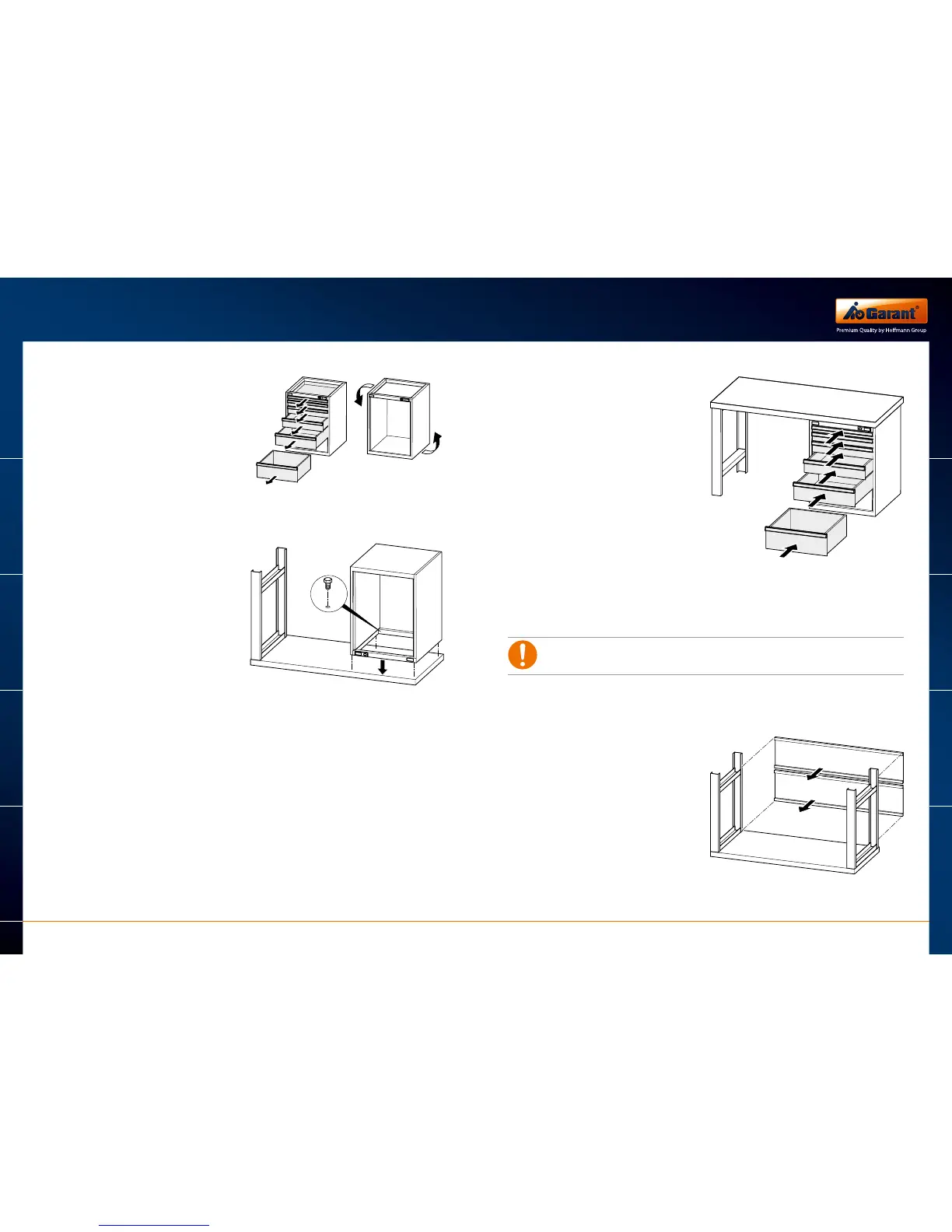

4.2.3 Fitting the drawer unit shell to the worktop
X
Take the drawers out of the
drawer unit shell. To do this,
lift the drawers twice over
the end stop.
X
Turn the drawer unit shell
over.
X
If the assembly position is non-standard:

Where necessary, mark out the non-standard holes.

Drill the holes.
X
Place the drawer unit
shell precisely over the
pre-drilled holes and screw
it on.
X
If necessary, fit the other
drawer unit shell in the
same way.
4.2.4 Completing the assembly
X
Place the workbench on its
feet, using suitable lifting
gear if necessary.
X
Slide the drawers back in
again.
X
If necessary, fit further
accessories to the
workbench.
4.3. Fitting the accessories
The following assembly is based on the example of a GARANT KOMBI
workbench.
After fitting the rear panel and the storage shelf, the screws that connect
the support legs with the worktop must then be fully tightened.
4.3.1 Fitting the rear panel
The outer faces of the support legs carry holes for securing the rear panel.
X
Turn the workbench over.
X
Position the rear panel on
the rear of the workbench
between the support legs,
and screw it on.
X
Tighten the screws on the
support legs.
