Garbin TZ S - Dimensions

TRENCHER TZ S
Use and maintenance instructions – Spare parts Via L.da Vinci,32/B
Rev. 01.2013 - EN (translation of the original instructions)
17
36034 Malo (VI) Italy
T E Z A

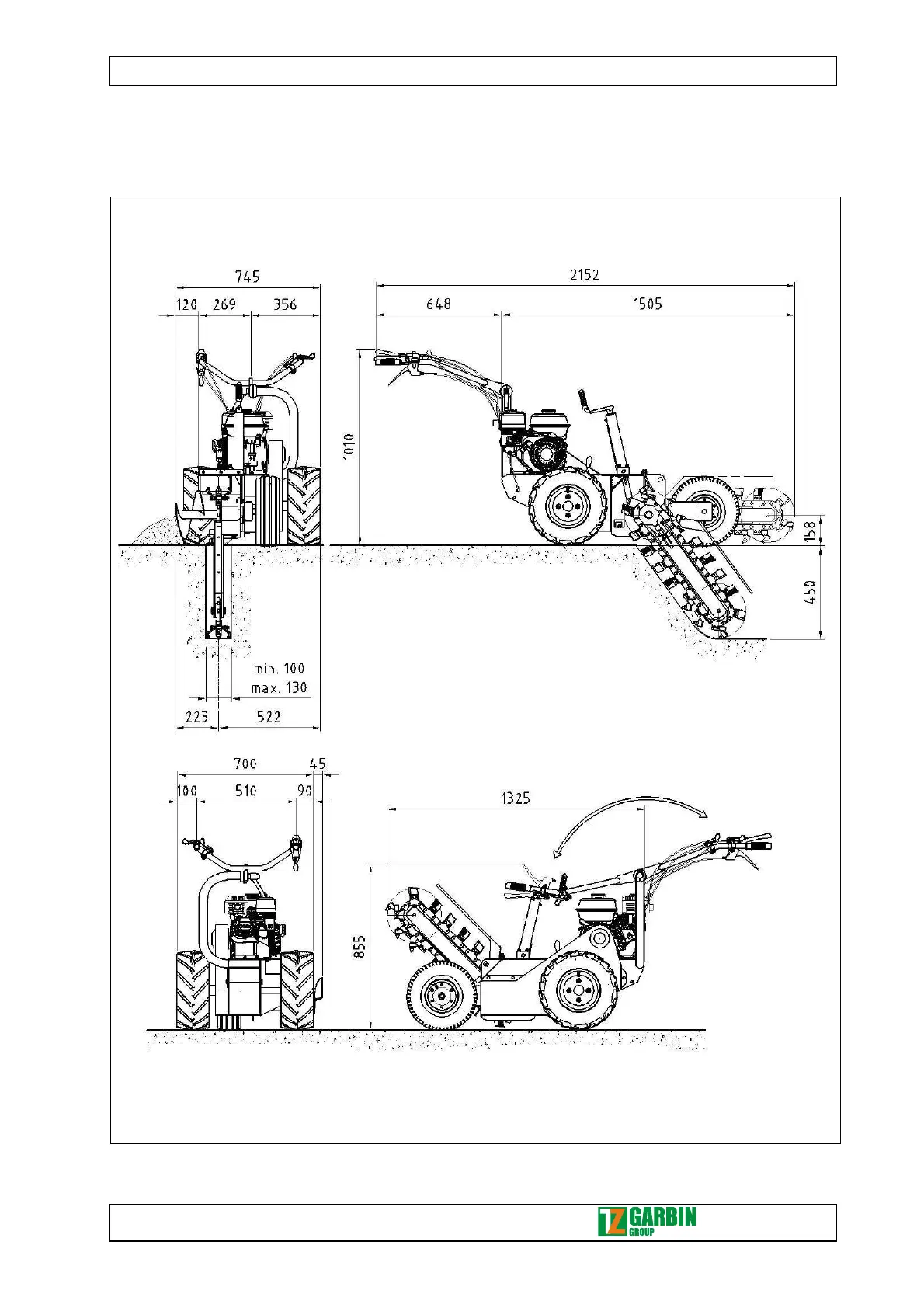

FIG. 5 (Dimensions of machine with tool)
3.4 - DIMENSIONS
FIG. 5 shows the overall dimensions of the machine and of the possible trenching depths
RH SIDE
(Dimensions: mm)
LH SIDE
REAR
