MAINTENANCE SHEET
N° 10
WORK POINT
CHECK THE TRANSMISSION BELT – CHAIN
TYPE OF OPERATION
VISUAL INSPECTION FOR WEAR AND
TIGHTNESS
AFTER THE FIRST 50 HOURS OF WORK

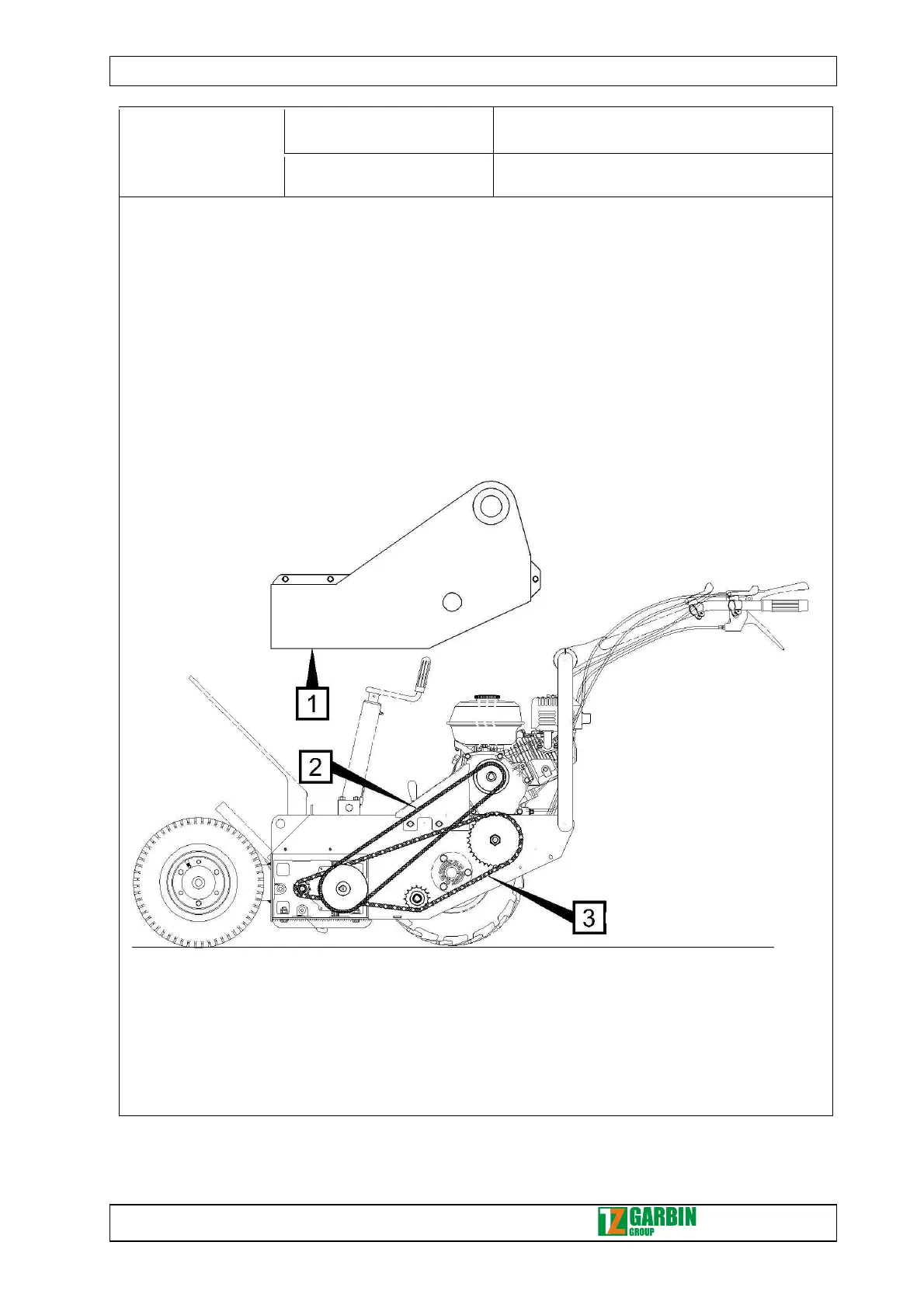

1) Remove the LH safety guard pos.1 (see Fig.3 pos. 15);
2) Check the belts (Ref.2) and chain (Ref.3) for wear;
3) Replace with original spare parts if necessary;
4) Check belt tightness. (Ref.2);
5) Check belt tightness. (Ref.3);
6) Record the operation on registration sheet N°10.
LH SIDE
