TRENCHER TZ S
Use and maintenance instructions – Spare parts Via L.da Vinci,32/B
Rev. 01.2013 - EN (translation of the original instructions)
61
36034 Malo (VI) Italy
T E Z A
MAINTENANCE SHEET
N° 11
WORK POINT
MOTOR
TYPE OF OPERATION CHANGING THE OIL
AFTER THE FIRST 50 HOURS OF WORK AND THEN AFTER EVERY 100 HOURS
1) Heat the engine for a few moments to allow the engine oil to drain more easily;
2) CONSULT THE ATTACHED HONDA ENGINE MANUAL
3) Record the operation on registration sheet N°11.

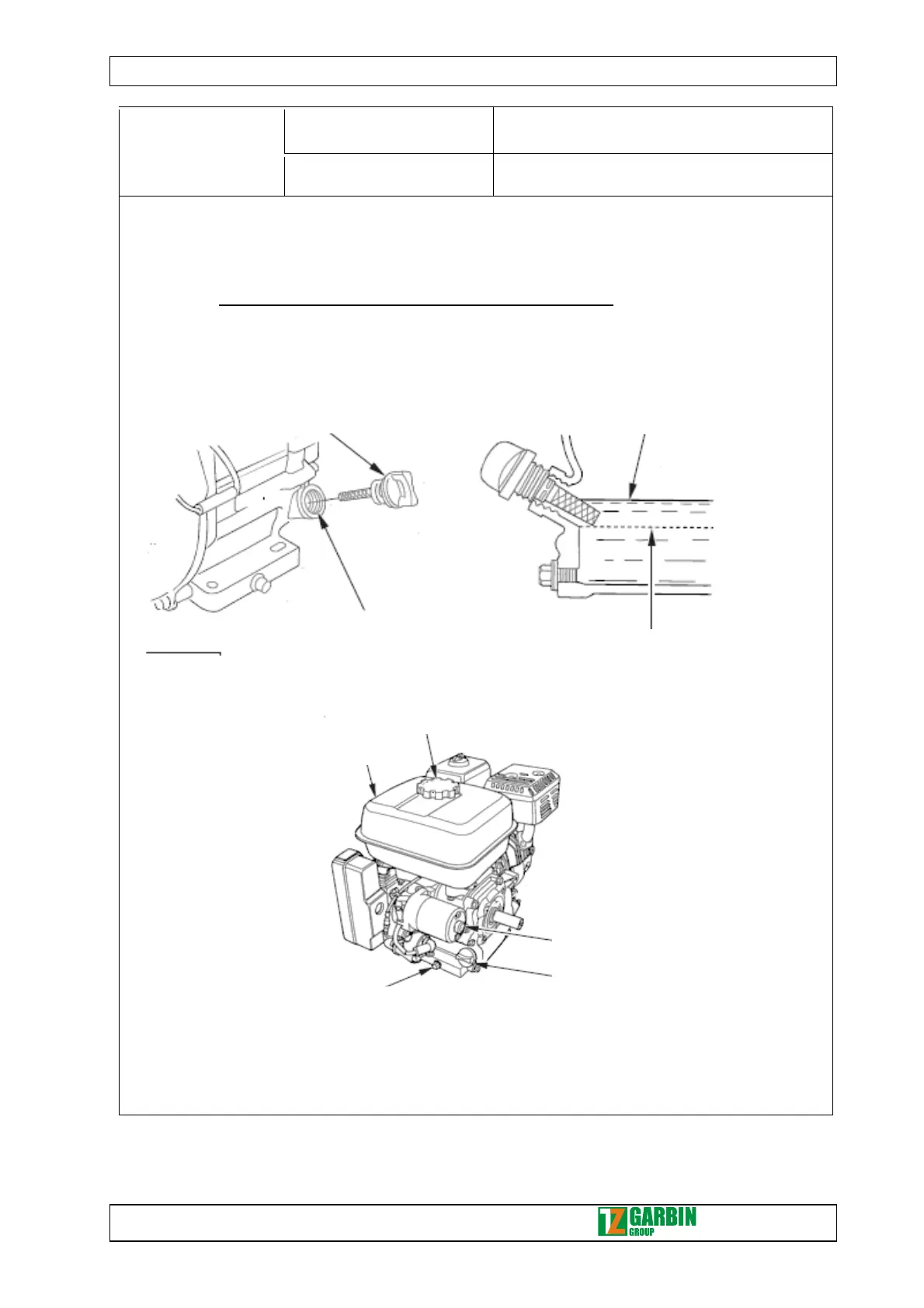

OIL CAP / LEVEL STICK
UPPER LIMIT
OIL FILLING HOLE
(lower edge)
LOWER LIMIT
FUEL FILLING HOLE
FUEL TANK
ELECTRIC STARTING
(pertinent types)
OIL CAP / LEVEL STICK
OIL DRAIN CAP
