MAINTENANCE SHEET
N° 12
WORK POINT
TRENCH JIB GEAR REDUCER
TYPE OF OPERATION CHANGING THE OIL
AFTER THE FIRST 100 HOURS OF WORK AND THEN AFTER EVERY 100 HOURS

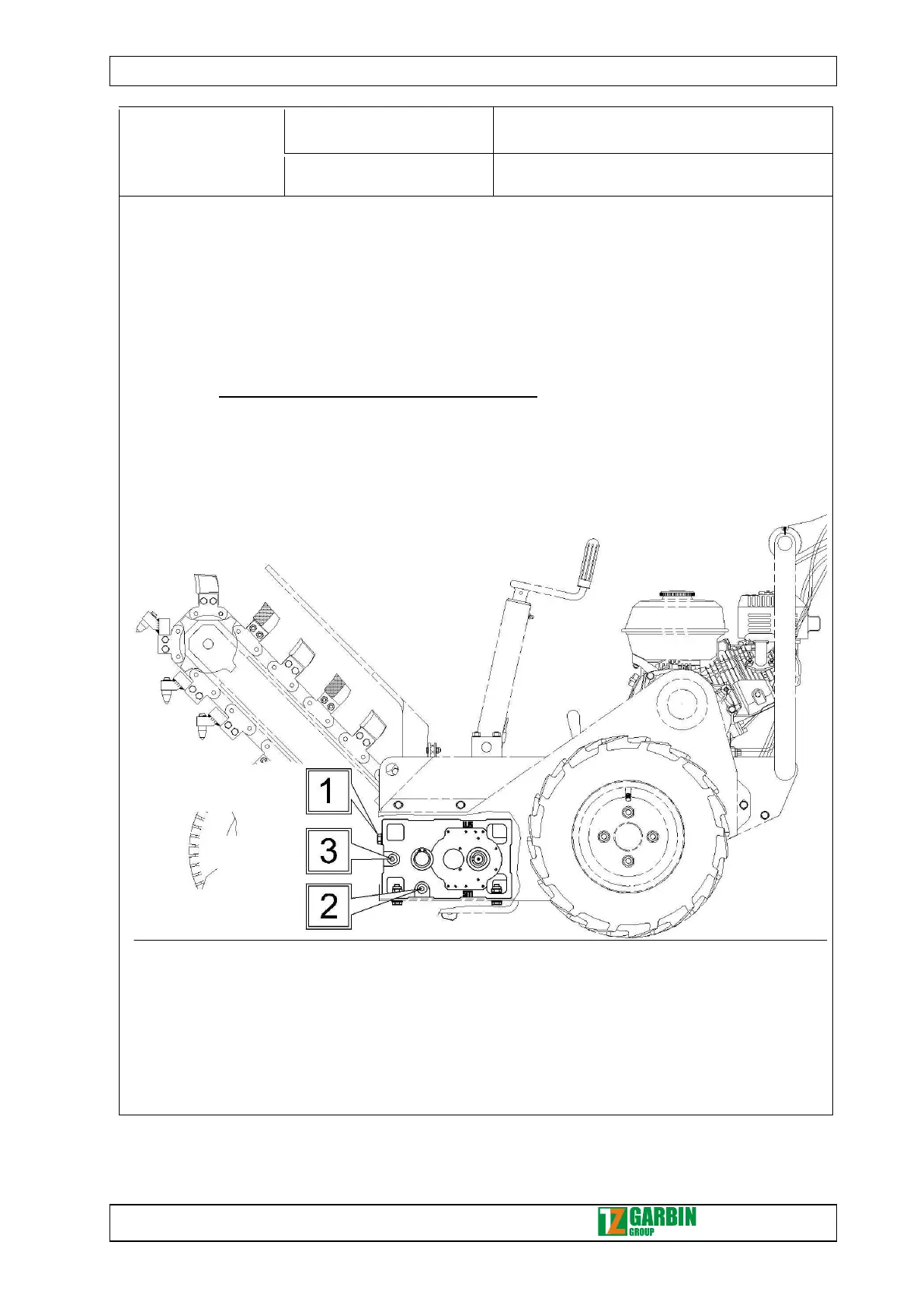

1) Place a suitable oil collector bin under the drain cap;
2) Remove the oil vent cap (Ref.1);
3) Remove the drain cap (Ref.2) and drain the used oil;
4) Put back the drain cap (Ref.2);
5) Change the oil and check the level (Ref.3);
6) Put back the oil vent cap (Ref.1);
7) CONSULT THE ATTACHED “SITI” MANUAL
8) Record the operation on registration sheet N°12.
OIL VENT
OIL LEVEL
OIL DRAIN CAP
LH SIDE
