Gardena 11000 SL automatic - Cleaning; Flushing the Pump; Clean float switch; Cleaning the suction base and impeller

15
GB

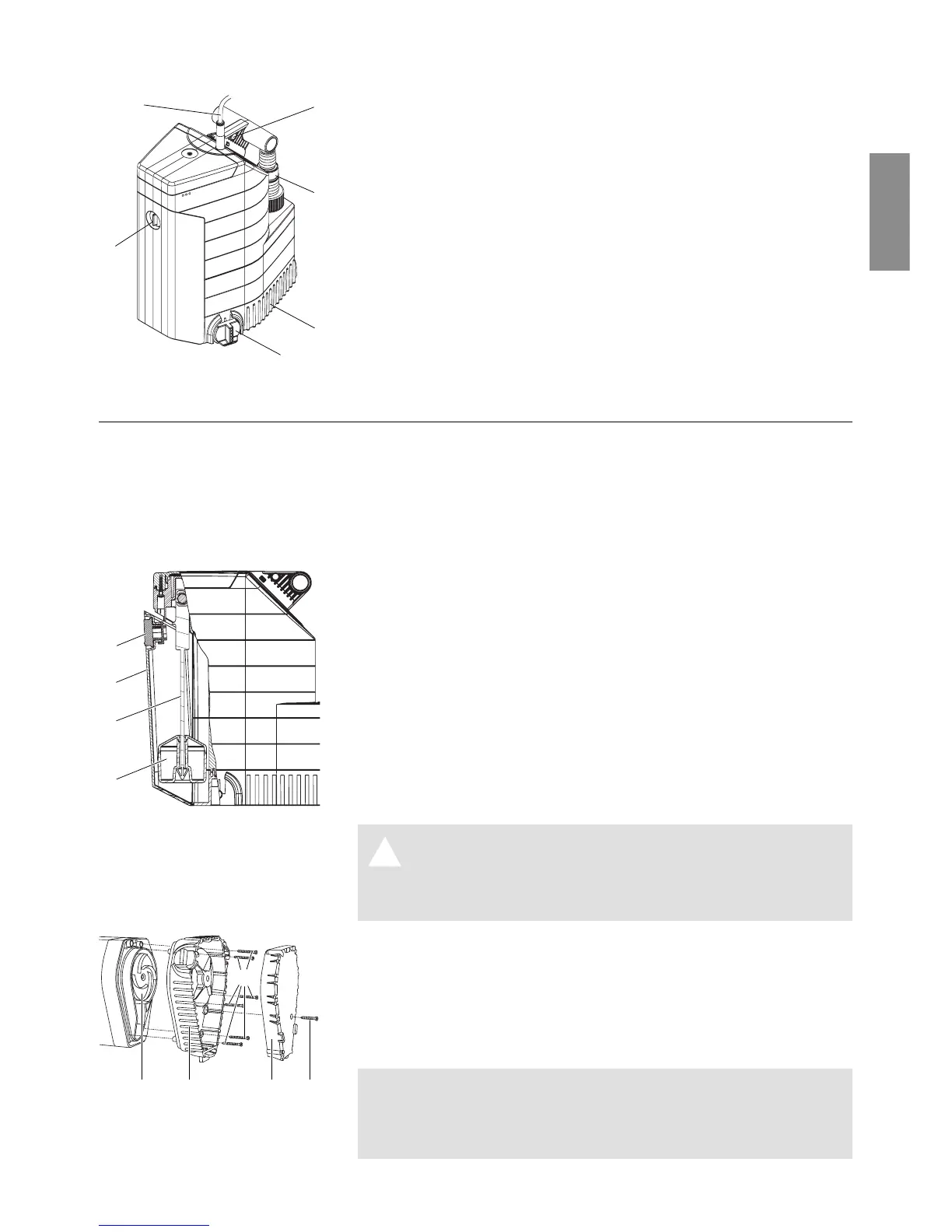

Flushing the Pump:
Clean float switch:
Cleaning the suction
base and impeller:
The pump continues to operate regardless of the water level
when in manual operation mode.
1. Turn knob
3
to MAN.
2. Stand the pump on a firm surface
– or –
use a rope attached through the bore hole in the carrying
handle
2
to immerse the pump in a well or shaft.
3. Plug the power cable
1
into a mains socket.
5. Cleaning
The pumps are virtually maintenance-free.
After having pumped chlorinated swimming pool water or other
liquids leaving residues, the pump should be rinsed with clear
water.
1. Turn knob
3
to OPEN.
2. Remove float switch cover
B
.
3. Clean float switch
5
/
5
a.
Warning! Electric shock!
A Risk of injury due to electric shock.
V Disconnect the submersible pump from the mains
before cleaning the suction base and impeller.
1. Unscrew the Phillips screw
A
and pull the suction base cover
0
off the suction base
6
.
2. Unscrew the 6 Phillips screws
8
and pull the suction base
6
off the pump.
3. Clean the suction base cover
0
, suction base
6
and impeller
9
.
4. Reinstall the suction base
6
and screw in the Phillips screws
8
.
Tip: It is often sufficient to simply remove the suction base
cover
0
and clean the suction base cover
0
and suction base
6
.
For safety reasons a damaged impeller
9
can only be ex-
changed by the GARDENA Service Centre.
Manual operation:
9 6 0 A
8
2
7
3
6
8
1
z
5a
B
3
5
