KNOW YOUR CHAIN SAW
Ignition SWITCH (14)
The Ignition switch is used to stop the engine.
THROTTLE TRIGGER (11)
The THROTTLE TRIGGER controls engine speed.
THROTTLE LOCK--OFF (2)
The THROTTLE LOCK--OFF must be pressed before
you can squeeze the throttle trigger. This feature
prevents you from accidentally squeezing the trigger.
CHOKE LEVER (10)
The choke and fast idle are set by pulling the CHOKE
LEVER out to the full extent for cold starting or after
refueling. The choke provides additional fuel to the
engine during cold starting.
CHAIN BRAKE (6)
The chain brake is a device designed to stop the
chain if kickback occurs. The chain brake activates
automatically in the event of kickback.
The chain brake activates manually if the front
hand guard is pushed forward. The chain brake is
disengaged by pulling the front hand guard back
toward the front handle as far as possible.
CHAIN TENSION
It is normal for a new chain to stretch during the first
5 minutes of operation. Ensure the engine is always
SWITCH OFF before fitting or adjusting the chain. You
should check your chain tension frequently. See CHAIN
TENSION under the ASSEMBLY section.
WARNING: Muffler is very hot during and
after use. Do not touch the muffler or allow
combustible material such as dry grass or fuel to do so.
ASSEMBLY
WARNING! Protective gloves (not provided)
should be worn during assembly. Never start the
saw before having mounted or regulated the chain.
1. MOUNTING THE GUIDE BAR AND SAW CHAIN
WARNING! If received assembled, repeat all
steps to ensure your saw is properly assembled
and all fasteners are secure. Always wear gloves when
handling the chain. The chain is sharp and can cut you
even when it is not moving!
Put the chain saw on a stable surface and carry out
the following steps for mounting the guide bar and saw
chain:

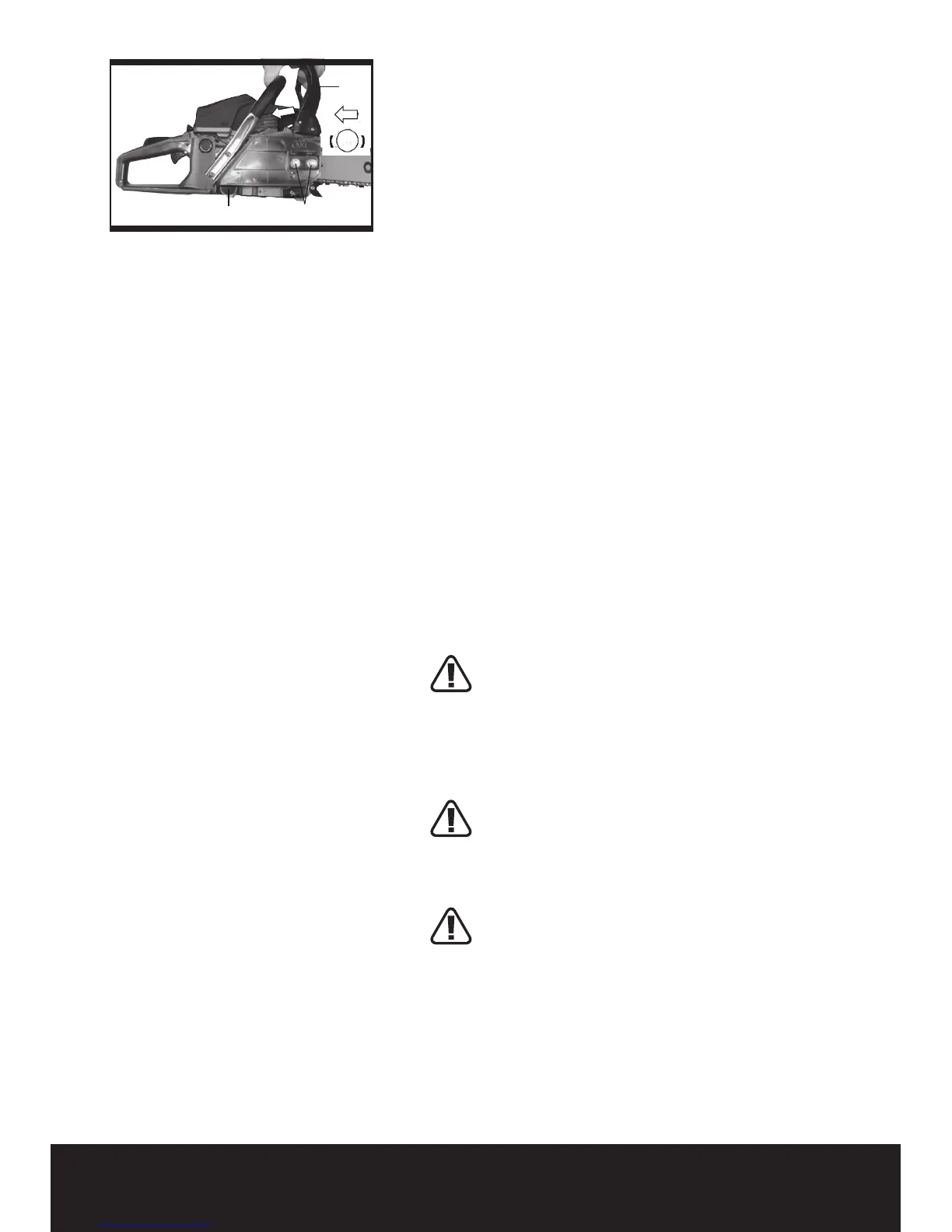

Release the chain brake (6) by pulling the hand guard in
direction of arrow. (Fig. A) Ensure the chain brake lever
Fig.A
