Gardner Denver INTEGRA EFD99B - Figure 7-1 - Belt Tension - 3 VX Belts

13-8-638 Page 39
Motor H.P. No. of Belts
Deflection
Force Pounds Deflection In Inches
40 6 6 – 8.5 3/8
50 6 6 – 8.5 3/8

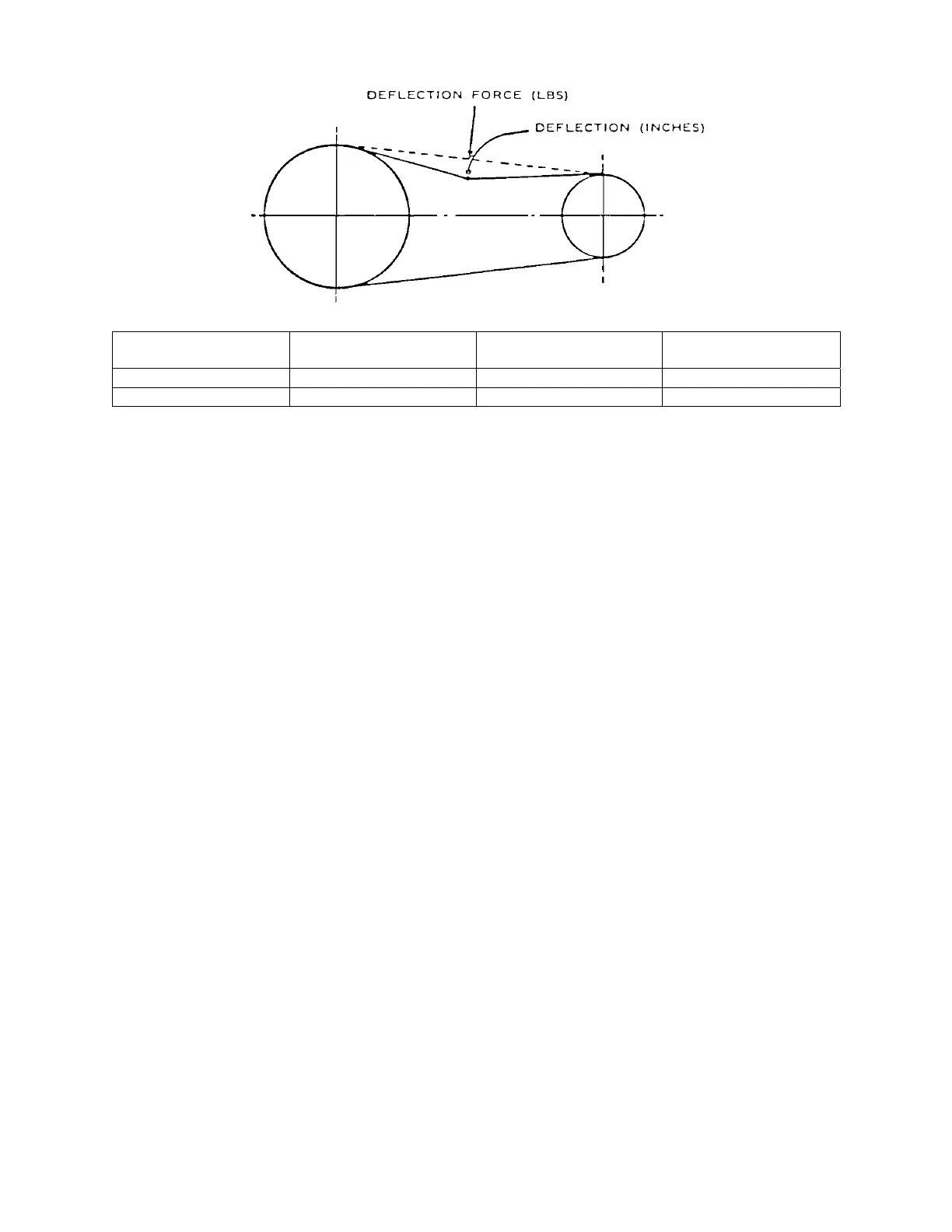

Figure 7-1 – BELT TENSION – 3VX BELTS
